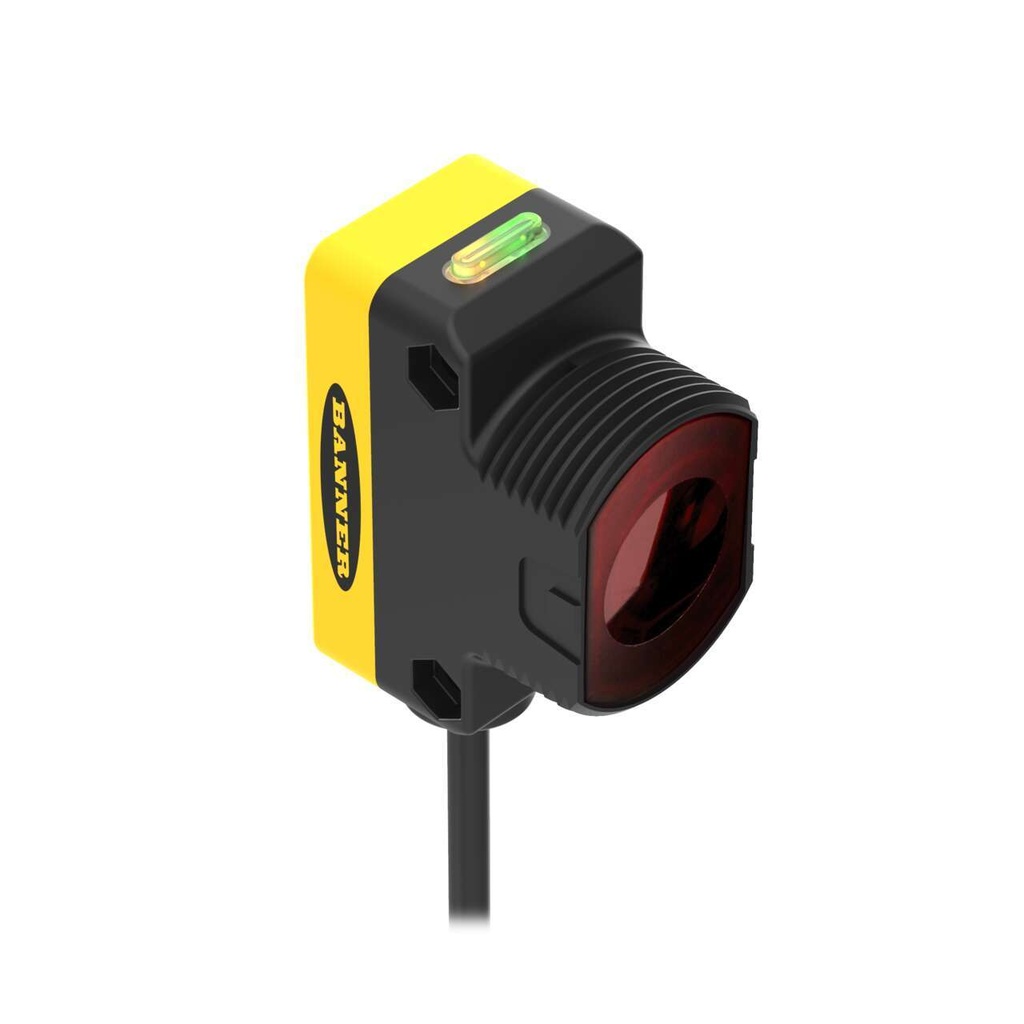

Photo sensor - emitter QS30E, 60 m, infrared, 10-30VDC, 2 m cable

QS30E is the emitter of a Banner QS30 series opposed-mode photo sensor pair. It sends an infrared 875 nm beam to a separate QS30R receiver up to 60 m away; an object is detected when it breaks the beam.

• Sensing range: 60 m with a QS30R receiver, effective beam 18 mm
• Output: none (emitter)
• Supply: 10-30 V DC, < 40 mA
• Housing: ABS, acrylic lens, M30x1.5 threaded barrel or side mounting, 3 mm hardware included
• Environment: IP67, NEMA 6, -20...+70 °C
• Connection: 2 m PVC cable

The emitter has no output and works only with a QS30R receiver, ordered separately. A green LED indicator shows power.

Vibration tested to MIL-STD-202F, method 201A; shock to IEC 60947-5-2.
