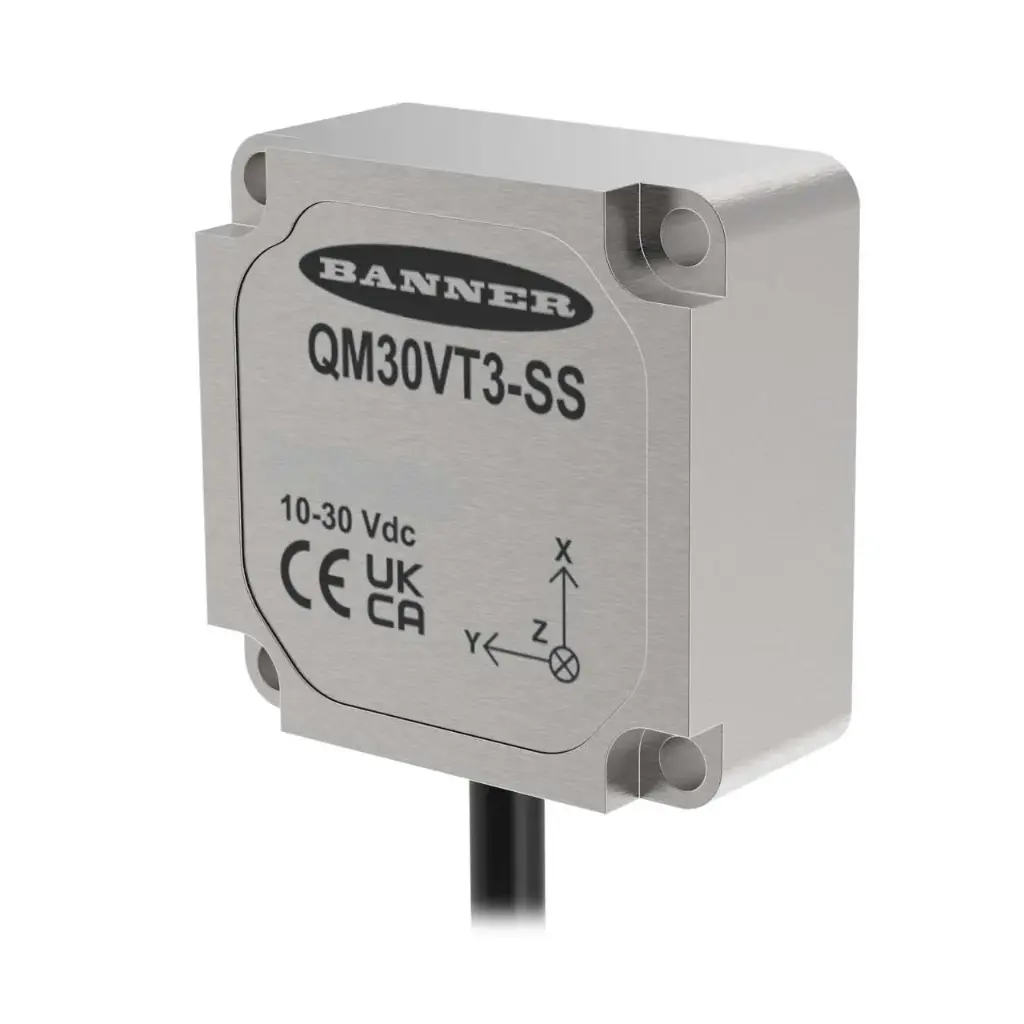

Vibration and temperature sensor QM30VT3-SS-MQP, 3-axis, Modbus RTU, stainless steel, IP69K, M12 5-pin

QM30VT3-SS-MQP is a Banner QM30VT3 3-axis vibration and temperature sensor for condition monitoring of motors, pumps, fans and other rotating machines. It works as a Modbus RTU server on RS-485 and delivers pre-processed values such as RMS velocity, high-frequency RMS acceleration and peak velocity per axis.

• Accuracy: vibration ±5 % at 25 °C; temperature ±3 °C
• Measuring range: vibration ±16 g, 0...65.5 mm/s RMS, 6 Hz...5.3 kHz; temperature -40...+105 °C, resolution 1 °C
• Output: RS-485, Modbus RTU, 9.6/19.2/38.4 kbaud
• Supply: 10...30 V DC, 9 mA at 30 V DC
• Housing: stainless steel 316L, 30 mm; mounting by M4 screw, epoxy, thermal tape or magnet
• Environment: IP69K, -40...+105 °C
• Connection: 150 mm cable with M12 5-pin male connector

High-frequency enveloping mode is available for bearing fault diagnostics, and the FMax setting (325...5300 Hz) trades bandwidth against frequency resolution. Configuration and firmware updates are done with the SNAP SIGNAL software and the BWA-UCT-900 USB adapter cable.

Shock per MIL-STD-202G, method 213B (100 g). FCC Part 15 Class B, ICES-003(B); CE and UKCA declaration of conformity.
