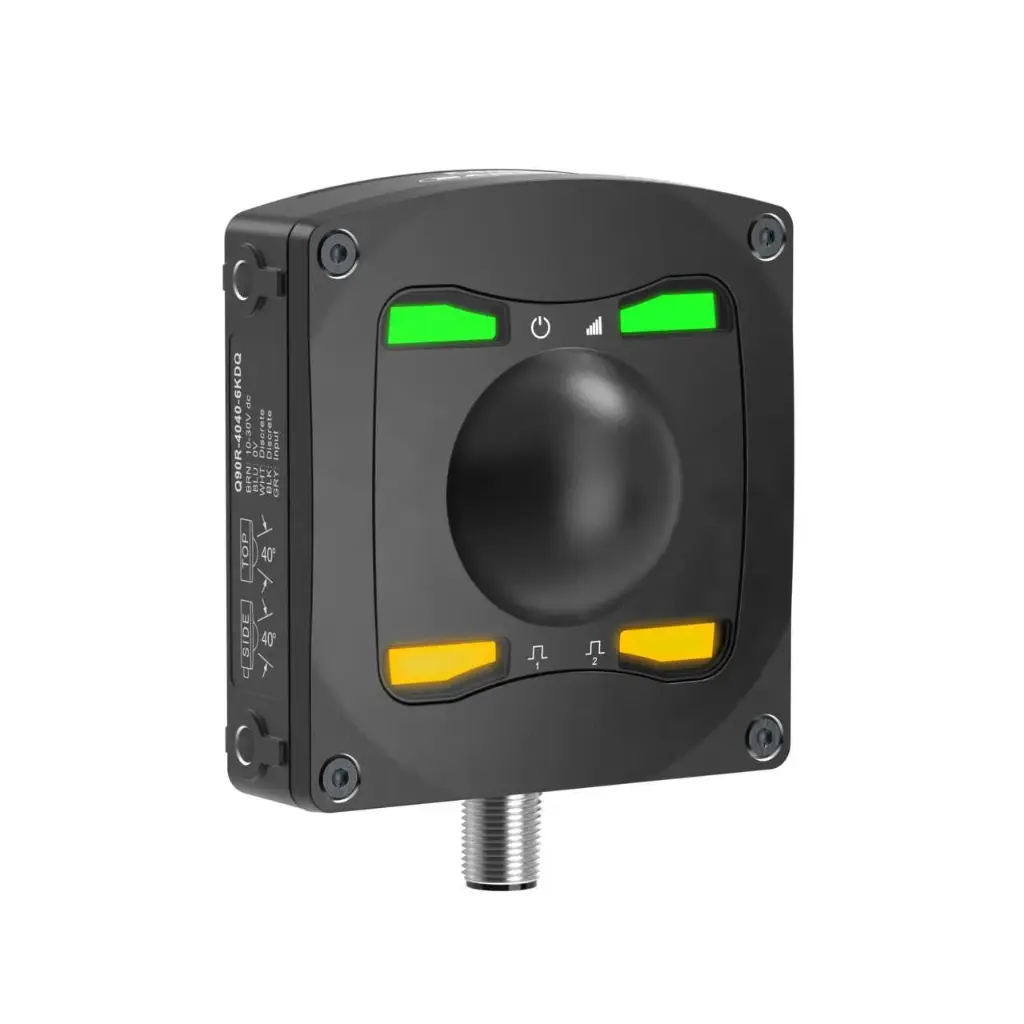

Radar sensor Q90R2-12040-6KDQ, 0.15...20 m, 2x PNP/NPN, IO-Link, 120x40°, IP69K, M12

Q90R2-12040-6KDQ is a Banner Q90R2 series 60 GHz FMCW radar sensor with a ±60° horizontal and ±20° vertical field of view. It measures distance and speed of objects up to 20 m and can be set to detect within a distance or area, ignoring everything beyond, or against a taught reference.

• Accuracy: distance linearity ±10 mm above 200 mm, repeatability 10 mm, resolution 0.2 m; velocity linearity ±0.01 m/s
• Range: 0.15...20 m; velocity up to ±9 m/s
• Outputs: output 1 IO-Link or push/pull, PNP/NPN; output 2 PNP/NPN or PFM; 50 mA each; response 50/150/250 ms
• Supply: 10...30 V DC, < 100 mA at 24 V
• Housing: aluminium, polycarbonate window
• Environment: IP67, IP69K, -40...+65 °C
• Connection: integral M12 male

Besides distance, the sensor measures target velocity. Detection is unaffected by wind, fog, steam and temperature changes and resists rain and snow. Configuration is done over IO-Link, with Banner Measurement Sensor Software or with the remote input wire.

Radio approval: US, Canada, Europe, Australia, New Zealand; ETSI EN 305 550. Impact IK08 per IEC 62262.
