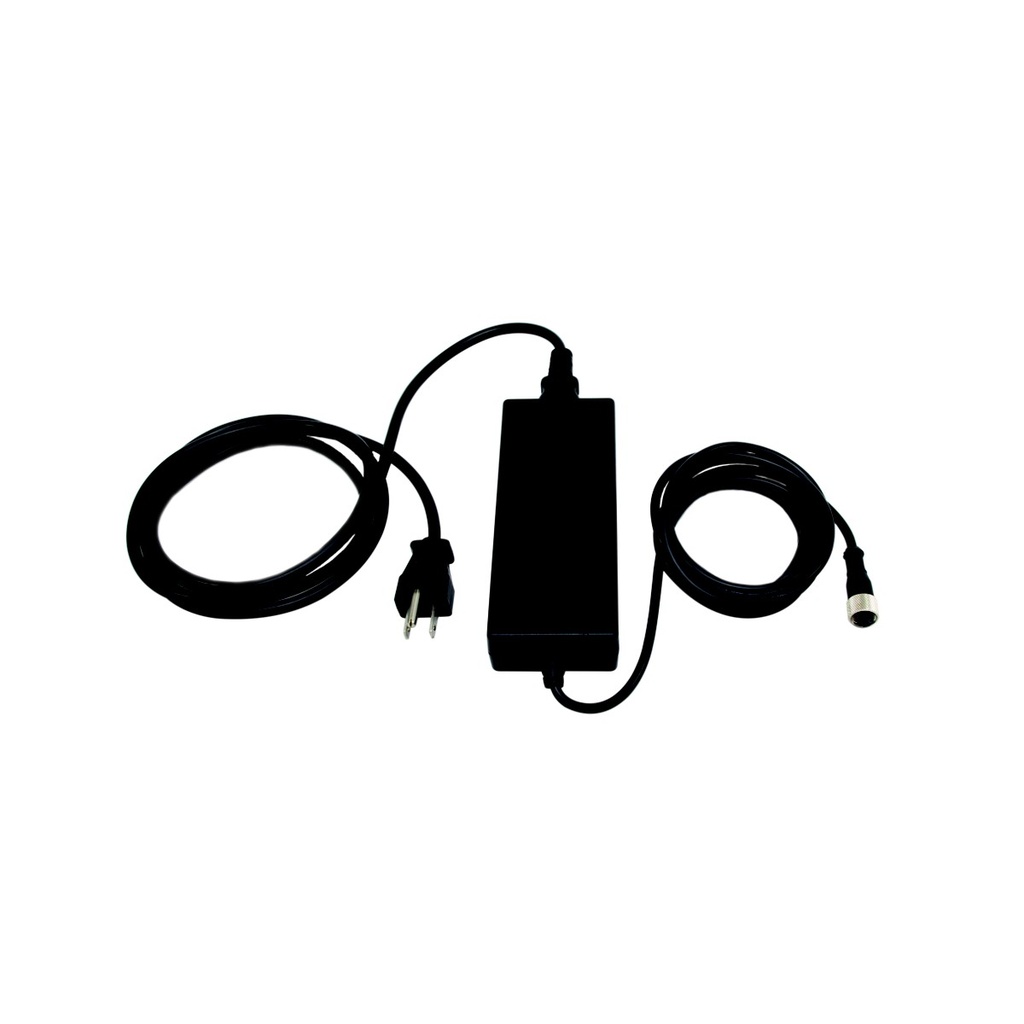

Power supply PSD-24-4, 24VDC, 3.9A, desktop, 90-264VAC, M12 output

PSD-24-4 is a Banner desktop power supply that converts mains voltage to 24 V DC on an M12 connector cable. The input cord has a US-style plug.

• Input: 90-264 V AC, 47-63 Hz
• Output: 24 V DC ±5 %, 3.9 A, 96 W; short-circuit protected
• Output connector: M12 (pin 1 V+, pin 3 V-)
• Housing: 140 x 60 x 34 mm
• Environment: IP20, 0...+40 °C, not for wet areas

UL 1310 Class 2; emissions FCC, CISPR 22 and VCCI Class B.
