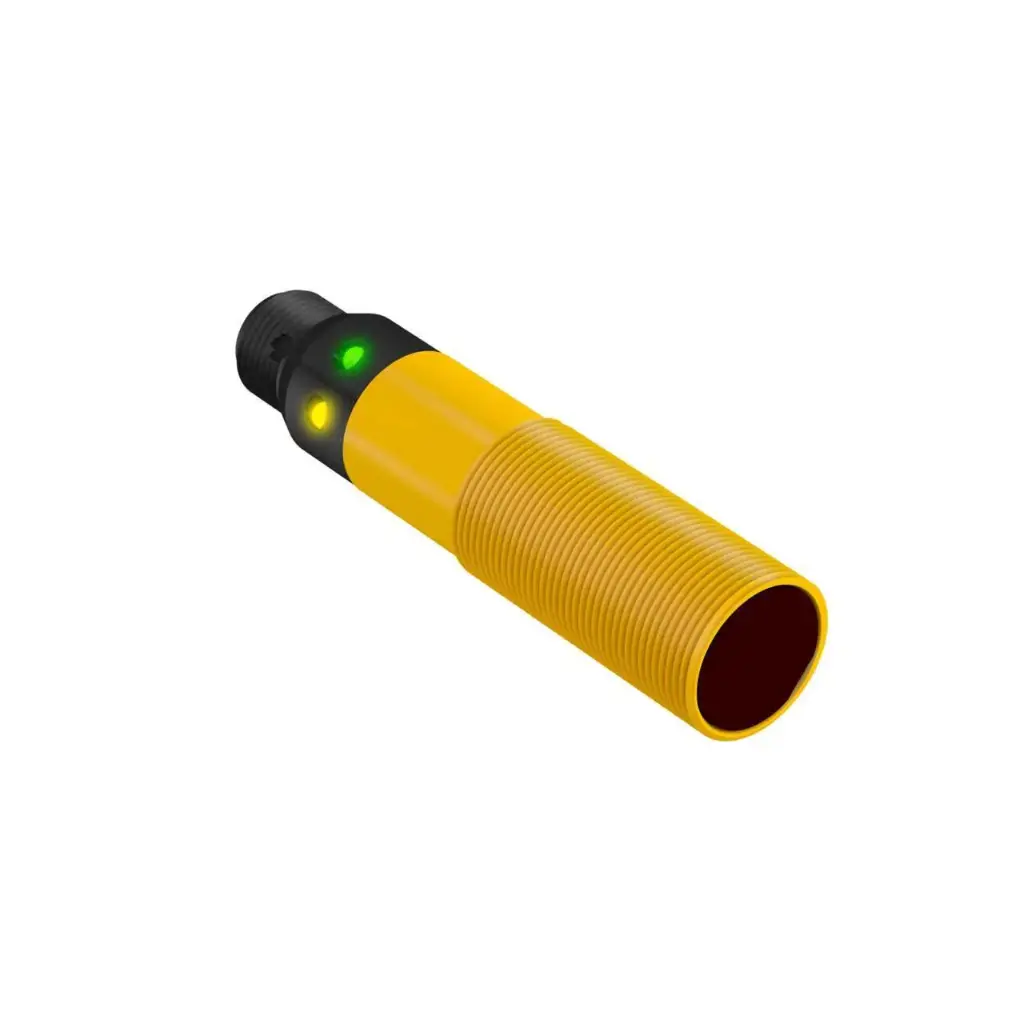

Photo sensor - emitter S186EQ, 20 m, infrared, 10-30VDC, M12 4-pin

S186EQ is the emitter of a Banner S18 series opposed-mode photo sensor pair. It sends an infrared 950 nm beam to a separate S18SP6R or S18SN6R receiver up to 20 m away; an object is detected when it breaks the beam.

• Sensing range: 20 m with an S18SP6R or S18SN6R receiver
• Output: none (emitter)
• Supply: 10-30 V DC, 25 mA
• Housing: PBT polyester, polycarbonate lens, M18x1 threaded barrel, jam nuts included
• Environment: IP67, IP69K, NEMA 6P, -40...+70 °C
• Connection: integral M12 4-pin male connector

The housing is rated IP69K when the cordset is protected from direct spray. Works with an S18 series receiver, ordered separately. A green LED shows power.

Vibration tested to MIL-STD-202F, method 201A; shock to method 213B (75 g operating).
