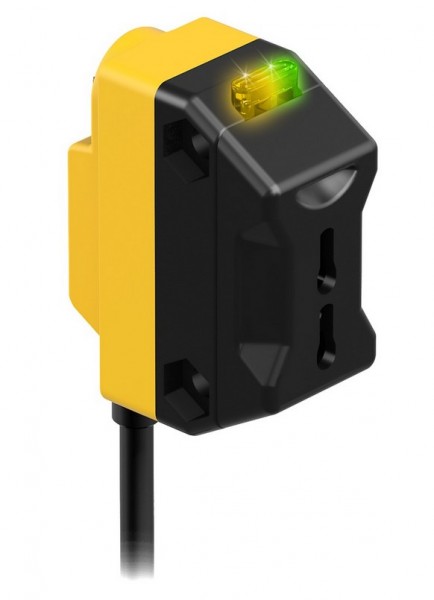

Fibre optic amplifier QS18VP6FP, plastic fibre, visible red, PNP, NO/NC, 10-30VDC, 2 m cable

QS18VP6FP is a Banner QS18 series photo sensor for plastic fibre optics, with a visible red 660 nm light source. The fibres carry the light to and from the sensing point, so the sensor body can sit away from a tight or hot spot.

• Sensing range: depends on the fibre and sensing mode
• Output: complementary PNP, Light Operate and Dark Operate, 100 mA each
• Response: 600 µs ON/OFF; repeatability 150 µs
• Supply: 10-30 V DC, < 25 mA
• Housing: ABS, side mounting, 3 mm hardware included
• Environment: IP67, -20...+70 °C
• Connection: 2 m PVC cable, 4 wires

Plastic fibre optics are ordered separately. A green LED indicator shows power; the amber one shows light sensed and flashes at marginal excess gain. Sensitivity is set with a single-turn potentiometer.

Vibration tested to MIL-STD-202F, method 201A; shock to IEC 60947-5-2.
