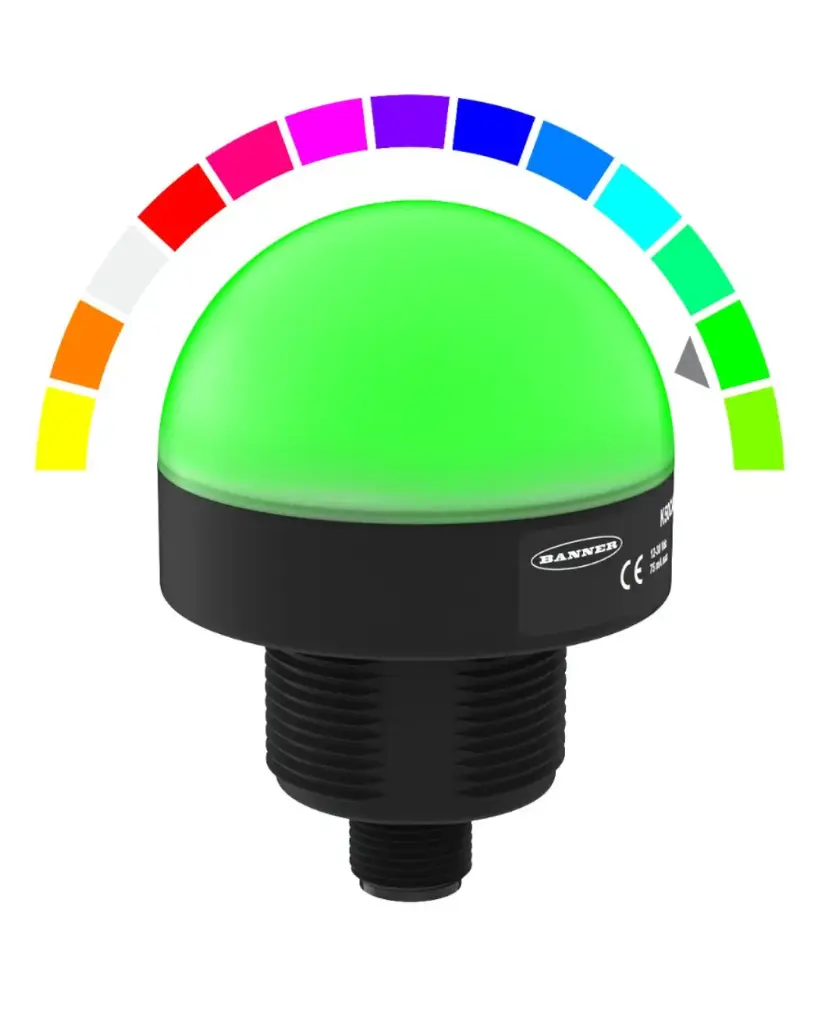

LED indicator K50PSLRGB7Q, RGB 7 colors, programmable, PNP/NPN, IP69K, M12 5-pin

K50PSLRGB7Q is a Banner K50 Pro Select series 50 mm programmable RGB dome indicator with seven default colors. Colors, animations and input logic are reprogrammed with Banner Pro Editor software.

• Colors: green, red, yellow, blue, white, cyan, magenta (default)
• Inputs: bimodal PNP/NPN; gray wire - 1.5 Hz flash; response time 250 ms
• Configuration: Pro Editor, Discrete Control (up to 15 states) and Pulse Control (up to 16 states by frequency on the white wire)
• Supply: 10...30 V DC, 220 mA at 10 V, 115 mA at 24 V
• Housing: polycarbonate, M30x1.5 threaded base, 50 x 69 mm
• Environment: IP66, IP67, IP69K, UL 4X and 13, -40...+50 °C
• Connection: integral 5-pin M12 male connector

Changing the settings requires a Pro Converter cable to connect to a PC. The Pro ID function takes the code of another K50 model and applies its colors and input logic, so one indicator can stand in for several standard K50 models.

CE and UL compliant. Vibration per IEC 60068-2-6, shock per IEC 60068-2-27 (30 G, 11 ms).
