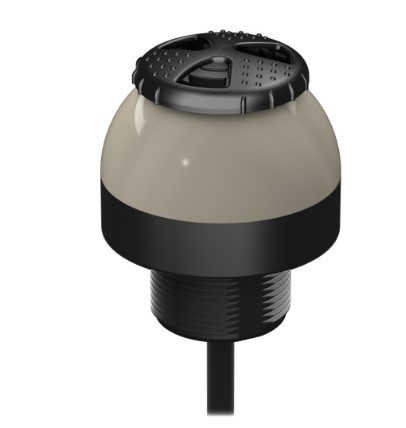

LED indicator K50LGRALSYP, green/red/yellow, loud audible, PNP, IP67, 2 m cable

K50LGRALSYP is a Banner K50L series sealed 50 mm dome indicator with three LED colors and a loud audible alarm. Each color and the audible have their own PNP input, so they can be switched independently from controller outputs.

• Colors: green, red, yellow; one color on at a time
• Audible: continuous tone 2.9 kHz, up to 94 dB at 1 m, adjustable volume
• Input: PNP, response time 1 ms (LED) and 10 ms (audible)
• Supply: 12...30 V DC, up to 35 mA per color at 30 V (65 mA at 12 V), audible 35 mA
• Housing: polycarbonate, M30x1.5 threaded base, 50 x 62 mm
• Environment: IP67, NEMA/UL 4X and 13, -20...+50 °C
• Connection: integral 2 m PVC cable, 5 wires

Volume is set by rotating the front cover, so one model suits both a quiet room and a noisy machine. The supply circuit is protected against reverse polarity and transient voltages.

CE and UL compliant. Vibration per MIL-STD-202F (Method 201A), shock per IEC 60947-5-2 (30 G, 11 ms).
