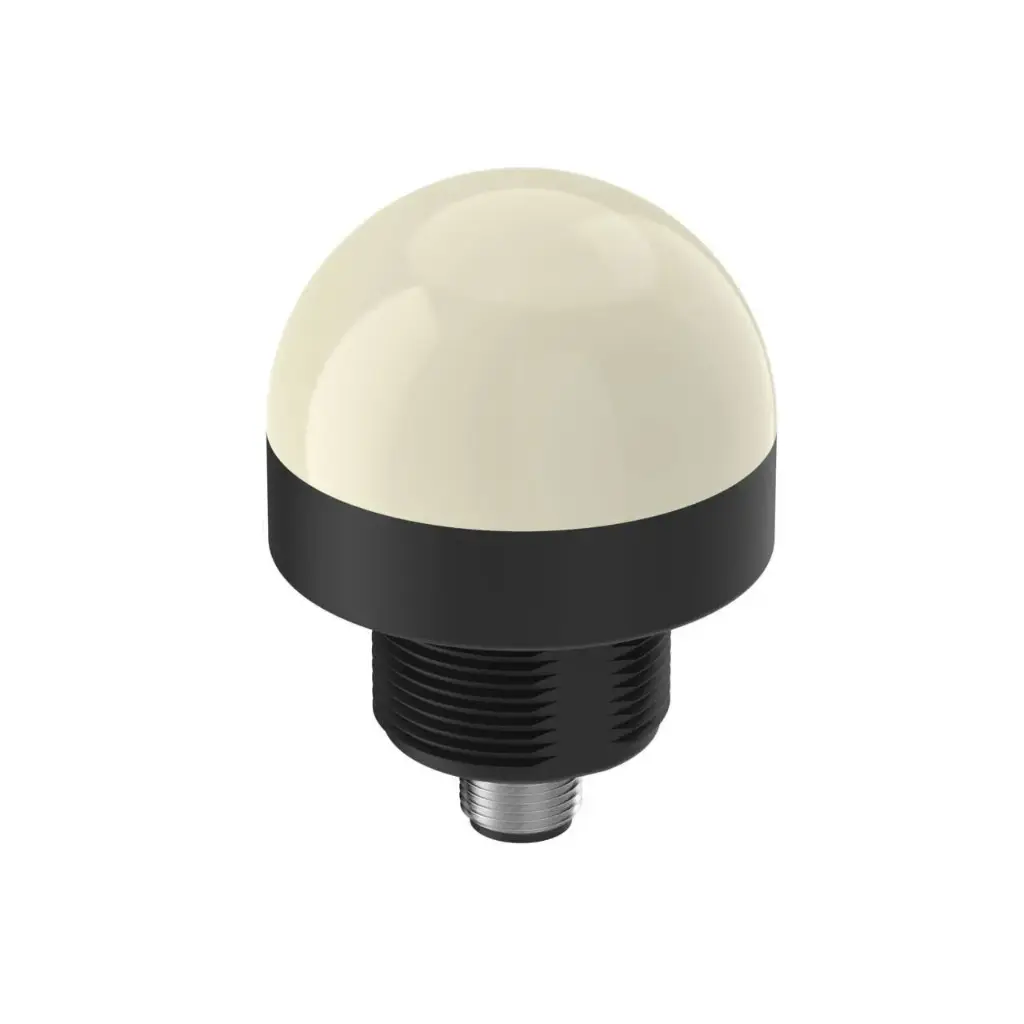

LED indicator K50L2RGBKQ, RGB, IO-Link, 18-30VDC, IP69K, M30, M12 4-pin

K50L2RGBKQ is a Banner K50 Pro series 50 mm RGB dome indicator controlled over IO-Link. Color, flashing, intensity and animations are set from the IO-Link master, so one indicator on one 4-pin cable can show many machine states.

• Colors: RGB, predefined and custom colors via IO-Link
• Animations: flashing, two-color flashing, strobe, half/half, half/half rotate
• Communication: IO-Link, input response time max. 30 ms
• Supply: 18...30 V DC, typical 115 mA at 24 V
• Housing: polycarbonate, M30x1.5 threaded base, Ø50 x 69 mm
• Environment: IP66, IP67, IP69K, UL 4X and 13, -40...+50 °C
• Connection: integral 4-pin M12 male connector

Requires an IO-Link master port; the IODD file is on the Banner website. The base is fixed with the included M30 nut, max. torque 4.5 N·m.

CE compliant. Vibration per IEC 60068-2-6, shock per IEC 60068-2-27 (30 G, 11 ms).
