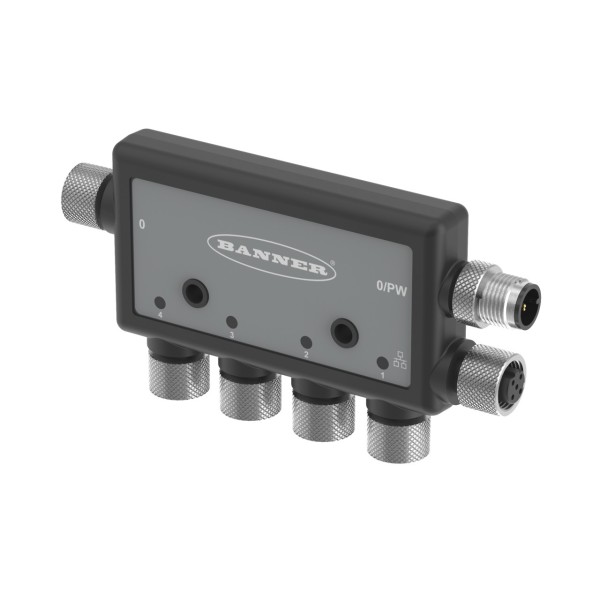

Industrial controller DXMR90-X1, 4x Modbus RTU client, Ethernet M12, 12-30VDC, IP67

DXMR90-X1 is a Banner DXMR90 series industrial controller with four independent Modbus RTU client ports and one M12 D-coded Ethernet port. It reads Modbus server devices on up to four separate networks, processes the data in the internal logic controller and passes it to EtherNet/IP, Modbus TCP or PROFINET.

• Ports: 4x Modbus RTU client (M12 female), Port 0 male and female for power and Modbus trunk pass-through
• Communication: 1x Ethernet 100 Mbps (M12 D-coded); Modbus TCP, EtherNet/IP, PROFINET
• RS-485: 2-wire half-duplex, 1.2...115.2 kbit/s, default 19.2 kbit/s
• Configuration: action rules, ScriptBasic and MicroPython; DXM Configuration Software v4
• Supply: 12...30 VDC, max. 120 mA at 12 VDC; total current through the ports max. 3.5 A
• Environment: IP65, IP67, indoor use, -40...+70 °C

Up to four Modbus server devices can be connected without assigning server addresses by hand, one per port. The default static IP address is 192.168.0.1. Modbus devices connect with M12 cordsets ordered separately.

Vibration per IEC 60068-2-6, shock per IEC 60068-2-27 (30 G, 11 ms).
