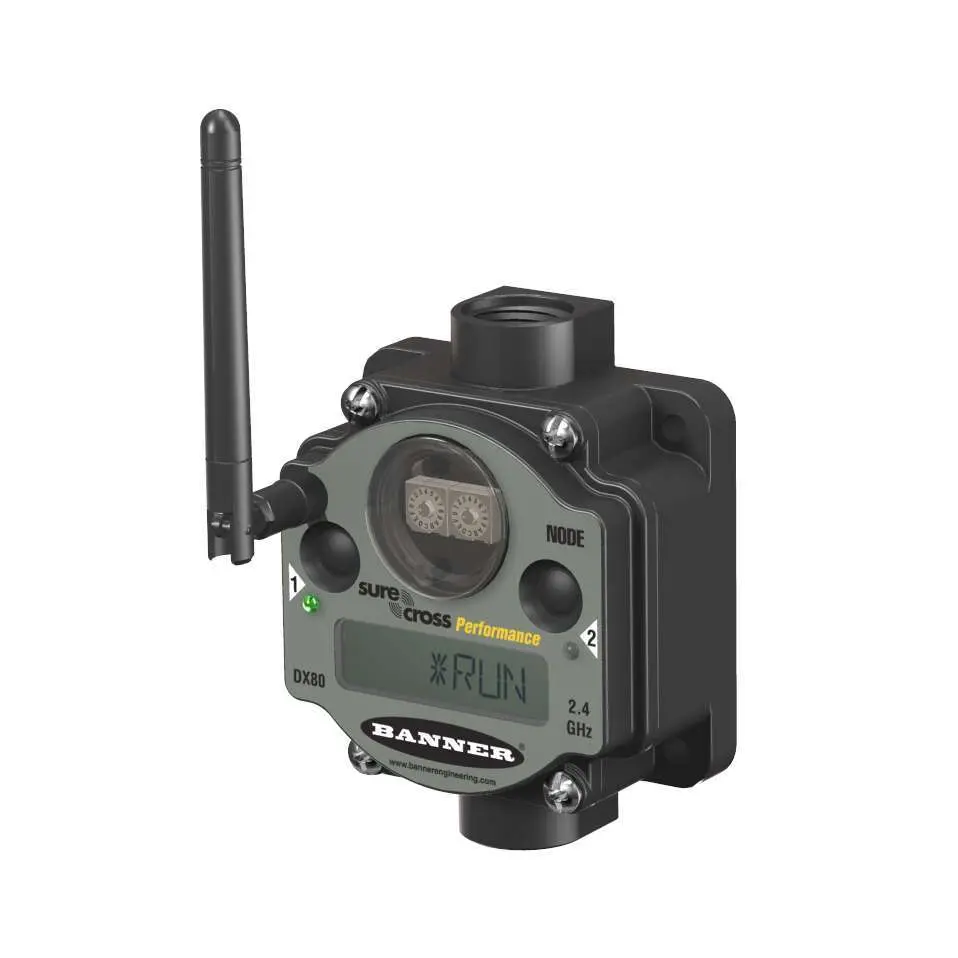

Wireless I/O node DX80N2X6S-PM2, 2.4 GHz, 4 DI/4 DO, 2 AI/2 AO 0-20 mA, IP67

DX80N2X6S-PM2 is the node of a Banner Sure Cross Performance PM2 pair, with four discrete and two 0-20 mA analog channels in each direction. Its I/O mapping to the PM2 gateway is selected in the gateway's LCD menu.

• Inputs and outputs: 4 discrete inputs, NPN/PNP selectable, 3 mA at 30 V DC; 4 PNP discrete outputs, 100 mA; 2 analog inputs 0-20 mA, 12-bit, ±0.2 % FS; 2 analog outputs 0-20 mA, 12-bit, ±0.1 % FS
• Radio: 2.4 GHz FHSS, 65 mW conducted, EIRP < 100 mW with the supplied antenna, RP-SMA antenna connector
• Configuration: DIP switches for NPN/PNP input type, mapping from the gateway menu
• Supply: 10...30 V DC (outside the USA 12...24 V DC ±10 %)
• Housing: polycarbonate, two 1/2" NPT cable entries, two buttons, 6-character LCD, 0.26 kg
• Environment: IP67, NEMA 6; -40...+85 °C (LCD -20...+80 °C), 95 % RH non-condensing

The node works only paired with a 2.4 GHz PM2 gateway, ordered separately. Discrete inputs report on change of state; analog inputs report every second or on a 1 % change.

CE and UKCA (2.4 GHz models), RED 2014/53/EU; FCC ID UE3SX243, IC 7044A-SX243.
