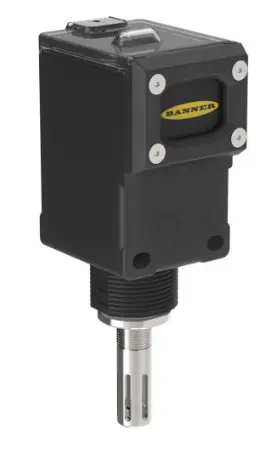

Temperature and humidity sensor DX80N2Q45THA NB, wireless 2.4 GHz, -40...+85°C, 0-100 % RH, IP67, without battery

DX80N2Q45THA NB is a Banner Sure Cross Q45 wireless node with a built-in temperature and relative humidity sensor, powered by its own lithium AA cells. It sends relative humidity, °C and °F to a DXM controller or DX80 Performance gateway, so no sensor or supply cable runs to the measuring point.

• Accuracy: temperature ±0.4 °C (0...+60 °C), ±0.6 °C (-40...0 °C), ±1.2 °C (+60...+85 °C); humidity ±2 % RH at 25 °C, ±3 % RH (0...70 °C, 10...90 % RH), ±7 % RH (0...70 °C, 0...10 % or 90...100 % RH)
• Measuring range: -40...+85 °C, 0...100 % RH; resolution 0.1 °C and 0.1 % RH
• Outputs: 2.4 GHz FHSS radio; registers 1-3 hold RH, °C and °F; default sensing interval 5 min
• Supply: 3.6 V lithium AA cells, not included (NB model)
• Housing: reinforced thermoplastic polyester, transparent Lexan cover, stainless steel hardware
• Environment: IP67, NEMA 6P; -40...+70 °C, 90 % RH at +50 °C non-condensing

Typical positions are refrigerators and chillers, warehouses, storage rooms, cleanrooms and incubators. The temperature is the register value divided by 20; humidity needs no scaling.

CE and UKCA (2.4 GHz models), RED 2014/53/EU; FCC ID UE3SX243, IC 7044A-SX243.
