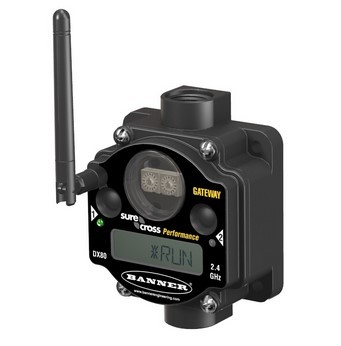

Wireless gateway DX80G2M6S-PM2, 2.4 GHz, 4 DI/4 DO, 2 AI/2 AO 0-20 mA, Modbus RTU, IP67

DX80G2M6S-PM2 is the gateway of a Banner Sure Cross Performance PM2 pair, with four discrete and two 0-20 mA analog channels in each direction. The I/O mapping to the PM2 node is selected in its LCD menu, and an RS-485 port gives Modbus RTU access.

• Inputs and outputs: 4 discrete inputs, NPN/PNP selectable, 3 mA at 30 V DC; 4 PNP discrete outputs, 100 mA; 2 analog inputs 0-20 mA, 12-bit, ±0.2 % FS; 2 analog outputs 0-20 mA, 12-bit, ±0.1 % FS
• Radio: 2.4 GHz FHSS, 65 mW conducted, EIRP < 100 mW with the supplied antenna, RP-SMA antenna connector
• Communication: RS-485 2-wire half duplex, Modbus RTU, 9.6k, 19.2k (default) or 38.4k baud
• Supply: 10...30 V DC (outside the USA 12...24 V DC ±10 %)
• Housing: polycarbonate, two 1/2" NPT cable entries, two buttons, 6-character LCD, 0.26 kg
• Environment: IP67, NEMA 6; -40...+85 °C (LCD -20...+80 °C), 95 % RH non-condensing

The gateway works paired with a 2.4 GHz PM2 node, ordered separately; it ships with a 2 dBd omni antenna. On link loss the discrete outputs switch OFF.

CE and UKCA (2.4 GHz models), RED 2014/53/EU; FCC ID UE3SX243, IC 7044A-SX243.
