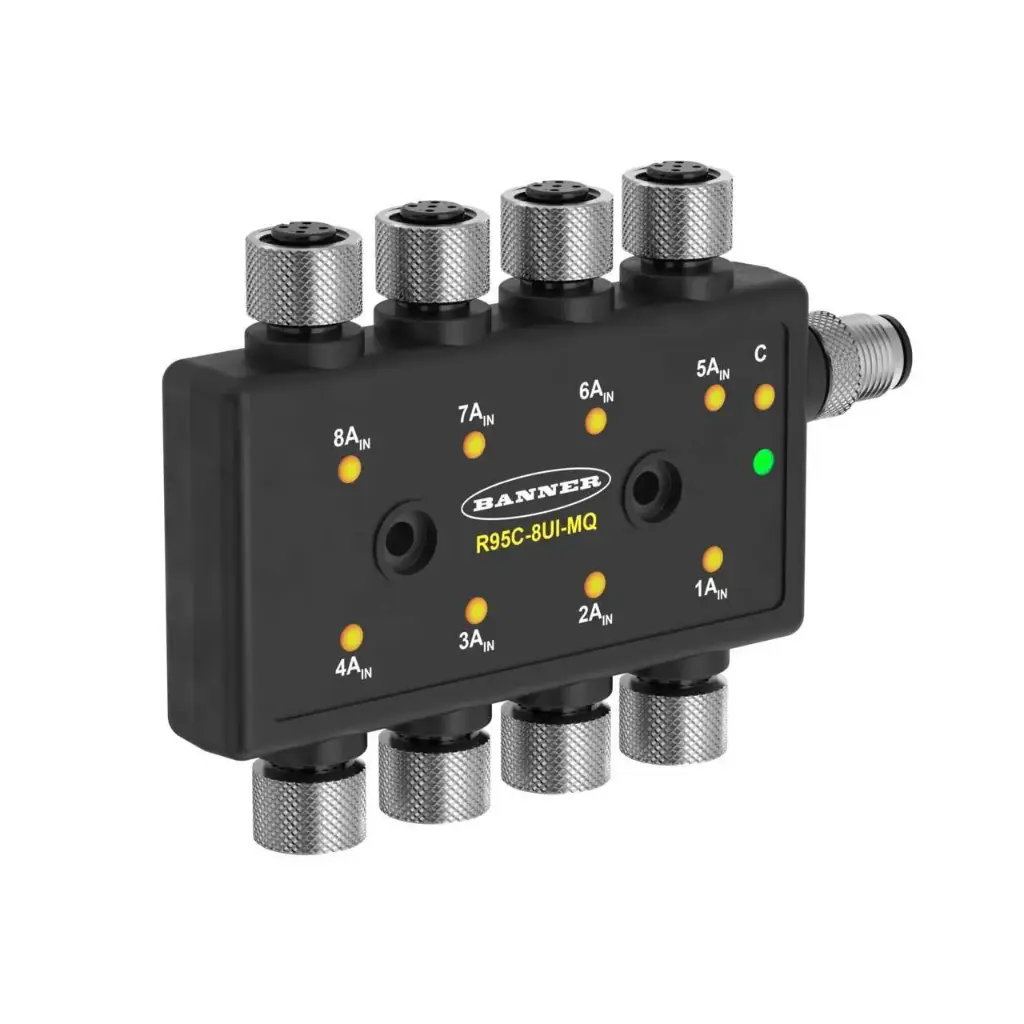

I/O Hub R95C-8UI-MQ, 8-port analog in, Modbus RTU, 12-30VDC, M12

R95C-8UI-MQ is a Banner R95C series Modbus hub with eight M12 ports for analog voltage or current inputs. Each measured value is placed in its own Modbus register and read over RS-485.

• Inputs: 8 ports, analog voltage 0...11000 mV or current 0...24000 µA; impedance approx. 14.3 kΩ (voltage) or 250 Ω (current)
• Communication: Modbus RTU server, RS-485, default 19.2 kbit/s
• Supply: 12...30 VDC, max. 400 mA; pass-through current max. 500 mA per port
• Housing: over-moulded PVC body, nickel-plated brass coupling nuts, 50x95 mm
• Environment: IP65, IP67, IP68, -40...+70 °C
• Connection: 8x 4-pin M12 female, 1x 5-pin M12 male to the Modbus line

Brings eight analog transmitters onto one Modbus line at the machine instead of wiring each back to an analog input card. Settings are made with Banner SNAP SIGNAL Configuration Software; M12 cordsets are ordered separately.

Vibration per IEC 60068-2-6, shock per IEC 60068-2-27 (15 G, 11 ms).
