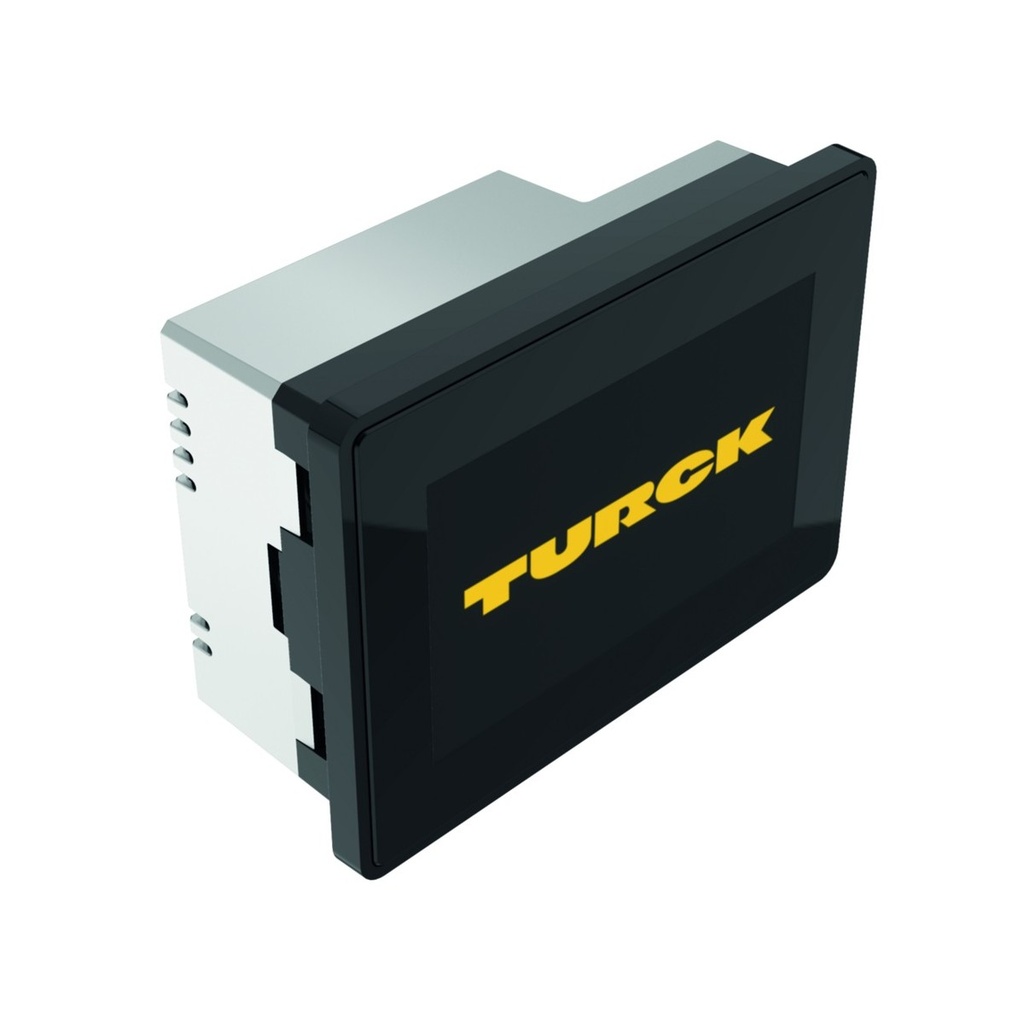

TX705-P3CV01 is a 5" touch display from the TURCK TX700 series with a built-in CODESYS V3 PLC, TARGET and WEB VISU visualisation. The PLC program and the screens are built in CODESYS V3 and loaded into the device over Ethernet.

• Display: 5" TFT, 800 x 480 (WVGA), 16:9, 64K colours, 300 cd/m², capacitive glass front, dimmable to 0 %
• Communication: 2 x RJ45 Ethernet 10/100 Mbit, 1 x RS232/RS485/RS422, 1 x USB host, SD card slot

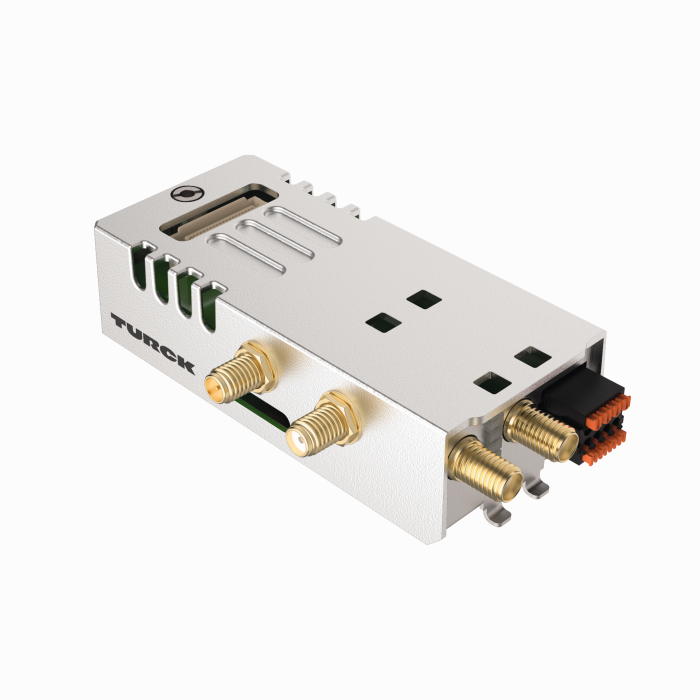

• Expansion: 1 slot for up to 2 plug-in modules (I/O, CANopen, PROFIBUS DP, RS485, RS232, LTE/Wi-Fi)
• PLC: CODESYS V3.5.12.10, IEC 61131-3 (IL, LD, FBD, SFC, ST), 20000 kB program memory, 63 kB retain memory; ARM Cortex A8, 1 GHz, 512 MB RAM, 4 GB Flash, battery-backed clock
• Supply: 24 VDC (10...32 VDC), max. 0.6 A
• Housing: metal, front 147 x 107 x 52 mm, cut-out 136 x 96 mm, mounting depth 52+8 mm
• Environment: IP66 front, IP20 rear, NEMA 12/4X; -20...+60 °C, 5...85 % RH non-condensing

Built into a cabinet door or control desk. Mounting brackets and the power connector come in the 5" TX700 mounting kit, available as an accessory; I/O and fieldbus modules plug into the expansion slots and are ordered separately.

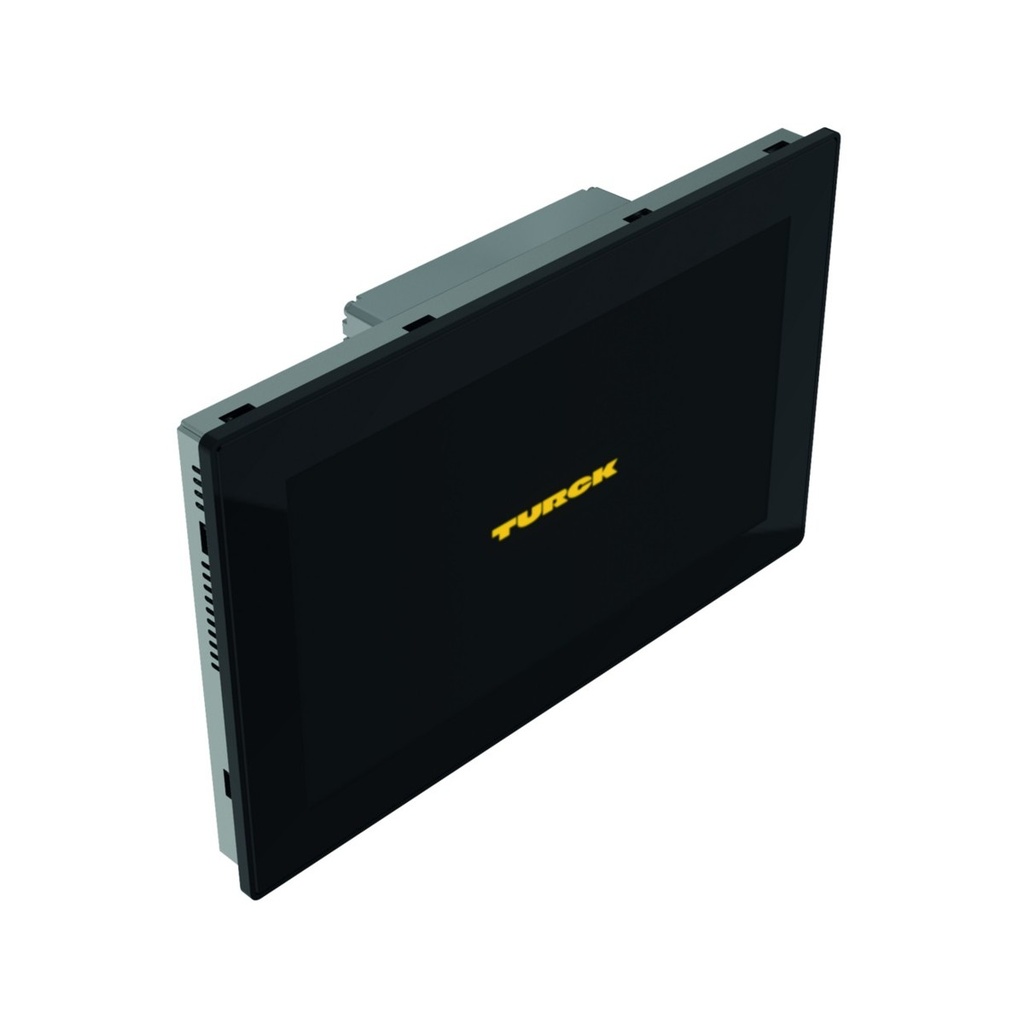

TX715-P3CV01 is a 15.6" touch display from the TURCK TX700 series with a built-in CODESYS V3 PLC, TARGET and WEB VISU visualisation. The PLC program and the screens are built in CODESYS V3 and loaded into the device over Ethernet.

• Display: 15.6" TFT, 1366 x 768 (HD), 16:9, 16M colours, 400 cd/m², capacitive glass front, dimmable to 0 %
• Communication: 3 x RJ45 Ethernet 10/100 Mbit, 1 x RS232/RS485/RS422, 2 x USB host (v2.0, max. 500 mA), SD card slot
• Expansion: 2 slots for up to 4 plug-in modules (I/O, CANopen, PROFIBUS DP, RS485, RS232, LTE/Wi-Fi)
• PLC: CODESYS V3.5.12.10, IEC 61131-3 (IL, LD, FBD, SFC, ST), 20000 kB program memory, 63 kB retain memory; ARM Cortex A9, Quad core 800 MHz, 2048 MB RAM, 8 GB Flash, battery-backed clock
• Supply: 24 VDC (10...32 VDC), max. 1.2 A
• Housing: metal, front 422 x 267 x 56 mm, cut-out 411 x 256 mm, mounting depth 56+8 mm
• Environment: IP66 front, IP20 rear, NEMA 12/4X; -20...+60 °C, 5...85 % RH non-condensing

Built into a cabinet door or control desk. Mounting brackets and the power connector come in the 15.6" TX700 mounting kit, available as an accessory; I/O and fieldbus modules plug into the expansion slots and are ordered separately.

7” Display - CODESYS V3 PLC with TARGET and WEB VISU

High-Quality Metal Housing with a Resistive Touch Screen

• • 7" TFT wide screen color display
  • LED backlight
  • 800 x 480 pixel resolution
  • 64 K colors
  • Resistive touch screen
  • 2 RJ45 Ethernet ports with integrated switch
  • 1 serial interface (RS232, RS485, RS422)
  • 2 USB host ports
  • 1 SD card slot

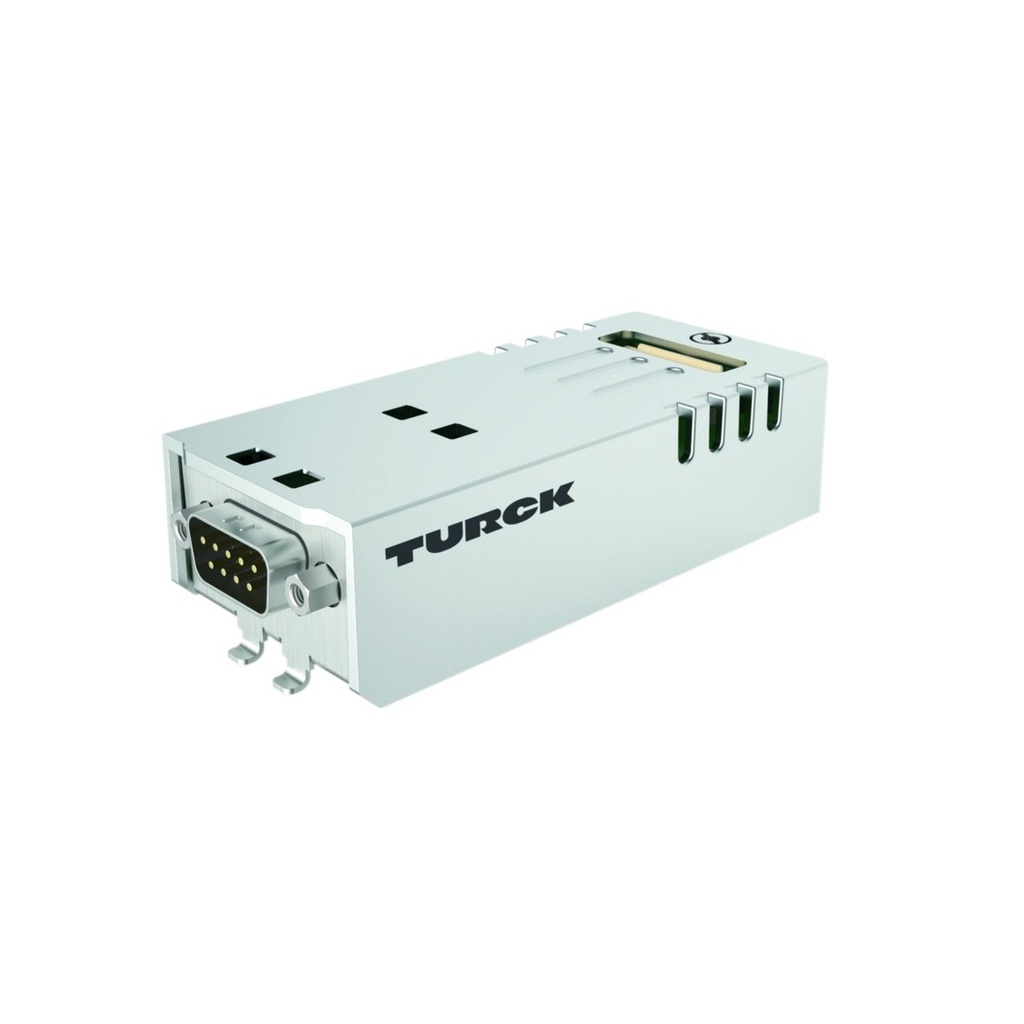

TX-CAN is a plug-in module for TURCK TX700 HMI/PLC devices that works as a CANopen manager (master) in CODESYS. It supports CAN 2.0A and 2.0B and is galvanically isolated.

• Interface: CANopen manager/master, CAN 2.0A/2.0B, 10 kbps...1 Mbps
• Connector: 1 x 9-pin SUB-D, male; external bus termination
• Configuration: transmission rate and addresses 1...127 set in CODESYS
• Supply: from the HMI
• Housing: metal, 41.2 x 90.3 x 23.8 mm
• Environment: IP20, -20...+60 °C, 5...85 % RH non-condensing

Fits the expansion slots of TX700 HMI/PLC devices and the TX700S gateway; powered from the HMI, no separate supply. The bus terminating resistor is not built in and has to be fitted externally.

Approvals: CE, cULus, Class I Div. 2, DNV-GL.

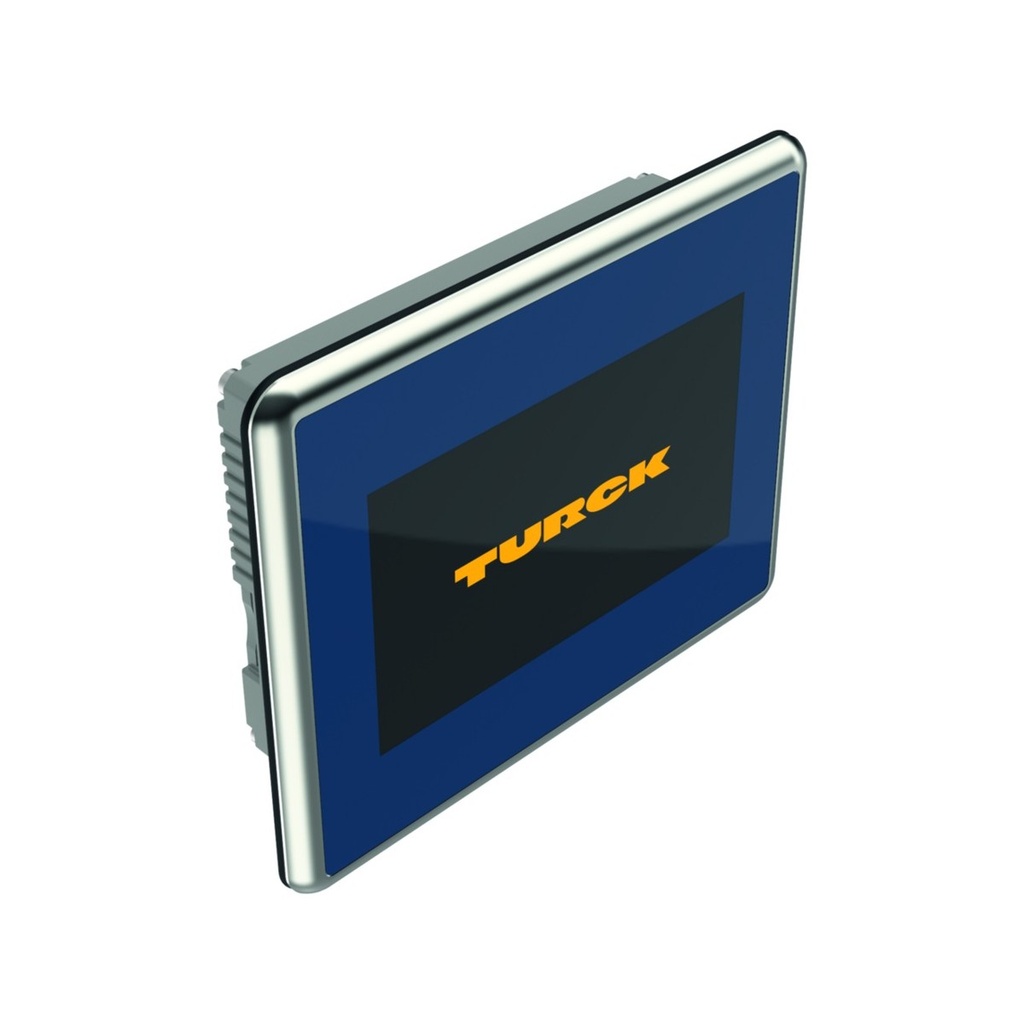

TX707FB-P3CV01 is a 7" touch display from the TURCK TX700 series with a built-in CODESYS V3 PLC, TARGET and WEB VISU visualisation. The FB version for the food industry has a stainless steel AISI 316L frame, a food-grade seal and an IP69 front that withstands high-pressure water up to 80 °C, acids and chemicals.

• Display: 7" TFT, 800 x 480 (WVGA), 16:9, 16M colours, 500 cd/m², capacitive glass front with polyester coating, dimmable to 0 %
• Communication: 3 x RJ45 Ethernet 10/100 Mbit, 1 x RS232/RS485/RS422, 2 x USB host (v2.0, max. 500 mA), SD card slot
• Expansion: 2 slots for up to 4 plug-in modules (I/O, CANopen, PROFIBUS DP, RS485, RS232, LTE/Wi-Fi)
• PLC: CODESYS V3.5.12.10, IEC 61131-3 (IL, LD, FBD, SFC, ST), 20000 kB program memory, 63 kB retain memory; ARM Cortex A9, Dual core 800 MHz, 1024 MB RAM, 4 GB Flash, battery-backed clock
• Supply: 24 VDC (10...32 VDC), max. 0.7 A
• Housing: die-cast aluminium, stainless steel AISI 316L frame, polyester front foil, front 217 x 177 x 45 mm, cut-out 176 x 136 mm, mounting depth 45+10 mm
• Environment: IP69 front, IP20 rear, NEMA 12/4X; -20...+60 °C, 5...85 % RH non-condensing

Intended for operator stations in food and beverage production. Built into a cabinet door or control desk. Mounting brackets and the power connector come in the 7" TX700 mounting kit, available as an accessory; I/O and fieldbus modules plug into the expansion slots and are ordered separately.

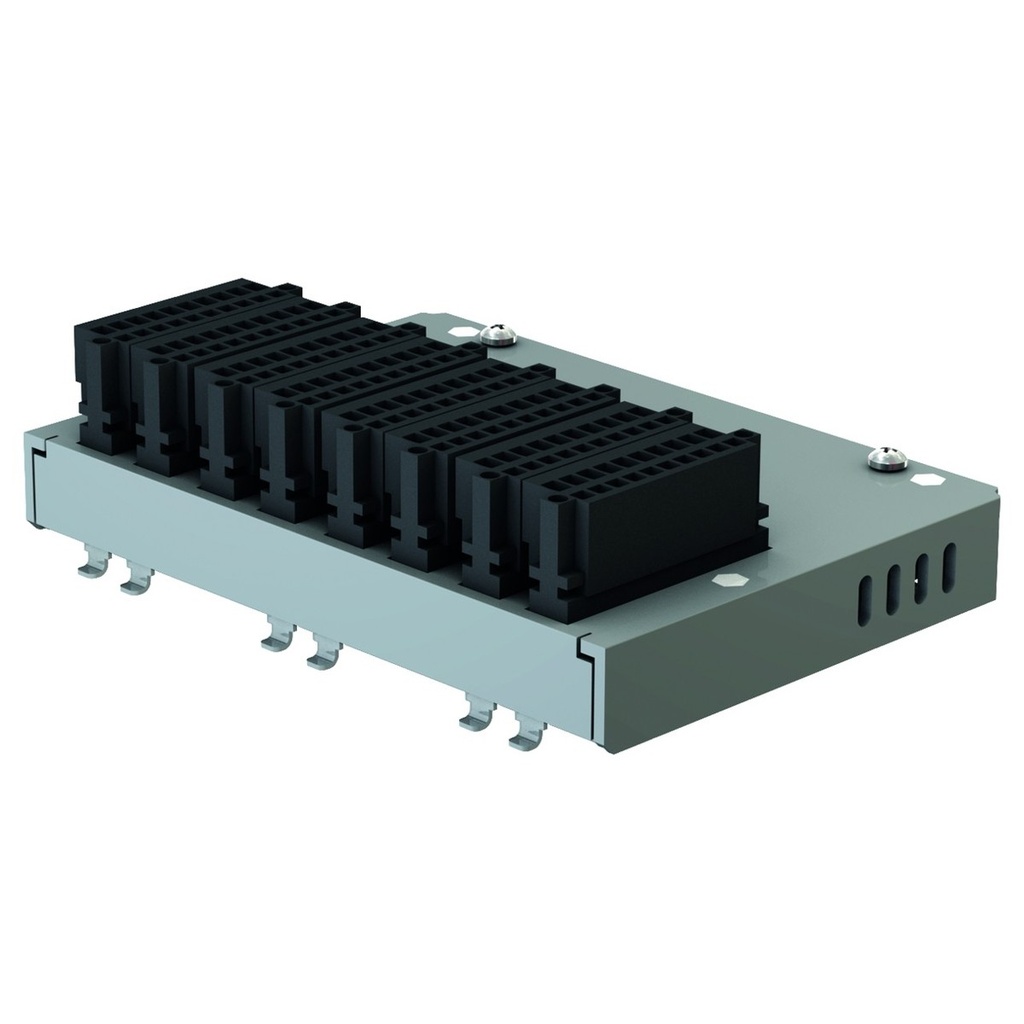

TX-IO-XX03 is a plug-in I/O module for TURCK TX700 HMI/PLC devices with 20 digital inputs, 12 digital outputs, four universal analogue inputs for voltage, current, RTD and thermocouples, and four analogue outputs for voltage or current.

• Digital inputs: 20 x 24 VDC, PNP, input delay 0.05 ms (S inputs) / 0.0002 ms (E inputs)
• Digital outputs: 12 x 24 VDC, PNP, 0.5 A per channel, simultaneity factor 0.23, short-circuit protected
• Analogue inputs: 4, 12 bit; ±100 mV...±10 V, 0...10 V, 0/4...20 mA, RTD -100...+850 °C (2-, 3-, 4-wire), thermocouple E, J, K, R, S, T; basic error 0.1 % at 25 °C
• Analogue outputs: 4, 12 bit; ±10 V (load > 1 kΩ) or 0...20 mA (load < 470 Ω)
• Supply: 24 VDC (12...30 VDC), I/O optically isolated at 1500 V rms
• Housing: metal, 125.2 x 89.3 x 33.7 mm; pluggable 10-pin spring terminal strips, 3.5 mm pitch
• Environment: IP20, 0...+50 °C, 5...85 % RH non-condensing

Fits the expansion slots of TX700 HMI/PLC devices and the TX700S gateway. The I/O are handled by the CODESYS PLC in the HMI. Thermocouple cold junction compensation is external, through a Pt100 on the compensation input. On the 5" TX705 and the TX700S gateway the module needs the TX-EXTEND adapter.

Approvals: CE, cULus, Class I Div. 2, DNV-GL.

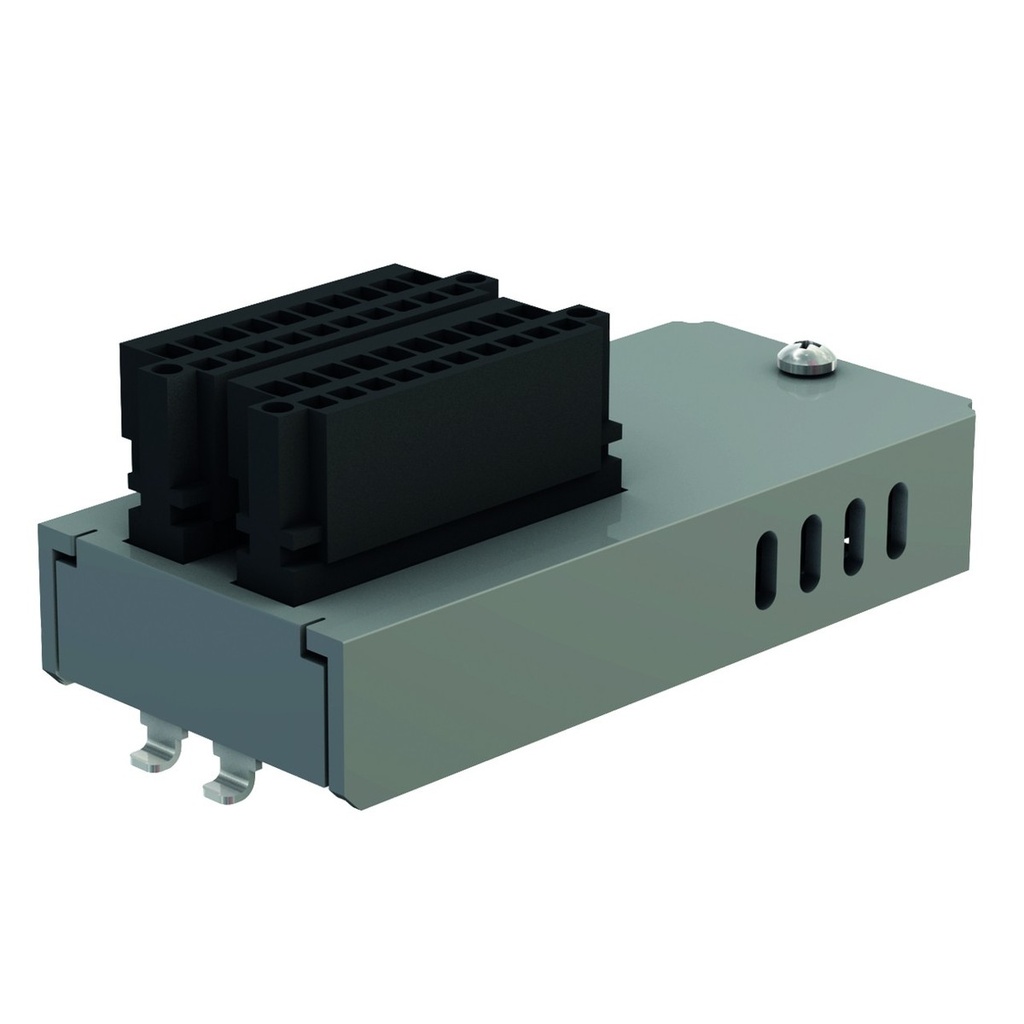

TX-IO-DX06 is a plug-in I/O module for TURCK TX700 HMI/PLC devices with eight PNP digital inputs, six PNP digital outputs and one relay output, optically isolated at 1500 V rms.

• Inputs: 8 x DI, 24 VDC, PNP, input delay < 0.05 ms
• Outputs: 6 x DO, 24 VDC, PNP, 0.5 A per channel, simultaneity factor 0.46, short-circuit protected; 1 x relay, NO contact
• Supply: 24 VDC (12...30 VDC), actuator supply fed externally
• Connection: 2 pluggable 10-pin spring terminal strips, 3.5 mm pitch (Weidmüller Omnimate BLZF 3.5/180F); supply on a cage-clamp strip
• Housing: metal, 41.2 x 89.3 x 33.7 mm
• Environment: IP20, 0...+50 °C, 5...85 % RH non-condensing

Fits the expansion slots of TX700 HMI/PLC devices and the TX700S gateway. The I/O are handled by the CODESYS PLC in the HMI.

Approvals: CE, cULus, DNV GL.

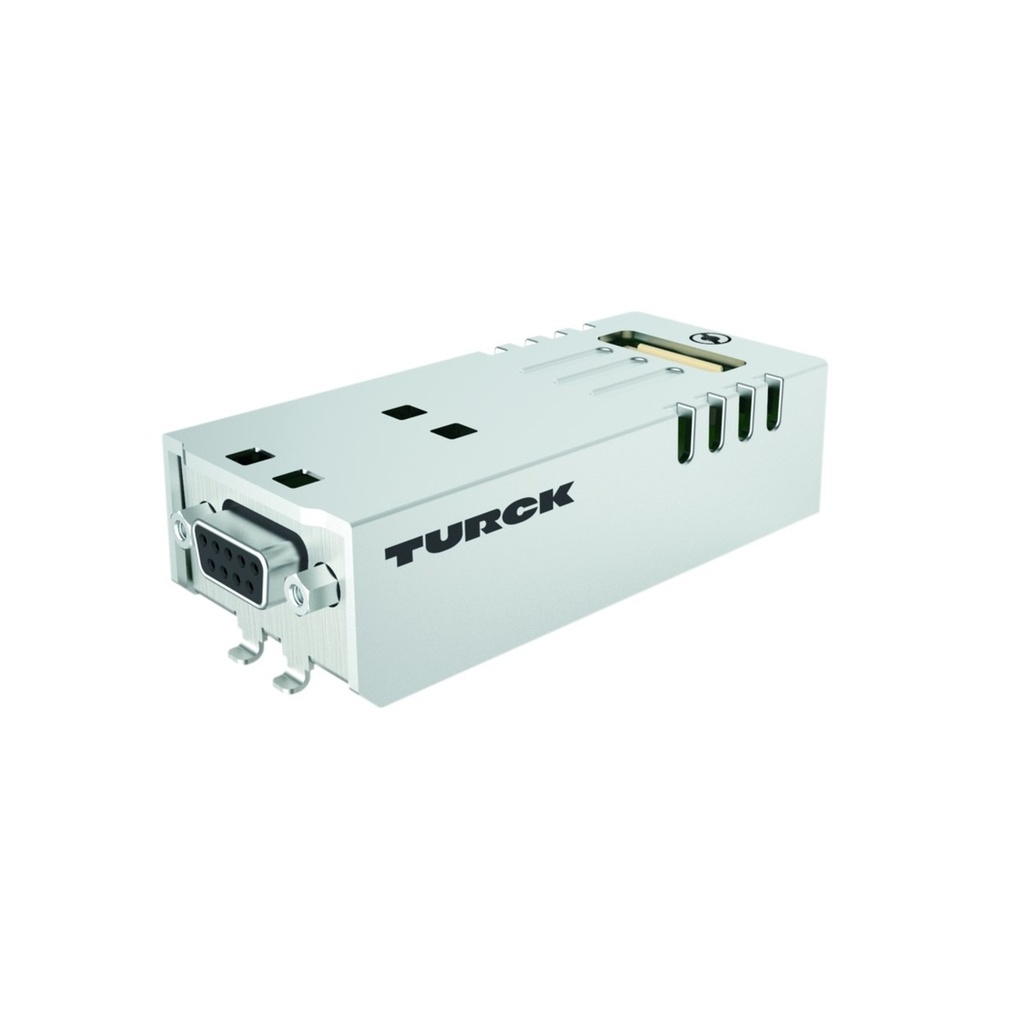

TX-RS485 is a plug-in module for TURCK TX700 HMI/PLC devices that adds a galvanically isolated RS485/RS422 interface on a 9-pin SUB-D female connector.

• Interface: RS485/RS422, 9.6...115.2 kbps, galvanically isolated
• Connector: 1 x 9-pin SUB-D, female
• Supply: from the HMI
• Housing: metal, 41.2 x 90.3 x 23.8 mm
• Environment: IP20, -20...+60 °C, 5...85 % RH non-condensing

Fits the expansion slots of TX700 HMI/PLC devices and the TX700S gateway; powered from the HMI, no separate supply. The module has a plug-in extension port.

Approvals: CE.

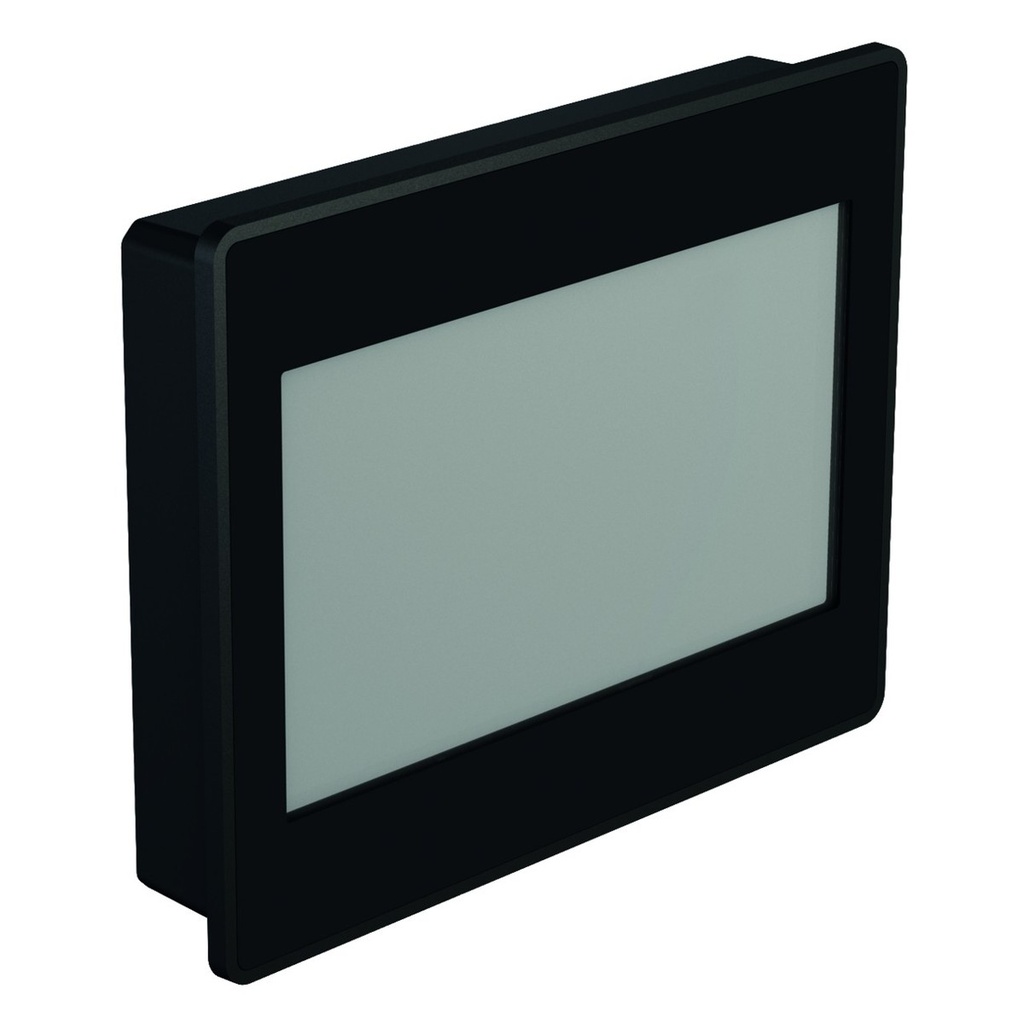

TX107-00VPST is a 7" touch display from the TURCK TX100 series with TX VisuPro runtime, a plastic housing and a resistive touchscreen behind a plastic front film. It works as an operator panel only and has no built-in PLC.

• Display: 7" TFT, 800 x 480 (WVGA), 16:9, 64K colours, 200 cd/m², resistive, dimmable
• Communication: 1 x RJ45 Ethernet 10/100 Mbit, 1 x RS232/RS485/RS422, 1 x USB host
• Software: TX VisuPro runtime; ARM Cortex A8, 1 GHz, 512 MB RAM, 4 GB Flash
• Supply: 24 VDC (10...32 VDC), max. 0.3 A
• Housing: plastic, front 187 x 147 x 34 mm, cut-out 176 x 136 mm, mounting depth 29+5 mm
• Environment: IP66 front, IP20 rear, NEMA 2/4X; 0...+50 °C, 5...85 % RH non-condensing

Built into a cabinet door or control desk. Mounting brackets and the power connector come in the TX100 mounting kit, available as an accessory. There are no expansion slots.

Approvals: Haz. Loc. Class I, Division 2, Groups A, B, C and D.

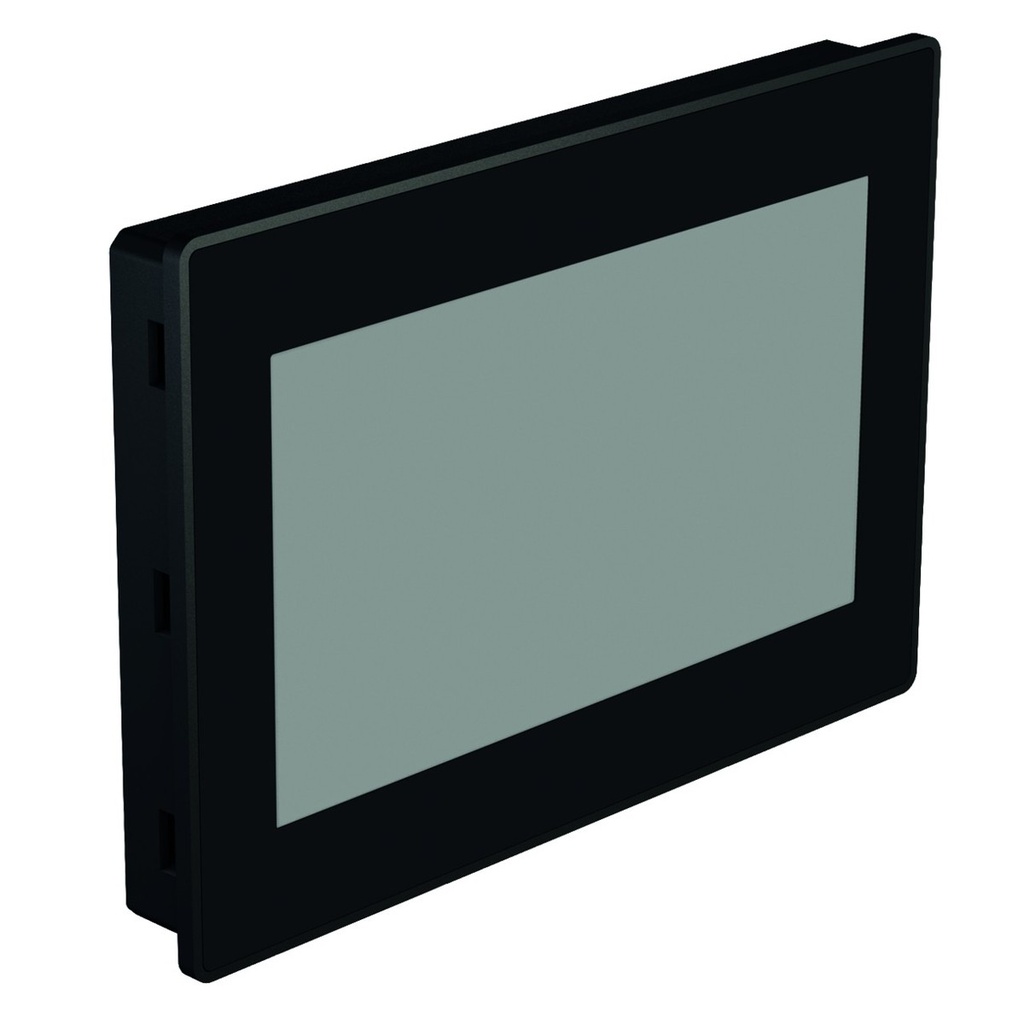

TX110-00VPST is a 10.1" touch display from the TURCK TX100 series with TX VisuPro runtime, a plastic housing and a resistive touchscreen behind a plastic front film. It works as an operator panel only and has no built-in PLC.

• Display: 10.1" TFT, 1024 x 600 (WVGA), 16:9, 64K colours, 200 cd/m², resistive, dimmable
• Communication: 1 x RJ45 Ethernet 10/100 Mbit, 1 x RS232/RS485/RS422, 1 x USB host
• Software: TX VisuPro runtime; ARM Cortex A8, 1 GHz, 512 MB RAM, 4 GB Flash
• Supply: 24 VDC (10...32 VDC), max. 0.38 A
• Housing: plastic, front 282 x 197 x 35 mm, cut-out 271 x 186 mm, mounting depth 29+6 mm
• Environment: IP66 front, IP20 rear, NEMA 2/4X; 0...+50 °C, 5...85 % RH non-condensing

Built into a cabinet door or control desk. Mounting brackets and the power connector come in the TX100 mounting kit, available as an accessory. There are no expansion slots.

Approvals: Haz. Loc. Class I, Division 2, Groups A, B, C and D.

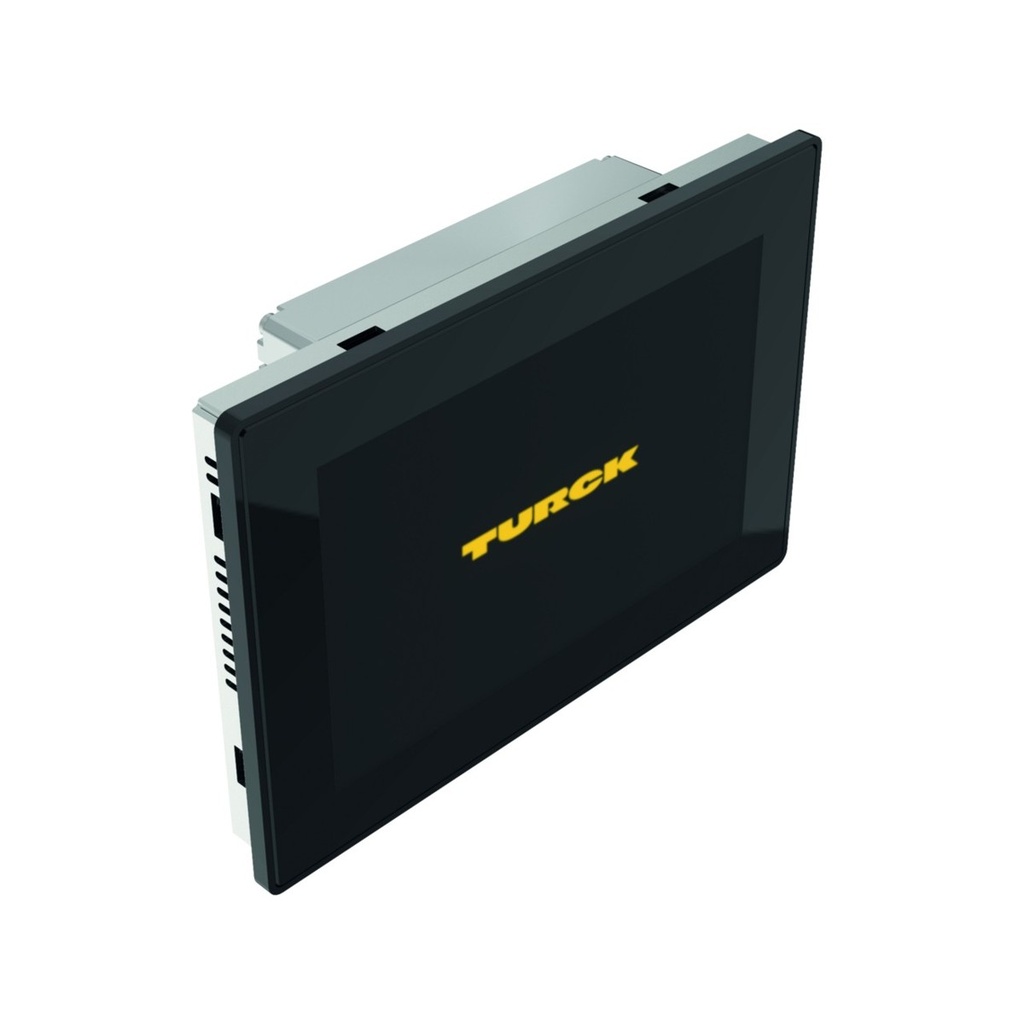

TX710-P3CV01 is a 10.1" touch display from the TURCK TX700 series with a built-in CODESYS V3 PLC, TARGET and WEB VISU visualisation. The PLC program and the screens are built in CODESYS V3 and loaded into the device over Ethernet.

• Display: 10.1" TFT, 1280 x 800 (WXGA), 16:9, 16M colours, 500 cd/m², capacitive glass front, dimmable to 0 %
• Communication: 3 x RJ45 Ethernet 10/100 Mbit, 1 x RS232/RS485/RS422, 2 x USB host (v2.0, max. 500 mA), SD card slot
• Expansion: 2 slots for up to 4 plug-in modules (I/O, CANopen, PROFIBUS DP, RS485, RS232, LTE/Wi-Fi)
• PLC: CODESYS V3.5.12.10, IEC 61131-3 (IL, LD, FBD, SFC, ST), 20000 kB program memory, 63 kB retain memory; ARM Cortex A9, Dual core 800 MHz, 1024 MB RAM, 4 GB Flash, battery-backed clock
• Supply: 24 VDC (10...32 VDC), max. 1.0 A
• Housing: metal, front 282 x 197 x 56 mm, cut-out 271 x 186 mm, mounting depth 56+8 mm
• Environment: IP66 front, IP20 rear, NEMA 12/4X; -20...+60 °C, 5...85 % RH non-condensing

Built into a cabinet door or control desk. Mounting brackets and the power connector come in the 10.1" TX700 mounting kit, available as an accessory; I/O and fieldbus modules plug into the expansion slots and are ordered separately.

S100PTVD2WAD2Q is a Banner S100 Pro series touch operator display that combines status indication, text and operator input in a single M30 threaded housing. This version works without an industrial network: the PLC switches states through discrete inputs, while text, colours and animations are loaded into the unit beforehand with Banner Pro Editor.

• Display: two-row white dot-matrix display, 13 characters per line, 16 RGB LED ring and audible alert
• Control: 5 capacitive touch zones with vibration feedback, response time max. 300 ms
• Control signals: discrete inputs, output max. 150 mA
• Supply: 12-30 V DC
• Housing: black polycarbonate with tinted window, Ø100 mm, M30x1.5 threaded base, IP66/IP69K, -40...+50°C
• Connection: integral M12 male connector, 5-pin

The display mounts in a Ø30 mm hole at the machine station - pick-to-light positions, takt timer, counter and step confirmation. The configuration is loaded with Pro Editor before installation, so changing text or colours means disconnecting the unit and connecting it to a PC.

CE marked and cULus listed, housing rated UL Type 4X.

S100PTVD2WAKQ is a Banner S100 Pro series touch operator display that combines status indication, text and operator input in a single M30 threaded housing. Over IO-Link it connects to a standard master port, carrying process data and parameters on the same unshielded cable, so a replacement unit is re-parameterised by the master rather than by hand.

• Display: two-row white dot-matrix display, 13 characters per line, 16 RGB LED ring and audible alert
• Control: 5 capacitive touch zones with vibration feedback, response time max. 300 ms
• Communication: IO-Link
• Supply: 18-30 V DC, 280 mA at 18 V DC, 210 mA at 24 V DC
• Housing: black polycarbonate with tinted window, Ø100 mm, M30x1.5 threaded base, IP66/IP69K, -40...+50°C
• Connection: integral M12 male connector, 4-pin

The display mounts in a Ø30 mm hole at the machine station - pick-to-light positions, takt timer, counter and step confirmation. Note that this version starts at 18 V DC, not 12 V DC as the other S100 Pro versions.

CE marked and cULus listed, housing rated UL Type 4X.

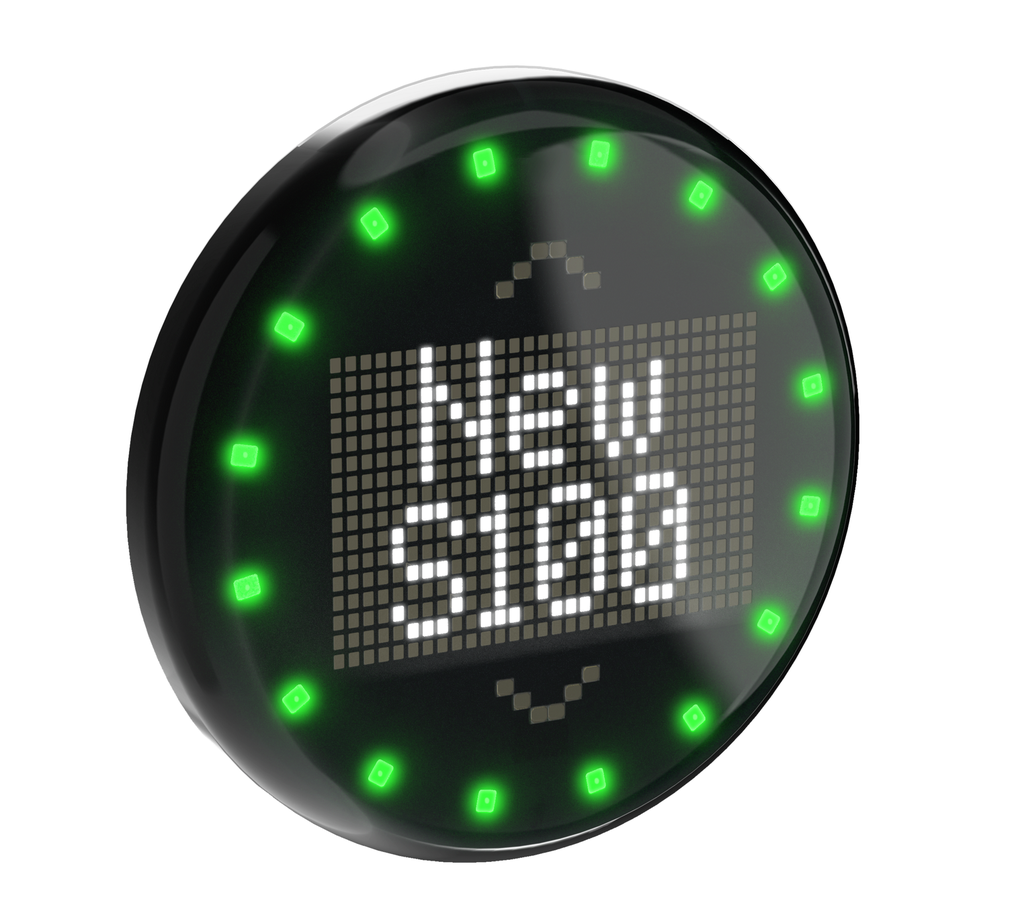

S100PTVD2WASQ is a Banner S100 Pro series touch operator display that combines status indication, text and operator input in a single M30 threaded housing. The controller changes text, colours and the meaning of each touch zone at runtime over Modbus RTU, so one unit serves several machine modes without reconfiguration.

• Display: two-row white dot-matrix display, 13 characters per line, 16 RGB LED ring and audible alert
• Control: 5 capacitive touch zones with vibration feedback, response time max. 300 ms
• Communication: Modbus RTU over RS-485, 9600, 19200 and 38400 bit/s
• Supply: 12-30 V DC, 415 mA at 12 V DC, 210 mA at 24 V DC
• Housing: black polycarbonate with tinted window, Ø100 mm, M30x1.5 threaded base, IP66/IP69K, -40...+50°C
• Connection: integral M12 male connector, 4-pin

The display mounts in a Ø30 mm hole at the machine station - pick-to-light positions, takt timer, counter and step confirmation. Prepared modes run without programming, while Modbus registers let the PLC drive each row, colour and the audible alert separately.

CE marked and cULus listed, housing rated UL Type 4X.
