PKG3M-8-PSG3M/TXL is a TURCK connection cable with a black PUR jacket rated for drag chains.

• Connectors: M8 x 1 female (3-pin) and M8 x 1 male (3-pin), both straight, gold-plated brass (CuZn) contacts, more than 100 mating cycles
• Cable: 8 m, PUR, black, Ø 4.1 mm, 3 x 0.34 mm², PP core insulation, core colours BN, BU, BK
• Ratings: 4 A, 50 V AC/60 V DC
• Housing: TPU, nickel-plated brass coupling nut, FPM/FKM seal
• Environment: IP67, IP69K (only when screwed in); -50...+80°C fixed, -25...+80°C mobile, -25...+60°C in a drag chain
• Drag chain: at least 5 million bending cycles, up to 3.3 m/s and 5 m/s², bending radius ≥10 x Ø, torsion ±180°/m

The jacket resists chemicals, UV radiation, oils, welding sparks and abrasion, is flame retardant (FT2 per UL 1581, IEC 60332-2-2) and free from halogen, silicone, PVC and LABS. Approval: cULus.

RKC4.4T-2-PSG4M/TXL is a TURCK connection cable with a straight M12 female connector on one end and a straight M8 male connector on the other (4-pin).

• Connectors: M12 x 1 female, A-coded / M8 x 1 male, both straight, 4-pin, gold-plated brass (CuZn) contacts
• Cable: 2 m, PUR, black, Ø 4.5 mm, 4 x 0.34 mm², core colours BN, WH, BU, BK
• Ratings: 4 A, 50 VAC/60 VDC, more than 100 mating cycles
• Housing: TPU, nickel-plated brass coupling nuts, FPM/FKM seal; M8 tightening torque 0.5...0.6 Nm
• Environment: IP67, IP69K (only when screwed in); -50...+80°C fixed, -25...+80°C mobile, -25...+60°C in a drag chain

The PUR jacket is rated for drag chains: at least 5 million bending cycles, up to 3.3 m/s and 5 m/s², bending radius ≥10 x Ø. It resists chemicals, UV radiation, oils, welding sparks and abrasion, is flame retardant (FT2 per UL 1581, IEC 60332-2-2) and free from halogen, silicone, PVC and LABS.

Approval: cULus.

PKG3M-3-PSG3M/TXL is a TURCK connection cable with a black PUR jacket rated for drag chains.

• Connectors: M8 x 1 female (3-pin) and M8 x 1 male (3-pin), both straight, gold-plated brass (CuZn) contacts, more than 100 mating cycles
• Cable: 3 m, PUR, black, Ø 4.1 mm, 3 x 0.34 mm², PP core insulation, core colours BN, BU, BK
• Ratings: 4 A, 50 V AC/60 V DC
• Housing: TPU, nickel-plated brass coupling nut, FPM/FKM seal
• Environment: IP67, IP69K (only when screwed in); -50...+80°C fixed, -25...+80°C mobile, -25...+60°C in a drag chain
• Drag chain: at least 5 million bending cycles, up to 3.3 m/s and 5 m/s², bending radius ≥10 x Ø, torsion ±180°/m

The jacket resists chemicals, UV radiation, oils, welding sparks and abrasion, is flame retardant (FT2 per UL 1581, IEC 60332-2-2) and free from halogen, silicone, PVC and LABS. Approval: cULus.

RKC4.4T-5-PSG4M/TXL is a TURCK connection cable with a straight M12 female connector on one end and a straight M8 male connector on the other (4-pin).

• Connectors: M12 x 1 female, A-coded / M8 x 1 male, both straight, 4-pin, gold-plated brass (CuZn) contacts
• Cable: 5 m, PUR, black, Ø 4.5 mm, 4 x 0.34 mm², core colours BN, WH, BU, BK
• Ratings: 4 A, 50 VAC/60 VDC, more than 100 mating cycles
• Housing: TPU, nickel-plated brass coupling nuts, FPM/FKM seal; M8 tightening torque 0.5...0.6 Nm
• Environment: IP67, IP69K (only when screwed in); -50...+80°C fixed, -25...+80°C mobile, -25...+60°C in a drag chain

The PUR jacket is rated for drag chains: at least 5 million bending cycles, up to 3.3 m/s and 5 m/s², bending radius ≥10 x Ø. It resists chemicals, UV radiation, oils, welding sparks and abrasion, is flame retardant (FT2 per UL 1581, IEC 60332-2-2) and free from halogen, silicone, PVC and LABS.

Approval: cULus.

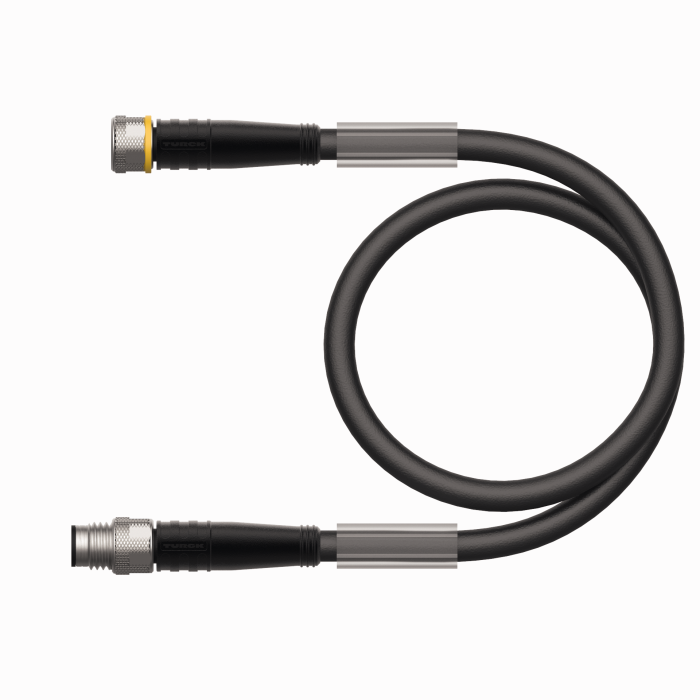

PKG4M-8-PSG4M/TXL is a TURCK M8 connection cable with a black PUR jacket rated for drag chains.

• Connectors: M8 x 1 female and M8 x 1 male, both straight, 4-pin each, gold-plated brass (CuZn) contacts, more than 100 mating cycles
• Cable: 8 m, PUR, black, Ø 4.5 mm, 4 x 0.34 mm², PP core insulation, core colours BN, WH, BU, BK
• Ratings: 4 A, 50 V AC/60 V DC
• Housing: TPU, nickel-plated brass coupling nut, FPM/FKM seal
• Environment: IP67, IP69K (only when screwed in); -50...+80°C fixed, -25...+80°C mobile, -25...+60°C in a drag chain
• Drag chain: at least 5 million bending cycles, up to 3.3 m/s and 5 m/s², bending radius ≥10 x Ø, torsion ±180°/m

The jacket resists chemicals, UV radiation, oils, welding sparks and abrasion, is flame retardant (FT2 per UL 1581, IEC 60332-2-2) and free from halogen, silicone, PVC and LABS. Approval: cULus.

PKG4M-5-PSG4M/TXL is a TURCK M8 connection cable with a black PUR jacket rated for drag chains.

• Connectors: M8 x 1 female and M8 x 1 male, both straight, 4-pin each, gold-plated brass (CuZn) contacts, more than 100 mating cycles
• Cable: 5 m, PUR, black, Ø 4.5 mm, 4 x 0.34 mm², PP core insulation, core colours BN, WH, BU, BK
• Ratings: 4 A, 50 V AC/60 V DC
• Housing: TPU, nickel-plated brass coupling nut, FPM/FKM seal
• Environment: IP67, IP69K (only when screwed in); -50...+80°C fixed, -25...+80°C mobile, -25...+60°C in a drag chain
• Drag chain: at least 5 million bending cycles, up to 3.3 m/s and 5 m/s², bending radius ≥10 x Ø, torsion ±180°/m

The jacket resists chemicals, UV radiation, oils, welding sparks and abrasion, is flame retardant (FT2 per UL 1581, IEC 60332-2-2) and free from halogen, silicone, PVC and LABS. Approval: cULus.

RKP54PLB-2/TXG is a TURCK M12 power cable with a straight L-coded female connector (4 pins + FE) on one end and open cores on the other. The L-coding and 2.5 mm² cores are made for supply runs of up to 16 A.

• Connector: M12 x 1, female, straight, L-coded, 4 pins + FE, gold-plated copper-nickel (CuNi) contacts
• Cable: 2 m, PUR, grey, Ø 9.8 mm, 5 x 2.5 mm², core colours BN, WH, BU, BK, PK
• Ratings: 16 A, 50 VAC/60 VDC, more than 100 mating cycles
• Housing: black TPE, PBT GF contact carrier, nickel-plated brass coupling nut, FPM/FKM seal
• Environment: IP65, IP67, IP69K (only when screwed in); -40...+80°C fixed, -30...+80°C mobile, -20...+60°C in a drag chain

The PUR jacket is rated for drag chains: at least 10 million bending cycles, up to 5 m/s², bending radius ≥7 x Ø, torsion ±30°/m. It resists oils, coolants, lubricants and emulsions, vibration and shock, is flame retardant and halogen free.

Approval: cULus. RoHS compliant.

BWA-UCT-900 is a Banner Sure Cross adapter cable that connects a Gateway, a MultiHop radio or an RS-485 sensor to the USB port of a Windows PC for configuration. The supplied wall plug powers the connected device at 24 V DC, which a radio transmitting at 1 W needs and the USB port alone cannot supply.

• Connectors: USB 2.0 type A plug and M12 4-pin female for RS-485 (2-wire)
• Communication: 9600, 19200 or 38400 baud, 8 data bits, 1 stop bit, no parity
• Power: input 5 V DC from USB and 100...240 V AC from the wall plug; output 24 V DC for one device transmitting at 1 W
• Included: 1 m cable and MQDMC-401 cordset for DX80...C models
• Environment: 0...+50 °C, up to 95 % RH non-condensing

On first connection the driver installs automatically within 1-2 minutes. Connecting supply voltage to the communication pins causes permanent damage.

FCC Part 15 Class B and ICES-003(B); CE and UKCA marked.

STP-M12D-406 is a Banner double-ended cordset with a straight 4-pin D-coded M12 male connector at one end and a straight RJ45 plug at the other. The shield is tied to the M12 coupling nut.

• Connectors: M12x1, male, straight, D-coded, 4 pins, large body, nickel-plated brass nut / RJ45, male, straight, 8 pins
• Cable: 1.83 m, teal, Ø 6.2 mm, 24 AWG, shielded
• Ratings: 1.5 A, 60 V DC
• Environment: IP67, -40...+70 °C

CE marked.

MQDEC-406SS is a Banner double-ended M12 cordset with a straight 4-pin female connector at one end and a straight 4-pin male connector at the other.

• Connectors: M12x1, female straight / male straight, A-coded, 4 pins; nickel-plated brass coupling nuts, black PUR body
• Cable: 1.83 m, black PVC, Ø 5.21 mm, 4 x 22 AWG; wire colours brown, white, blue, black
• Ratings: 4 A; bend radius static 5x, dynamic 10x the outer diameter
• Environment: IP66, IP67, IP68, -40...+70 °C

UL and cUL listed (CYJV.E230439). Vibration per IEC 60068-2-6, shock per IEC 60068-2-27 (30 G, 11 ms).

MQDEC-430RS is a Banner double-ended M12 cordset with a straight 4-pin female connector at one end and a right-angle 4-pin male connector at the other.

• Connectors: M12x1, female straight / male right-angle, A-coded, 4 pins; nickel-plated brass coupling nuts, black PUR body
• Cable: 9.14 m, black PVC, Ø 5.21 mm, 4 x 22 AWG; wire colours brown, white, blue, black
• Ratings: 4 A; bend radius static 5x, dynamic 10x the outer diameter
• Environment: IP66, IP67, IP68, -40...+70 °C

UL and cUL listed (CYJV.E230439). Vibration per IEC 60068-2-6, shock per IEC 60068-2-27 (30 G, 11 ms).

RKS4.4T-5-RSS4.4T/TXL is a TURCK shielded M12 connection cable with a straight female connector on one end and a straight male connector on the other (4-pin, A-coded). The cable shield is connected to the coupling nuts.

• Connectors: M12 x 1 female / male, straight, A-coded, 4-pin, gold-plated brass (CuZn) contacts
• Cable: 5 m, PUR, black, Ø 5.3 mm, 4 x 0.34 mm², core colours BN, WH, BU, BK
• Shield: aluminium foil and tinned copper wire
• Ratings: 4 A, 250 V, more than 100 mating cycles
• Housing: TPU, nickel-plated brass coupling nuts, FPM/FKM seal
• Environment: IP67, IP69K (only when screwed in); -50...+80°C fixed, -25...+80°C mobile, -25...+60°C in a drag chain

The PUR jacket is rated for drag chains: at least 2 million bending cycles, up to 3.3 m/s and 5 m/s², bending radius ≥10 x Ø. It resists chemicals, UV radiation, oils, welding sparks and abrasion, is flame retardant (FT2 per UL 1581, IEC 60332-2-2) and free from halogen, silicone, PVC and LABS.

Approval: cULus.

PKGH3M-15/TFE is a TURCK hygienic-design connection cable for food and beverage production, with a straight M8 female connector (3-pin) on one end and open cores on the other.

• Connector: M8 x 1, female, straight, 3-pin, gold-plated brass (CuZn) contacts
• Cable: 15 m, PVC, grey (RAL 7040), Ø 4 mm, 3 x 0.25 mm², core colours BN, BU, BK
• Ratings: 4 A, 60 V, more than 100 mating cycles
• Housing: grey PP, stainless steel (V4A) coupling nut, FPM/FKM seal
• Environment: IP65, IP67, IP68, IP69 (only when screwed in); -25...+80°C fixed, 0...+80°C mobile

The jacket resists acids, alkalis, oils and chemicals and is flame retardant per DIN EN 60332-1-2 and DIN EN 60332-2-2. RoHS and REACH compliant, approvals: Ecolab, GOST.

PKW4M-2-PSG4M/TXL is a TURCK M8 connection cable with a black PUR jacket rated for drag chains. The female end is angled and the male end is straight, which saves space where the cable leaves the device at a right angle.

• Connectors: M8 x 1 female, angled, and M8 x 1 male, straight, 4-pin each, gold-plated brass (CuZn) contacts, more than 100 mating cycles
• Cable: 2 m, PUR, black, Ø 4.5 mm, 4 x 0.34 mm², PP core insulation, core colours BN, WH, BU, BK
• Ratings: 4 A, 50 V AC/60 V DC
• Housing: TPU, nickel-plated brass coupling nut, FPM/FKM seal
• Environment: IP67, IP69K (only when screwed in); -50...+80°C fixed, -25...+80°C mobile, -25...+60°C in a drag chain
• Drag chain: at least 5 million bending cycles, up to 3.3 m/s and 5 m/s², bending radius ≥10 x Ø, torsion ±180°/m

The jacket resists chemicals, UV radiation, oils, welding sparks and abrasion, is flame retardant (FT2 per UL 1581, IEC 60332-2-2) and free from halogen, silicone, PVC and LABS. Approval: cULus.

RSC8.800T-1/TXL is a TURCK connection cable with a straight M12 male connector (A-coded, 8-pin) on one end and open cores on the other.

• Connector: M12 x 1, male, straight, A-coded, 8-pin, gold-plated brass (CuZn) contacts
• Cable: 1 m, PUR, black, Ø 5.8 mm, 8 x 0.25 mm², core colours WH, BN, GN, YE, GY, PK, BU, RD
• Ratings: 2 A, 30 V, test voltage 2000 V, more than 100 mating cycles
• Housing: black TPU, nickel-plated brass coupling nut
• Environment: IP67, IP69K (only when screwed in); -50...+80°C fixed, -25...+80°C mobile, -25...+60°C in a drag chain
• Drag chain: at least 5 million bending cycles, up to 3.3 m/s and 5 m/s², bending radius ≥10 x Ø, torsion ±180°/m

Contact assignment follows DIN EN 60947-5-2 (production from CW16/2017).

The PUR jacket resists chemicals, UV radiation, oils, welding sparks and abrasion, is flame retardant (FT2 per UL 1581, IEC 60332-2-2) and free from halogen, silicone, PVC and LABS. Approval: cULus.

LIKA EPFL121-10.0-1032081 is a 10 m shielded encoder cable with an M23 12-pin connector for LIKA IQ58 and IP58 series encoders. It carries the incremental signals A, B and 0 with their inverted pairs, the supply and two setting inputs; the shield is connected to the connector case.

• Connector: M23, 12-pin
• Cable: 10 m, 10 x 0.34 mm², shielded
• Supply: +5...+30 V DC
• Inputs: index pulse setting, counting direction
• Core colours: A violet, /A yellow, B grey, /B pink, 0 green, /0 brown, +V red, 0 V black, index setting white, counting direction blue

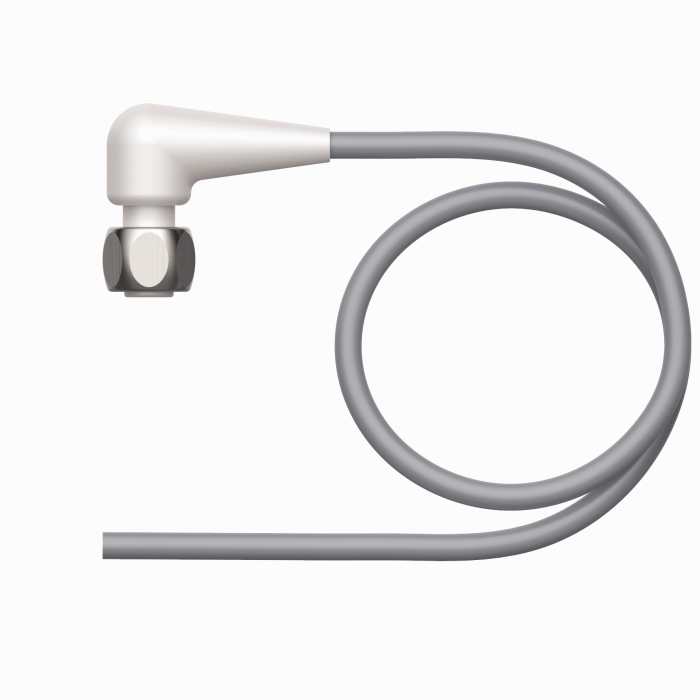

WKH4.4-2/TFE is a TURCK hygienic connection cable with an angled M12 female connector (4-pin) on one end and open cores on the other, for sensors and actuators in food and beverage plants.

• Connector: M12 female, angled, 4-pin, gold-plated brass (CuZn) contacts
• Cable: 2 m, PVC, grey RAL 7040, Ø 4.5 mm, 4 x 0.34 mm², core colours BN, WH, BU, BK
• Ratings: 4 A, 250 V, more than 100 mating cycles
• Housing: grey PP, stainless steel (V4A) coupling nut, FPM/FKM seal
• Environment: IP65, IP67, IP68, IP69 (only when screwed in); -25...+80°C fixed, 0...+80°C mobile

Designed for food and beverage areas: the grey PVC jacket (RAL 7040) resists acids, alkalis, oils and chemicals and is flame retardant per DIN EN 60332-1-2 and 60332-2-2. RoHS and REACH compliant. Approvals: GOST, Ecolab.

TXF-M22W-RJ45-5M is a TURCK PoE connection cable for the TXF700 HMI series, with an angled M22 connector on the device end and an RJ45 plug on the other.

• Connectors: M22, angled / RJ45
• Cable: 5 m
• Function: Power over Ethernet (PoE) for TXF700 HMI

RKC8T-10/TEL is a TURCK connection cable with a straight M12 female connector (8-pin) on one end and open cores on the other. The cable has a black PVC jacket.

• Connector: M12 x 1, female, straight, A-coded, 8-pin, gold-plated brass (CuZn) contacts
• Cable: 10 m, PVC, black, Ø 5.7 mm, 8 x 0.25 mm², core colours BN, WH, BU, BK, GY, PK, VT, OG
• Ratings: 2 A, 30 V, more than 100 mating cycles
• Housing: TPU, nickel-plated brass coupling nut, FPM/FKM seal
• Environment: IP67, IP69K (only when screwed in); -40...+105°C fixed, -5...+80°C mobile

The jacket resists chemicals, oils, acids, alkaline solutions, microbes and hydrolysis, is flame retardant and free from LABS. Approval: cULus.

RKC8T-5/TEL is a TURCK connection cable with a straight M12 female connector (8-pin) on one end and open cores on the other. The cable has a black PVC jacket.

• Connector: M12 x 1, female, straight, A-coded, 8-pin, gold-plated brass (CuZn) contacts
• Cable: 5 m, PVC, black, Ø 5.7 mm, 8 x 0.25 mm², core colours BN, WH, BU, BK, GY, PK, VT, OG
• Ratings: 2 A, 30 V, more than 100 mating cycles
• Housing: TPU, nickel-plated brass coupling nut, FPM/FKM seal
• Environment: IP67, IP69K (only when screwed in); -40...+105°C fixed, -5...+80°C mobile

The jacket resists chemicals, oils, acids, alkaline solutions, microbes and hydrolysis, is flame retardant and free from LABS. Approval: cULus.

M12, 100 pcs. per bag

PKG3M-15/TXL is a TURCK connection cable with a straight M8 female connector (3-pin) on one end and open cores on the other. The PUR jacket is rated for moving installation, including drag chains.

• Connector: M8 x 1, female, straight, 3-pin, gold-plated brass (CuZn) contacts
• Cable: 15 m, PUR, black, Ø 4.1 mm, 3 x 0.34 mm², core colours BN, BU, BK
• Ratings: 4 A, 50 VAC / 60 VDC, more than 100 mating cycles
• Housing: TPU, nickel-plated brass coupling nut, FPM/FKM seal
• Environment: IP67, IP69K (only when screwed in); -50...+80°C fixed, -25...+80°C mobile, -25...+60°C in a drag chain
• Drag chain: at least 5 million bending cycles, up to 3.3 m/s and 5 m/s², bending radius ≥10 x Ø, torsion ±180°/m

The jacket resists chemicals, UV radiation, oils, welding sparks and abrasion, is flame retardant (FT2 per UL 1581, IEC 60332-2-2) and free from halogen, silicone, PVC and LABS. Approval: cULus.

PKG3M-20/TEL is a TURCK connection cable with a straight M8 female connector (3-pin) on one end and open cores on the other.

• Connector: M8 x 1, female, straight, 3-pin, gold-plated brass (CuZn) contacts
• Cable: 20 m, PVC, black, Ø 4.3 mm, 3 x 0.34 mm², core colours BN, BU, BK
• Ratings: 4 A, 50 VAC / 60 VDC, more than 100 mating cycles
• Housing: TPU, nickel-plated brass coupling nut, FPM/FKM seal
• Environment: IP67, IP69K (only when screwed in); -40...+105°C fixed, -5...+80°C mobile

The jacket resists chemicals, oils, acids, alkaline solutions, microbes and hydrolysis, is flame retardant and free from LABS. Approval: cULus.

BS 4151-0/16 is a TURCK field-wireable 7/8" male connector, straight, 5-pin, for 12...14 mm cable with screw-clamp terminals.

• Connector: 7/8", male, straight, 5-pin, gold-plated brass (CuZn) contacts, more than 50 mating cycles
• Ratings: 9 A, 600 V
• Connection: screw-clamp terminals, conductors 16 AWG, cable diameter 12...14 mm
• Housing: black PBT body, nylon or TPU contact carrier, nickel-plated metal coupling nut
• Environment: IP67; -25...+85°C fixed

Approval: UL.

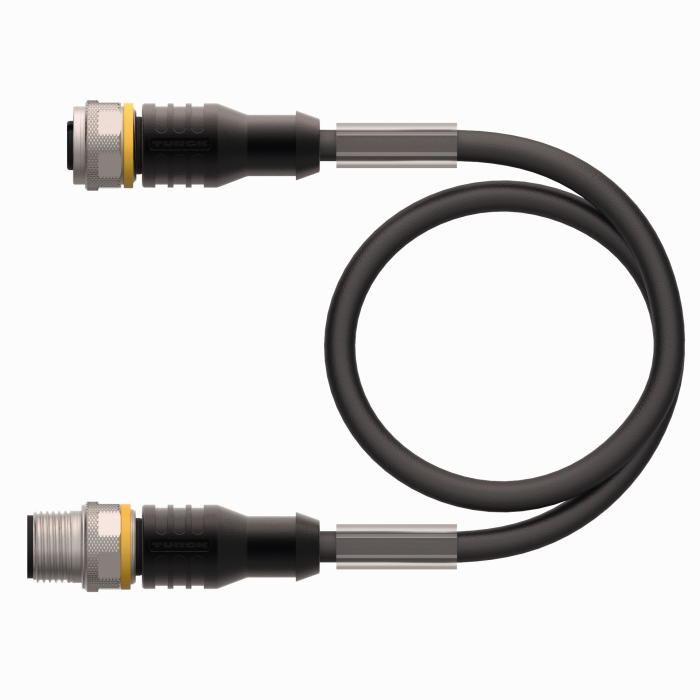

RKC4.4T-1-RSC4.4T/TEL is a TURCK extension cable with a straight M12 female connector on one end and a straight M12 male connector on the other (4-pin). The cable has a black PVC jacket.

• Connectors: M12 x 1 female and M12 x 1 male, both straight, A-coded, 4-pin, gold-plated brass (CuZn) contacts
• Cable: 1 m, PVC, black, Ø 4.6 mm, 4 x 0.34 mm², core colours BN, WH, BU, BK
• Ratings: 4 A, 250 V, more than 100 mating cycles
• Housing: TPU, nickel-plated brass coupling nut, FPM/FKM seal
• Environment: IP67, IP69K (only when screwed in); -40...+105°C fixed, -5...+80°C mobile

The jacket resists chemicals, oils, acids, alkaline solutions, microbes and hydrolysis, is flame retardant and free from LABS. Approval: cULus.

PKG3M-5-RSC4T/TEL is a TURCK adapter cable from a straight M8 female connector to a straight M12 male connector (A-coded), 3-pin, with a black PVC jacket. It connects an M8 sensor to an M12 port.

• Connectors: M8 x 1 female, straight, and M12 x 1 male, straight, A-coded, 3-pin each, gold-plated brass (CuZn) contacts, more than 100 mating cycles
• Cable: 5 m, PVC, black, Ø 4.3 mm, 3 x 0.34 mm², core colours BN, BU, BK
• Ratings: 4 A, 50 V AC/60 V DC
• Housing: TPU, nickel-plated brass coupling nut, FPM/FKM seal
• Environment: IP67, IP69K (only when screwed in); -40...+105°C fixed, -5...+80°C mobile

The jacket resists chemicals, oils, acids, alkaline solutions, microbes and hydrolysis, is flame retardant and free from LABS. Approval: cULus.

TTL C800-KI is a screened type K thermocouple cable: two PVC-insulated conductors under a Mylar aluminium tape screen with a copper drain wire and an overall PVC jacket.

• Thermocouple type: K
• Conductors: 2 x 7/0.2 mm, 0.22 mm², 24 AWG
• Insulation: PVC cores and PVC jacket
• Screen: Mylar aluminium tape, copper drain wire

PKG3M-40/TXL is a TURCK connection cable with a straight M8 female connector (3-pin) on one end and open cores on the other. The PUR jacket is rated for moving installation, including drag chains.

• Connector: M8 x 1, female, straight, 3-pin, gold-plated brass (CuZn) contacts
• Cable: 40 m, PUR, black, Ø 4.1 mm, 3 x 0.34 mm², core colours BN, BU, BK
• Ratings: 4 A, 50 VAC / 60 VDC, more than 100 mating cycles
• Housing: TPU, nickel-plated brass coupling nut, FPM/FKM seal
• Environment: IP67, IP69K (only when screwed in); -50...+80°C fixed, -25...+80°C mobile, -25...+60°C in a drag chain
• Drag chain: at least 5 million bending cycles, up to 3.3 m/s and 5 m/s², bending radius ≥10 x Ø, torsion ±180°/m

The jacket resists chemicals, UV radiation, oils, welding sparks and abrasion, is flame retardant (FT2 per UL 1581, IEC 60332-2-2) and free from halogen, silicone, PVC and LABS. Approval: cULus.

ESG 34FH0500G is a Baumer shielded M12 female cordset, 8-pin, straight, with the cable shield connected to the coupling nut.

• Connector: M12 female, straight, 8-pin, shield on coupling nut
• Cable: PUR, Ø approx. 5.9 mm, shielded, halogen-free, 5 m, suitable for drag chains
• Wire colours, pins 1-8: WH, BN, GN, YE, GY, PK, BU, RD
• Temperature: -25...+80 °C moving, -40...+80 °C fixed

UL listed, file number E315836.

RKC4.4T-20/TXL is a TURCK connection cable with a straight M12 female connector (4-pin) on one end and open cores on the other. The PUR jacket is rated for moving installation, including drag chains.

• Connector: M12 x 1, female, straight, A-coded, 4-pin, gold-plated brass (CuZn) contacts
• Cable: 20 m, PUR, black, Ø 4.5 mm, 4 x 0.34 mm², core colours BN, WH, BU, BK
• Ratings: 4 A, 250 V, more than 100 mating cycles
• Housing: TPU, nickel-plated brass coupling nut, FPM/FKM seal
• Environment: IP67, IP69K (only when screwed in); -50...+80°C fixed, -25...+80°C mobile, -25...+60°C in a drag chain
• Drag chain: at least 5 million bending cycles, up to 3.3 m/s and 5 m/s², bending radius ≥10 x Ø, torsion ±180°/m

The jacket resists chemicals, UV radiation, oils, welding sparks and abrasion, is flame retardant (FT2 per UL 1581, IEC 60332-2-2) and free from halogen, silicone, PVC and LABS. Approval: cULus.

RKC4.4T-25/TXL is a TURCK connection cable with a straight M12 female connector (4-pin) on one end and open cores on the other. The PUR jacket is rated for moving installation, including drag chains.

• Connector: M12 x 1, female, straight, A-coded, 4-pin, gold-plated brass (CuZn) contacts
• Cable: 25 m, PUR, black, Ø 4.5 mm, 4 x 0.34 mm², core colours BN, WH, BU, BK
• Ratings: 4 A, 250 V, more than 100 mating cycles
• Housing: TPU, nickel-plated brass coupling nut, FPM/FKM seal
• Environment: IP67, IP69K (only when screwed in); -50...+80°C fixed, -25...+80°C mobile, -25...+60°C in a drag chain
• Drag chain: at least 5 million bending cycles, up to 3.3 m/s and 5 m/s², bending radius ≥10 x Ø, torsion ±180°/m

The jacket resists chemicals, UV radiation, oils, welding sparks and abrasion, is flame retardant (FT2 per UL 1581, IEC 60332-2-2) and free from halogen, silicone, PVC and LABS. Approval: cULus.

WSC4.4T-5/TXL is a TURCK connection cable with an angled M12 male connector (4-pin) on one end and open cores on the other.

• Connector: M12 x 1, male, angled, A-coded, 4-pin, gold-plated brass (CuZn) contacts
• Cable: 5 m, PUR, black, Ø 4.5 mm, 4 x 0.34 mm², core colours BN, WH, BU, BK
• Ratings: 4 A, 250 V, more than 100 mating cycles
• Housing: TPU, nickel-plated brass coupling nut
• Environment: IP67, IP69K (only when screwed in); -50...+80°C fixed, -25...+80°C mobile, -25...+60°C in a drag chain
• Drag chain: at least 5 million bending cycles, up to 3.3 m/s and 5 m/s², bending radius ≥10 x Ø, torsion ±180°/m

The PUR jacket resists chemicals, UV radiation, oils, welding sparks and abrasion, is flame retardant (FT2 per UL 1581, IEC 60332-2-2) and free from halogen, silicone, PVC and LABS. Approval: cULus.

RSS4.4T-2/TXL is a TURCK shielded connection cable with a straight M12 male connector (4-pin) on one end and open cores on the other. The cable shield is connected to the coupling nut.

• Connector: M12 x 1, male, straight, A-coded, 4-pin, gold-plated brass (CuZn) contacts
• Cable: 2 m, PUR, black, Ø 5.3 mm, 4 x 0.34 mm², core colours BN, WH, BU, BK
• Shield: aluminium foil and tinned copper wire
• Ratings: 4 A, 250 V, more than 100 mating cycles
• Housing: TPU, nickel-plated brass coupling nut
• Environment: IP67, IP69K (only when screwed in); -50...+80°C fixed, -25...+80°C mobile, -25...+60°C in a drag chain

The PUR jacket is rated for drag chains: at least 2 million bending cycles, up to 3.3 m/s and 5 m/s², bending radius ≥10 x Ø. It resists chemicals, UV radiation, oils, welding sparks and abrasion, is flame retardant (FT2 per UL 1581, IEC 60332-2-2) and free from halogen, silicone, PVC and LABS.

Approval: cULus.

BK7-0 is a TURCK field-wireable M16 x 0.75 female connector, straight, 7-pin, for 6...8 mm cable.

• Connector: M16 x 0.75, female, straight, 7-pin, silver-plated bronze (CuSn) contacts, more than 500 mating cycles
• Ratings: 5 A, 60 V
• Connection: conductors up to 0.75 mm², cable diameter 6...8 mm, PG9 screw-in thread
• Housing: black PA body, PBT (UL 94 V0) contact carrier, nickel-plated die-cast zinc (GD-Zn) coupling nut
• Environment: -40...+95°C fixed

HT-WWAK4-2/S2430 is a TURCK high-temperature connection cable with an angled M12 female connector (4-pin) on one end and open cores on the other.

• Connector: M12 x 1, female, angled, 4-pin, gold-plated brass (CuZn) contacts, more than 100 mating cycles
• Cable: 2 m, PTFE, white, Ø 3.8 mm, 4 x 0.34 mm², PTFE core insulation, core colours BN, WH, BU, BK
• Ratings: 4 A, 250 V
• Housing: black glass-fibre reinforced PBT, nickel-plated brass coupling nut, FPM/FKM seal
• Environment: IP65 (only when screwed in); -20...+150°C fixed

The PTFE cable itself is rated for -190...+260°C. The jacket stays flexible in cold and heat, resists welding sparks, chemicals, UV radiation, oils, acids, alkaline solutions, microbes and hydrolysis, is flame retardant and LABS free. RoHS compliant.

VC-AC21-11.024-K is a TURCK field-wireable design A valve connector, 2+PE, with screw-clamp terminals for 6...8 mm cable, a yellow switching-state LED and varistor protective circuitry.

• Connector: valve connector design A, 2+PE, metal contacts, more than 50 plug cycles
• Ratings: 10 A, 24 V
• Connection: screw-clamp terminals, conductors up to 1 mm² (3 x 1 mm²), cable diameter 6...8 mm, M20 x 1.5 screw-in thread, M3 x 33.5 central screw
• Housing: transparent PA6-I body, black PA6 GF30 contact carrier, NBR seal
• Environment: IP65 (mounted); -25...+80°C fixed

Supplied with the central screw, pressure screw, seal, sealing ring and pressure ring.

VB2-FSM5-2FKM5 is a TURCK Y-splitter without cable with one M12 male connector (5-pin) and two M12 female connectors (5-pin). The two female connectors are wired in parallel.

• Connectors: M12 male, 5-pin / 2 x M12 female, 5-pin, straight, gold-plated brass (CuZn) contacts, more than 100 mating cycles
• Ratings: 4 A, 60 V, contact resistance ≤5 mΩ, insulation resistance ≥10⁸ Ω
• Housing: black TPU, nickel-plated brass coupling nuts
• Environment: IP67 (only when screwed in); -30...+90°C

RoHS compliant.

PKW4M-P7X2-10/TEL is a TURCK connection cable with an angled M8 female connector (4-pin) on one end and open cores on the other. A two-colour LED is built into the connector.

• Connector: M8 x 1, female, angled, 4-pin, gold-plated brass (CuZn) contacts
• Indication: two-colour LED (PNP) – green shows supply, yellow shows switching state
• Cable: 10 m, PVC, black, Ø 4.6 mm, 4 x 0.34 mm², core colours BN, WH, BU, BK
• Ratings: 4 A, 30 VDC, more than 100 mating cycles
• Housing: translucent TPU, nickel-plated brass coupling nut, FPM/FKM seal
• Environment: IP67, IP69K (only when screwed in); -40...+105°C fixed, -5...+80°C mobile

The jacket resists chemicals, oils, acids, alkaline solutions, microbes and hydrolysis, is flame retardant and free from LABS. Approval: cULus.

RKC4.5T-20/TXL is a TURCK connection cable with a straight M12 female connector (5-pin) on one end and open cores on the other. The PUR jacket is rated for moving installation, including drag chains.

• Connector: M12 x 1, female, straight, A-coded, 5-pin, gold-plated brass (CuZn) contacts
• Cable: 20 m, PUR, black, Ø 4.8 mm, 5 x 0.34 mm², core colours BN, WH, BU, BK, GY
• Ratings: 4 A, 60 V, more than 100 mating cycles
• Housing: TPU, nickel-plated brass coupling nut, FPM/FKM seal
• Environment: IP67, IP69K (only when screwed in); -50...+80°C fixed, -25...+80°C mobile, -25...+60°C in a drag chain
• Drag chain: at least 5 million bending cycles, up to 3.3 m/s and 5 m/s², bending radius ≥10 x Ø, torsion ±180°/m

The jacket resists chemicals, UV radiation, oils, welding sparks and abrasion, is flame retardant (FT2 per UL 1581, IEC 60332-2-2) and free from halogen, silicone, PVC and LABS. Approval: cULus.

RKS4.5T-30/TXL is a TURCK shielded connection cable with a straight M12 female connector (5-pin) on one end and open cores on the other. The cable shield is connected to the coupling nut.

• Connector: M12 x 1, female, straight, A-coded, 5-pin, gold-plated brass (CuZn) contacts
• Cable: 30 m, PUR, black, Ø 5.7 mm, 5 x 0.34 mm², core colours BN, WH, BU, BK, GY
• Shield: aluminium foil and tinned copper wire
• Ratings: 4 A, 60 V, more than 100 mating cycles
• Housing: TPU, nickel-plated brass coupling nut, FPM/FKM seal
• Environment: IP67, IP69K (only when screwed in); -50...+80°C fixed, -25...+80°C mobile, -25...+60°C in a drag chain

The PUR jacket is rated for drag chains: at least 2 million bending cycles, up to 3.3 m/s and 5 m/s², bending radius ≥10 x Ø. It resists chemicals, UV radiation, oils, welding sparks and abrasion, is flame retardant (FT2 per UL 1581, IEC 60332-2-2) and free from halogen, silicone, PVC and LABS.

Approval: cULus.

RKS4.5T-20/TEL is a TURCK shielded connection cable with a straight M12 female connector (5-pin) on one end and open cores on the other. The cable shield is connected to the coupling nut.

• Connector: M12 x 1, female, straight, A-coded, 5-pin, gold-plated brass (CuZn) contacts
• Cable: 20 m, PVC, black, Ø 6.1 mm, 5 x 0.34 mm², core colours BN, WH, BU, BK, GY
• Shield: aluminium foil and tinned copper wire
• Ratings: 4 A, 60 V, more than 100 mating cycles
• Housing: TPU, nickel-plated brass coupling nut, FPM/FKM seal
• Environment: IP67, IP69K (only when screwed in); -40...+105°C fixed, 0...+80°C mobile

The PVC jacket resists chemicals, oils, acids, alkaline solutions, microbes and hydrolysis, is flame retardant and free from LABS.

Approval: cULus.

PKW4M-10/TEL is a TURCK connection cable with an angled M8 female connector (4-pin) on one end and open cores on the other.

• Connector: M8 x 1, female, angled, 4-pin, gold-plated brass (CuZn) contacts
• Cable: 10 m, PVC, black, Ø 4.6 mm, 4 x 0.34 mm², core colours BN, WH, BU, BK
• Ratings: 4 A, 50 VAC / 60 VDC, more than 100 mating cycles
• Housing: TPU, nickel-plated brass coupling nut, FPM/FKM seal
• Environment: IP67, IP69K (only when screwed in); -40...+105°C fixed, -5...+80°C mobile

The jacket resists chemicals, oils, acids, alkaline solutions, microbes and hydrolysis, is flame retardant and free from LABS. Approval: cULus.

RSC4.4T-1/TXL is a TURCK connection cable with a straight M12 male connector (A-coded, 4-pin) on one end and open cores on the other.

• Connector: M12 x 1, male, straight, A-coded, 4-pin, gold-plated brass (CuZn) contacts
• Cable: 1 m, PUR, black, Ø 4.5 mm, 4 x 0.34 mm², core colours BN, WH, BU, BK
• Ratings: 4 A, 250 V, test voltage 2000 V, more than 100 mating cycles
• Housing: black TPU, nickel-plated brass coupling nut
• Environment: IP67, IP69K (only when screwed in); -50...+80°C fixed, -25...+80°C mobile, -25...+60°C in a drag chain
• Drag chain: at least 5 million bending cycles, up to 3.3 m/s and 5 m/s², bending radius ≥10 x Ø, torsion ±180°/m

The PUR jacket resists chemicals, UV radiation, oils, welding sparks and abrasion, is flame retardant (FT2 per UL 1581, IEC 60332-2-2) and free from halogen, silicone, PVC and LABS. Approval: cULus.

RKC5.501T-30/TXL is a TURCK connection cable with a straight M12 female connector (4-pin) on one end and open cores on the other. The PUR jacket is rated for moving installation, including drag chains.

• Connector: M12 x 1, female, straight, A-coded, 4-pin, gold-plated brass (CuZn) contacts
• Cable: 30 m, PUR, black, shielded, Ø 5.3 mm, 4 x 0.34 mm², core colours BN, WH, BU, BK
• Ratings: 4 A, 60 V, more than 100 mating cycles
• Housing: TPU, nickel-plated brass coupling nut, FPM/FKM seal
• Environment: IP67, IP69K (only when screwed in); -50...+80°C fixed, -25...+80°C mobile, -25...+60°C in a drag chain
• Drag chain: at least 5 million bending cycles, up to 3.3 m/s and 5 m/s², bending radius ≥10 x Ø, torsion ±180°/m

The jacket resists chemicals, UV radiation, oils, welding sparks and abrasion, is flame retardant (FT2 per UL 1581, IEC 60332-2-2) and free from halogen, silicone, PVC and LABS. Approval: cULus.

RKS4.4T-40/TXL is a TURCK shielded connection cable with a straight M12 female connector (4-pin) on one end and open cores on the other. The cable shield is connected to the coupling nut.

• Connector: M12 x 1, female, straight, A-coded, 4-pin, gold-plated brass (CuZn) contacts
• Cable: 40 m, PUR, black, Ø 5.3 mm, 4 x 0.34 mm², core colours BN, WH, BU, BK
• Shield: aluminium foil and tinned copper wire
• Ratings: 4 A, 250 V, more than 100 mating cycles
• Housing: TPU, nickel-plated brass coupling nut, FPM/FKM seal
• Environment: IP67, IP69K (only when screwed in); -50...+80°C fixed, -25...+80°C mobile, -25...+60°C in a drag chain

The PUR jacket is rated for drag chains: at least 2 million bending cycles, up to 3.3 m/s and 5 m/s², bending radius ≥10 x Ø. It resists chemicals, UV radiation, oils, welding sparks and abrasion, is flame retardant (FT2 per UL 1581, IEC 60332-2-2) and free from halogen, silicone, PVC and LABS.

Approval: cULus.

RKS4.4T-50/TXL is a TURCK shielded connection cable with a straight M12 female connector (4-pin) on one end and open cores on the other. The cable shield is connected to the coupling nut.

• Connector: M12 x 1, female, straight, A-coded, 4-pin, gold-plated brass (CuZn) contacts
• Cable: 50 m, PUR, black, Ø 5.3 mm, 4 x 0.34 mm², core colours BN, WH, BU, BK
• Shield: aluminium foil and tinned copper wire
• Ratings: 4 A, 250 V, more than 100 mating cycles
• Housing: TPU, nickel-plated brass coupling nut, FPM/FKM seal
• Environment: IP67, IP69K (only when screwed in); -50...+80°C fixed, -25...+80°C mobile, -25...+60°C in a drag chain

The PUR jacket is rated for drag chains: at least 2 million bending cycles, up to 3.3 m/s and 5 m/s², bending radius ≥10 x Ø. It resists chemicals, UV radiation, oils, welding sparks and abrasion, is flame retardant (FT2 per UL 1581, IEC 60332-2-2) and free from halogen, silicone, PVC and LABS.

Approval: cULus.

VBRS4.4-2RKC4T-2/2/TXL is a TURCK Y-splitter with a straight M12 male connector (4-pin) and two straight M12 female connectors (3-pin) on 2 m PUR cable branches. Pin 4 of the male connector is wired to pin 4 of the first branch (BK1), pin 2 to pin 4 of the second branch (BK2), and the supply (pin 1 +, pin 3 -) is shared by both branches.

• Connectors: M12 x 1 male, 4-pin / 2 x M12 x 1 female, 3-pin, all straight, gold-plated brass (CuZn) contacts
• Cable: 2 x 2 m, PUR, black, Ø 4.3 mm, 3 x 0.34 mm², core colours BN, BU, BK
• Ratings: 4 A, 250 V, more than 100 mating cycles
• Housing: TPU, nickel-plated brass coupling nuts, FPM/FKM seal; tightening torque 0.8...1 Nm
• Environment: IP67 (only when screwed in); -50...+80°C fixed, -25...+80°C mobile, -25...+60°C in a drag chain

Two sensors switching on pin 4 therefore share one two-channel M12 port.

The PUR jacket is rated for drag chains: at least 5 million bending cycles, up to 3.3 m/s and 5 m/s², bending radius ≥10 x Ø, torsion ±180°/m. It resists chemicals, UV radiation, oils and abrasion, is flame retardant (FT2 per UL 1581, IEC 60332-2-2) and free from halogen, silicone, PVC and LABS.

RoHS compliant.

VBRS4.4-2WKC4.324T-5/5/TXL is a TURCK Y-splitter with a straight M12 male connector and two angled M12 female connectors on 5 m PUR cable branches. Pin 4 of the male connector is wired to pins 2 and 4 of the first branch, pin 2 to pins 2 and 4 of the second branch, and the supply (pin 1 +, pin 3 -) is shared by both branches.

• Connectors: M12 x 1 male, straight / 2 x M12 x 1 female, angled; all 4-pin, gold-plated brass (CuZn) contacts
• Cable: 2 x 5 m, PUR, black, Ø 4.3 mm, 3 x 0.34 mm², core colours BN, BU, BK
• Ratings: 4 A, 250 V, more than 100 mating cycles
• Housing: TPU, nickel-plated brass coupling nuts, FPM/FKM seal; tightening torque 0.8...1 Nm
• Environment: IP67 (only when screwed in); -50...+80°C fixed, -25...+80°C mobile, -25...+60°C in a drag chain
• Drag chain: at least 5 million bending cycles, up to 3.3 m/s and 5 m/s², bending radius ≥10 x Ø, torsion ±180°/m

Two sensors therefore share one two-channel M12 port. The PUR jacket resists chemicals, UV radiation, oils and abrasion, is flame retardant (FT2 per UL 1581, IEC 60332-2-2) and free from halogen, silicone, PVC and LABS.

RoHS compliant.

WKC4.4T-15/TEL is a TURCK connection cable with an angled M12 female connector (4-pin) on one end and open cores on the other.

• Connector: M12 x 1, female, angled, A-coded, 4-pin, gold-plated brass (CuZn) contacts
• Cable: 15 m, PVC, black, Ø 4.6 mm, 4 x 0.34 mm², core colours BN, WH, BU, BK
• Ratings: 4 A, 250 V, more than 100 mating cycles
• Housing: TPU, nickel-plated brass coupling nut, FPM/FKM seal
• Environment: IP67, IP69K (only when screwed in); -40...+105°C fixed, -5...+80°C mobile

The PVC jacket resists chemicals, oils, acids, alkaline solutions, microbes and hydrolysis, is flame retardant and free from LABS. Approval: cULus.

PKG4MS-4.6-22 is a Banner single-ended cordset with a straight 4-pin M8 female connector and flying leads. The cable shield is tied to the coupling nut.

• Connector: M8, female, straight, 4 pins; nickel-plated brass coupling nut, black PVC overmold
• Cable: 4.6 m, black PVC, Ø 5.21 mm, 4 x 22 AWG, shielded
• Ratings: 4 A, 30 V DC
• Environment: IP66, IP67, IP68, -40...+70 °C

CE marked.

STP-M8MRJ45-415 is a Banner Ethernet cordset with a straight 4-pin M8 male connector at one end and an RJ45 plug at the other. The twisted pairs are individually shielded with an overall shield, rated Cat5e.

• Connectors: M8, male, straight, 4 pins, nickel-plated brass nut, black PUR body / RJ45 plug, polycarbonate housing, gold-plated contacts
• Cable: 4.57 m, black PVC, Ø 5 mm, 26 AWG, shield on the M8 nut and RJ45 shell
• Ratings: 0.5 A, 42 V DC
• Environment: IP66, IP67 (M8 end only), -40...+70 °C

RKS4.5T-5/TXL is a TURCK shielded connection cable with a straight M12 female connector (5-pin) on one end and open cores on the other. The cable shield is connected to the coupling nut.

• Connector: M12 x 1, female, straight, A-coded, 5-pin, gold-plated brass (CuZn) contacts
• Cable: 5 m, PUR, black, Ø 5.7 mm, 5 x 0.34 mm², core colours BN, WH, BU, BK, GY
• Shield: aluminium foil and tinned copper wire
• Ratings: 4 A, 60 V, more than 100 mating cycles
• Housing: TPU, nickel-plated brass coupling nut, FPM/FKM seal
• Environment: IP67, IP69K (only when screwed in); -50...+80°C fixed, -25...+80°C mobile, -25...+60°C in a drag chain

The PUR jacket is rated for drag chains: at least 2 million bending cycles, up to 3.3 m/s and 5 m/s², bending radius ≥10 x Ø. It resists chemicals, UV radiation, oils, welding sparks and abrasion, is flame retardant (FT2 per UL 1581, IEC 60332-2-2) and free from halogen, silicone, PVC and LABS.

Approval: cULus.

RKC4.4T-1.5-RSC4.4T/TEL is a TURCK extension cable with a straight M12 female connector on one end and a straight M12 male connector on the other (4-pin). The cable has a black PVC jacket.

• Connectors: M12 x 1 female and M12 x 1 male, both straight, A-coded, 4-pin, gold-plated brass (CuZn) contacts
• Cable: 1.5 m, PVC, black, Ø 4.6 mm, 4 x 0.34 mm², core colours BN, WH, BU, BK
• Ratings: 4 A, 250 V, more than 100 mating cycles
• Housing: TPU, nickel-plated brass coupling nut, FPM/FKM seal
• Environment: IP67, IP69K (only when screwed in); -40...+105°C fixed, -5...+80°C mobile

The jacket resists chemicals, oils, acids, alkaline solutions, microbes and hydrolysis, is flame retardant and free from LABS. Approval: cULus.

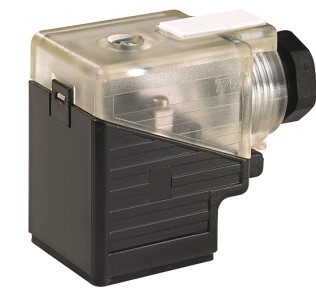

Konektors ar kabeli MSUD valve plug A-18mm with cable PUR 3x0.75 bk UL/CSA+drag ch. 2m Art: 7000-18021-6360200

Konektors ar kabeli MSUD valve plug A-18mm with cable PUR 3x0.75 bk UL/CSA+drag ch. 5m Art: 7000-18021-6360500

RKSV8T-25/TEG1023 is a TURCK shielded connection cable with a straight M12 female connector (8-pin) on one end and open cores on the other. The cable shield is connected to the coupling nut.

• Connector: M12 x 1, female, straight, A-coded, 8-pin, gold-plated brass (CuZn) contacts
• Cable: 25 m, grey (RAL 7035), Ø 6.4 mm, 8 x 0.25 mm², core colours BN, WH, BU, BK, GY, PK, VT, OG
• Shield: aluminium foil and tinned copper wire
• Ratings: 2 A, 30 V, more than 100 mating cycles
• Housing: TPU, grey, stainless steel (V4A) coupling nut, FPM/FKM seal
• Environment: IP67, IP69K (only when screwed in); -40...+105°C fixed, -40...+80°C mobile

The cable jacket resists chemicals, oils, acids, alkaline solutions, microbes and hydrolysis, is flame retardant and free from LABS.

Approval: cULus.

WKC4.4T-30/TEL is a TURCK connection cable with an angled M12 female connector (4-pin) on one end and open cores on the other.

• Connector: M12 x 1, female, angled, A-coded, 4-pin, gold-plated brass (CuZn) contacts
• Cable: 30 m, PVC, black, Ø 4.6 mm, 4 x 0.34 mm², core colours BN, WH, BU, BK
• Ratings: 4 A, 250 V, more than 100 mating cycles
• Housing: TPU, nickel-plated brass coupling nut, FPM/FKM seal
• Environment: IP67, IP69K (only when screwed in); -40...+105°C fixed, -5...+80°C mobile

The PVC jacket resists chemicals, oils, acids, alkaline solutions, microbes and hydrolysis, is flame retardant and free from LABS. Approval: cULus.

WKC4.4T-25/TXL is a TURCK connection cable with an angled M12 female connector (4-pin) on one end and open cores on the other.

• Connector: M12 x 1, female, angled, A-coded, 4-pin, gold-plated brass (CuZn) contacts
• Cable: 25 m, PUR, black, Ø 4.5 mm, 4 x 0.34 mm², core colours BN, WH, BU, BK
• Ratings: 4 A, 250 V, more than 100 mating cycles
• Housing: TPU, nickel-plated brass coupling nut, FPM/FKM seal
• Environment: IP67, IP69K (only when screwed in); -50...+80°C fixed, -25...+80°C mobile, -25...+60°C in a drag chain
• Drag chain: at least 5 million bending cycles, up to 3.3 m/s and 5 m/s², bending radius ≥10 x Ø, torsion ±180°/m

The PUR jacket resists chemicals, UV radiation, oils, welding sparks and abrasion, is flame retardant (FT2 per UL 1581, IEC 60332-2-2) and free from halogen, silicone, PVC and LABS. Approval: cULus.

FW-EWKSM0426-FD-P-0408 is a TURCK field-wireable M12 female connector, angled, with D-coding (4-pin) for Industrial Ethernet. The cores are connected in push-in terminals and the cable shield is picked up by an iris spring onto the metal housing.

• Connector: M12 x 1 female, angled, D-coded, 4-pin, gold-coated bronze (CuSn) contacts with nickel sublayer, more than 100 mating cycles
• Ratings: 48 VAC / 60 VDC, insulation resistance ≥10⁸ Ω
• Connection: push-in terminals for 0.14...0.75 mm² cores (0.08...0.5 mm² with ferrules), cable outer diameter 4...8 mm
• Housing: nickel-plated GD-Zn die-cast zinc body and coupling nut, NBR seal, black PA 6.6 contact carrier
• Environment: IP65, IP67 (assembled and screwed in); -40...+85°C

Approval: cULus. Flammability class UL 94 V0, RoHS compliant.

FW-D9TLEDKU9PG-W-FC-ME-SH-8.5 is a TURCK field-wireable 9-pin Sub-D male connector for PROFIBUS-DP, with a 90° cable outlet and IDC terminals for 6...8 mm cable.

• Connector: Sub-D, male, 90° cable outlet, 9-pin, gold-plated CuZn contacts, more than 200 mating cycles
• Ratings: 4 A, 12 V
• Bus functions: integrated controller for clock rates up to 12 Mbit/s, switchable terminating resistor, LEDs for bus cable functions, integrated PG diagnostic socket
• Connection: IDC terminals, cable diameter 6...8 mm, shieldable
• Housing: die-cast zinc (GD-Zn) body, black PA contact carrier
• Environment: IP20, pollution degree 1; -20...+75°C fixed

Approval: UL.

RKC5T-10/TXL is a TURCK connection cable with a straight M12 female connector (4-pin + PE) on one end and open cores on the other. Pin 5 is the protective earth (PE). The PUR jacket is rated for moving installation, including drag chains.

• Connector: M12 x 1, female, straight, A-coded, 4-pin + PE, gold-plated brass (CuZn) contacts
• Cable: 10 m, PUR, black, Ø 4.8 mm, 5 x 0.34 mm², core colours BN, WH, BU, BK, GNYE
• Ratings: 4 A, 60 V, more than 100 mating cycles
• Housing: TPU, nickel-plated brass coupling nut, FPM/FKM seal
• Environment: IP67, IP69K (only when screwed in); -50...+80°C fixed, -25...+80°C mobile, -25...+60°C in a drag chain
• Drag chain: at least 5 million bending cycles, up to 3.3 m/s and 5 m/s², bending radius ≥10 x Ø, torsion ±180°/m

The jacket resists chemicals, UV radiation, oils, welding sparks and abrasion, is flame retardant (FT2 per UL 1581, IEC 60332-2-2) and free from halogen, silicone, PVC and LABS. Approval: cULus.

WKC4T-P7X2-5-PSG3M/TXL is a TURCK adapter cable with an angled M12 female connector on one end and a straight M8 male connector on the other, both 3-pin. The connector has two built-in LED indicators: green shows the supply, yellow the PNP signal on pin 4.

• Connectors: M12 x 1 female, angled, A-coded / M8 x 1 male, straight; both 3-pin, gold-plated brass (CuZn) contacts
• Cable: 5 m, PUR, black, Ø 4.1 mm, 3 x 0.34 mm², core colours BN, BU, BK
• Ratings: 4 A, 30 V DC, more than 100 mating cycles
• Housing: M12 translucent TPU, M8 black TPU; nickel-plated brass coupling nuts, FPM/FKM seal; M8 tightening torque 0.5...0.6 Nm
• Environment: IP67, IP69K (only when screwed in); -50...+80°C fixed, -25...+80°C mobile, -25...+60°C in a drag chain
• Drag chain: at least 5 million bending cycles, up to 3.3 m/s and 5 m/s², bending radius ≥10 x Ø, torsion ±180°/m

The PUR jacket resists chemicals, UV radiation, oils, welding sparks and abrasion, is flame retardant (FT2 per UL 1581, IEC 60332-2-2) and free from halogen, silicone, PVC and LABS. Approval: cULus.

PKG4M-2/TXL is a TURCK connection cable with a straight M8 female connector (4-pin) on one end and open cores on the other. The PUR jacket is rated for moving installation, including drag chains.

• Connector: M8 x 1, female, straight, 4-pin, gold-plated brass (CuZn) contacts
• Cable: 2 m, PUR, black, Ø 4.5 mm, 4 x 0.34 mm², core colours BN, WH, BU, BK
• Ratings: 4 A, 50 VAC / 60 VDC, more than 100 mating cycles
• Housing: TPU, nickel-plated brass coupling nut, FPM/FKM seal
• Environment: IP67, IP69K (only when screwed in); -50...+80°C fixed, -25...+80°C mobile, -25...+60°C in a drag chain
• Drag chain: at least 5 million bending cycles, up to 3.3 m/s and 5 m/s², bending radius ≥10 x Ø, torsion ±180°/m

The jacket resists chemicals, UV radiation, oils, welding sparks and abrasion, is flame retardant (FT2 per UL 1581, IEC 60332-2-2) and free from halogen, silicone, PVC and LABS. Approval: cULus.

FW-EWKPM0514-PL-S-0813 is a TURCK field-wireable M12 Power female connector, angled, 5-pin (4+FE), L-coded, for 8...13 mm cable with screw-clamp terminals.

• Connector: M12 Power, female, angled, L-coded, 5-pin (4+FE), gold-plated brass (CuZn) contacts, more than 100 mating cycles
• Ratings: 12 A, 50 VAC / 63 VDC
• Connection: screw-clamp terminals, conductors up to 1.5 mm² (16 AWG) with ferrule, up to 2.5 mm² (14 AWG) without, cable diameter 8...13 mm
• Housing: black plastic body, grey PA (UL 94 V0) contact carrier, nickel-plated die-cast zinc (GD-Zn) coupling nut, FPM/FKM seal
• Environment: IP67 (screwed together); -40...+85°C fixed

Approval: cULus recognized.

RKC4.4T-40/TXL is a TURCK connection cable with a straight M12 female connector (4-pin) on one end and open cores on the other. The PUR jacket is rated for moving installation, including drag chains.

• Connector: M12 x 1, female, straight, A-coded, 4-pin, gold-plated brass (CuZn) contacts
• Cable: 40 m, PUR, black, Ø 4.5 mm, 4 x 0.34 mm², core colours BN, WH, BU, BK
• Ratings: 4 A, 250 V, more than 100 mating cycles
• Housing: TPU, nickel-plated brass coupling nut, FPM/FKM seal
• Environment: IP67, IP69K (only when screwed in); -50...+80°C fixed, -25...+80°C mobile, -25...+60°C in a drag chain
• Drag chain: at least 5 million bending cycles, up to 3.3 m/s and 5 m/s², bending radius ≥10 x Ø, torsion ±180°/m

The jacket resists chemicals, UV radiation, oils, welding sparks and abrasion, is flame retardant (FT2 per UL 1581, IEC 60332-2-2) and free from halogen, silicone, PVC and LABS. Approval: cULus.

PKG4M-40/TXL is a TURCK connection cable with a straight M8 female connector (4-pin) on one end and open cores on the other. The PUR jacket is rated for moving installation, including drag chains.

• Connector: M8 x 1, female, straight, 4-pin, gold-plated brass (CuZn) contacts
• Cable: 40 m, PUR, black, Ø 4.5 mm, 4 x 0.34 mm², core colours BN, WH, BU, BK
• Ratings: 4 A, 50 VAC / 60 VDC, more than 100 mating cycles
• Housing: TPU, nickel-plated brass coupling nut, FPM/FKM seal
• Environment: IP67, IP69K (only when screwed in); -50...+80°C fixed, -25...+80°C mobile, -25...+60°C in a drag chain
• Drag chain: at least 5 million bending cycles, up to 3.3 m/s and 5 m/s², bending radius ≥10 x Ø, torsion ±180°/m

The jacket resists chemicals, UV radiation, oils, welding sparks and abrasion, is flame retardant (FT2 per UL 1581, IEC 60332-2-2) and free from halogen, silicone, PVC and LABS. Approval: cULus.

PKW3M-5/TXL is a TURCK connection cable with an angled M8 female connector (3-pin) on one end and open cores on the other. The PUR jacket is rated for moving installation, including drag chains.

• Connector: M8 x 1, female, angled, 3-pin, gold-plated brass (CuZn) contacts
• Cable: 5 m, PUR, black, Ø 4.1 mm, 3 x 0.34 mm², core colours BN, BU, BK
• Ratings: 4 A, 50 VAC / 60 VDC, more than 100 mating cycles
• Housing: TPU, nickel-plated brass coupling nut, FPM/FKM seal
• Environment: IP67, IP69K (only when screwed in); -50...+80°C fixed, -25...+80°C mobile, -25...+60°C in a drag chain
• Drag chain: at least 5 million bending cycles, up to 3.3 m/s and 5 m/s², bending radius ≥10 x Ø, torsion ±180°/m

The jacket resists chemicals, UV radiation, oils, welding sparks and abrasion, is flame retardant (FT2 per UL 1581, IEC 60332-2-2) and free from halogen, silicone, PVC and LABS. Approval: cULus.

BMSWS8151-8.5 is a field-wireable M12 male connector for PROFIBUS-DP. It is assembled on site onto a cut length of bus cable, so a damaged connector or an awkward cable run can be repaired without replacing a whole cordset. The cable screen is picked up by an iris spring and carried through to the metal housing.

• Connector: M12 × 1 male, straight, B-coded, 5-pin, gold-plated CuZn contacts
• Bus: PROFIBUS-DP up to 12 Mbit/s, overall shield connected via iris spring
• Rating: 4 A, 125 V, contact resistance ≤ 3 mΩ, over 100 mating cycles
• Termination: screw/clamp connection for 0.37...0.75 mm² cores, cable diameter 6...8.5 mm
• Housing: nickel-plated die-cast zinc with M18 × 1 screw-in thread, 62 mm long
• IP67 when screwed together, −25 °C to +85 °C, cULus recognized

It is used to terminate PROFIBUS-DP segments at drives, remote I/O and field devices, and for repairs in cabinets and on machines where a pre-moulded cordset cannot be routed. No crimping tool is needed — the cores are clamped and the gland is tightened by hand.

RSSD-RSSD-4422-0.3M is a TURCK Industrial Ethernet cable with a straight M12 male connector on one end and a straight M12 male connector on the other (4-pin). The 4-wire CAT 5e cable carries 100 Mbit/s Ethernet and PROFINET.

• Connectors: M12 x 1 male, straight, D-coded / M12 x 1 male, straight, D-coded; 4-pin
• Cable: 0.3 m, PUR, green, Ø 6.5 mm, 4 x 0.32 mm², core colours WH, YE, BU, OG, overall shield of aluminium foil and tinned copper braid
• Ratings: 4 A, 30 V; CAT 5e, impedance 100 Ω, capacitance 50 pF/m
• Housing: TPU, nickel-plated brass coupling nuts
• Environment: IP67 (only when screwed in); -40...+80°C fixed, -30...+80°C mobile
• Drag chain: at least 5 million bending cycles, bending radius ≥15 x Ø, torsion ±180°/m

The green PUR jacket is halogen free (IEC 60754), oil resistant (IEC 60811-2-1) and flame retardant (IEC 60332-1-2); the cable is RoHS compliant and PNO compliant for PROFINET. Approval: UL Listed.

VB2-FSM4.4-2MFK3 is a TURCK Y-splitter without cable with one M12 male connector (4-pin) and two M8 female connectors (3-pin).

• Connectors: M12 male, 4-pin / 2 x M8 female, 3-pin, straight, gold-plated brass (CuZn) contacts, more than 100 mating cycles
• Ratings: 4 A, 50 V, contact resistance ≤5 mΩ, insulation resistance ≥10⁸ Ω
• Housing: black TPU, nickel-plated brass coupling nuts
• Environment: IP67 (only when screwed in); -30...+90°C

RoHS compliant.

WKC4.4T-40/TXL is a TURCK connection cable with an angled M12 female connector (4-pin) on one end and open cores on the other.

• Connector: M12 x 1, female, angled, A-coded, 4-pin, gold-plated brass (CuZn) contacts
• Cable: 40 m, PUR, black, Ø 4.5 mm, 4 x 0.34 mm², core colours BN, WH, BU, BK
• Ratings: 4 A, 250 V, more than 100 mating cycles
• Housing: TPU, nickel-plated brass coupling nut, FPM/FKM seal
• Environment: IP67, IP69K (only when screwed in); -50...+80°C fixed, -25...+80°C mobile, -25...+60°C in a drag chain
• Drag chain: at least 5 million bending cycles, up to 3.3 m/s and 5 m/s², bending radius ≥10 x Ø, torsion ±180°/m

The PUR jacket resists chemicals, UV radiation, oils, welding sparks and abrasion, is flame retardant (FT2 per UL 1581, IEC 60332-2-2) and free from halogen, silicone, PVC and LABS. Approval: cULus.

PKW4M-2/TXL is a TURCK connection cable with an angled M8 female connector (4-pin) on one end and open cores on the other. The PUR jacket is rated for moving installation, including drag chains.

• Connector: M8 x 1, female, angled, 4-pin, gold-plated brass (CuZn) contacts
• Cable: 2 m, PUR, black, Ø 4.5 mm, 4 x 0.34 mm², core colours BN, WH, BU, BK
• Ratings: 4 A, 50 VAC / 60 VDC, more than 100 mating cycles
• Housing: TPU, nickel-plated brass coupling nut, FPM/FKM seal
• Environment: IP67, IP69K (only when screwed in); -50...+80°C fixed, -25...+80°C mobile, -25...+60°C in a drag chain
• Drag chain: at least 5 million bending cycles, up to 3.3 m/s and 5 m/s², bending radius ≥10 x Ø, torsion ±180°/m

The jacket resists chemicals, UV radiation, oils, welding sparks and abrasion, is flame retardant (FT2 per UL 1581, IEC 60332-2-2) and free from halogen, silicone, PVC and LABS. Approval: cULus.
