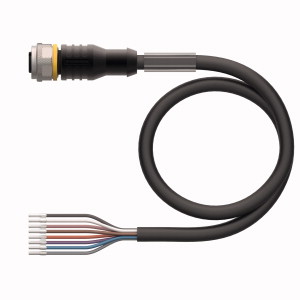

RKC8T-15/TXL is a TURCK connection cable with a straight M12 female connector (8-pin) on one end and open cores on the other. The PUR jacket is rated for moving installation, including drag chains.

• Connector: M12 x 1, female, straight, A-coded, 8-pin, gold-plated brass (CuZn) contacts
• Cable: 15 m, PUR, black, Ø 5.8 mm, 8 x 0.25 mm², core colours BN, WH, BU, BK, GY, PK, VT, OG
• Ratings: 2 A, 30 V, more than 100 mating cycles
• Housing: TPU, nickel-plated brass coupling nut, FPM/FKM seal
• Environment: IP67, IP69K (only when screwed in); -50...+80°C fixed, -25...+80°C mobile, -25...+60°C in a drag chain
• Drag chain: at least 5 million bending cycles, up to 3.3 m/s and 5 m/s², bending radius ≥10 x Ø, torsion ±180°/m

The jacket resists chemicals, UV radiation, oils, welding sparks and abrasion, is flame retardant (FT2 per UL 1581, IEC 60332-2-2) and free from halogen, silicone, PVC and LABS. Approval: cULus.

RKC4.4T-30/TEL is a TURCK connection cable with a straight M12 female connector (4-pin) on one end and open cores on the other.

• Connector: M12 x 1, female, straight, A-coded, 4-pin, gold-plated brass (CuZn) contacts
• Cable: 30 m, PVC, black, Ø 4.6 mm, 4 x 0.34 mm², core colours BN, WH, BU, BK
• Ratings: 4 A, 250 V, more than 100 mating cycles
• Housing: TPU, nickel-plated brass coupling nut, FPM/FKM seal
• Environment: IP67, IP69K (only when screwed in); -40...+105°C fixed, -5...+80°C mobile

The jacket resists chemicals, oils, acids, alkaline solutions, microbes and hydrolysis, is flame retardant and free from LABS. Approval: cULus.

RKC4.4T-25/TEL is a TURCK connection cable with a straight M12 female connector (4-pin) on one end and open cores on the other.

• Connector: M12 x 1, female, straight, A-coded, 4-pin, gold-plated brass (CuZn) contacts
• Cable: 25 m, PVC, black, Ø 4.6 mm, 4 x 0.34 mm², core colours BN, WH, BU, BK
• Ratings: 4 A, 250 V, more than 100 mating cycles
• Housing: TPU, nickel-plated brass coupling nut, FPM/FKM seal
• Environment: IP67, IP69K (only when screwed in); -40...+105°C fixed, -5...+80°C mobile

The jacket resists chemicals, oils, acids, alkaline solutions, microbes and hydrolysis, is flame retardant and free from LABS. Approval: cULus.

RKC4.5T-20/TEL is a TURCK connection cable with a straight M12 female connector (5-pin) on one end and open cores on the other. The cable has a black PVC jacket.

• Connector: M12 x 1, female, straight, A-coded, 5-pin, gold-plated brass (CuZn) contacts
• Cable: 20 m, PVC, black, Ø 5 mm, 5 x 0.34 mm², core colours BN, WH, BU, BK, GY
• Ratings: 4 A, 60 V, more than 100 mating cycles
• Housing: TPU, nickel-plated brass coupling nut, FPM/FKM seal
• Environment: IP67, IP69K (only when screwed in); -40...+105°C fixed, -5...+80°C mobile

The jacket resists chemicals, oils, acids, alkaline solutions, microbes and hydrolysis, is flame retardant and free from LABS. Approval: cULus.

PKG4M-30/TEL is a TURCK connection cable with a straight M8 female connector (4-pin) on one end and open cores on the other.

• Connector: M8 x 1, female, straight, 4-pin, gold-plated brass (CuZn) contacts
• Cable: 30 m, PVC, black, Ø 4.6 mm, 4 x 0.34 mm², core colours BN, WH, BU, BK
• Ratings: 4 A, 50 VAC / 60 VDC, more than 100 mating cycles
• Housing: TPU, nickel-plated brass coupling nut, FPM/FKM seal
• Environment: IP67, IP69K (only when screwed in); -40...+105°C fixed, -5...+80°C mobile

The jacket resists chemicals, oils, acids, alkaline solutions, microbes and hydrolysis, is flame retardant and free from LABS. Approval: cULus.

PKG4M-25/TEL is a TURCK connection cable with a straight M8 female connector (4-pin) on one end and open cores on the other.

• Connector: M8 x 1, female, straight, 4-pin, gold-plated brass (CuZn) contacts
• Cable: 25 m, PVC, black, Ø 4.6 mm, 4 x 0.34 mm², core colours BN, WH, BU, BK
• Ratings: 4 A, 50 VAC / 60 VDC, more than 100 mating cycles
• Housing: TPU, nickel-plated brass coupling nut, FPM/FKM seal
• Environment: IP67, IP69K (only when screwed in); -40...+105°C fixed, -5...+80°C mobile

The jacket resists chemicals, oils, acids, alkaline solutions, microbes and hydrolysis, is flame retardant and free from LABS. Approval: cULus.

PKG4M-20/TEL is a TURCK connection cable with a straight M8 female connector (4-pin) on one end and open cores on the other.

• Connector: M8 x 1, female, straight, 4-pin, gold-plated brass (CuZn) contacts
• Cable: 20 m, PVC, black, Ø 4.6 mm, 4 x 0.34 mm², core colours BN, WH, BU, BK
• Ratings: 4 A, 50 VAC / 60 VDC, more than 100 mating cycles
• Housing: TPU, nickel-plated brass coupling nut, FPM/FKM seal
• Environment: IP67, IP69K (only when screwed in); -40...+105°C fixed, -5...+80°C mobile

The jacket resists chemicals, oils, acids, alkaline solutions, microbes and hydrolysis, is flame retardant and free from LABS. Approval: cULus.

PSW4M-5/TXL is a TURCK connection cable with an angled M8 male connector (4-pin) on one end and open cores on the other.

• Connector: M8 x 1, male, angled, 4-pin, gold-plated brass (CuZn) contacts
• Cable: 5 m, PUR, black, Ø 4.5 mm, 4 x 0.34 mm², core colours BN, WH, BU, BK
• Ratings: 4 A, 50 VAC/60 VDC, more than 100 mating cycles
• Housing: TPU, nickel-plated brass coupling nut
• Environment: IP67, IP69K (only when screwed in); -50...+80°C fixed, -25...+80°C mobile, -25...+60°C in a drag chain

The PUR jacket is rated for drag chains: at least 5 million bending cycles, up to 3.3 m/s and 5 m/s², bending radius ≥10 x Ø. It resists chemicals, UV radiation, oils, welding sparks and abrasion, is flame retardant (FT2 per UL 1581, IEC 60332-2-2) and free from halogen, silicone, PVC and LABS.

Approval: cULus.

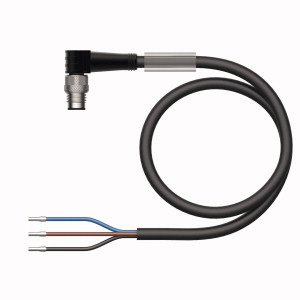

PSW3M-5/TXL is a TURCK sensor and actuator cable with a angled M8 male connector (3-pin) on one end and open cores on the other, for connecting sensors and actuators with an M8 female socket to a terminal box or controller.

• Connector: M8 x 1 male, angled, 3-pin, gold-plated brass (CuZn) contacts, black TPU body, nickel-plated brass coupling nut
• Cable: 5 m, PUR, black, Ø 4.1 mm, 3 x 0.34 mm², PP core insulation, core colours BN, BU, BK
• Ratings: 4 A, 50 VAC / 60 VDC, test voltage 2000 V, more than 100 mating cycles
• Environment: IP67, IP69K (only when screwed in); -50...+80°C fixed, -25...+80°C mobile, -25...+60°C in a drag chain

The black PUR jacket is rated for drag chains: at least 5 million bending cycles, up to 3.3 m/s and 5 m/s², bending radius ≥10 x Ø, torsion ±180°/m. It resists chemicals, UV radiation, oils, welding sparks and abrasion, is flame retardant (FT2 per UL 1581, IEC 60332-2-2) and free from halogen, silicone, PVC and LABS.

Approval: cULus.

RKS4.4T-10-RSS4.4T/TXL is a TURCK shielded M12 connection cable with a straight female connector on one end and a straight male connector on the other (4-pin, A-coded). The cable shield is connected to the coupling nuts.

• Connectors: M12 x 1 female / male, straight, A-coded, 4-pin, gold-plated brass (CuZn) contacts
• Cable: 10 m, PUR, black, Ø 5.3 mm, 4 x 0.34 mm², core colours BN, WH, BU, BK
• Shield: aluminium foil and tinned copper wire
• Ratings: 4 A, 250 V, more than 100 mating cycles
• Housing: TPU, nickel-plated brass coupling nuts, FPM/FKM seal
• Environment: IP67, IP69K (only when screwed in); -50...+80°C fixed, -25...+80°C mobile, -25...+60°C in a drag chain

The PUR jacket is rated for drag chains: at least 2 million bending cycles, up to 3.3 m/s and 5 m/s², bending radius ≥10 x Ø. It resists chemicals, UV radiation, oils, welding sparks and abrasion, is flame retardant (FT2 per UL 1581, IEC 60332-2-2) and free from halogen, silicone, PVC and LABS.

Approval: cULus.

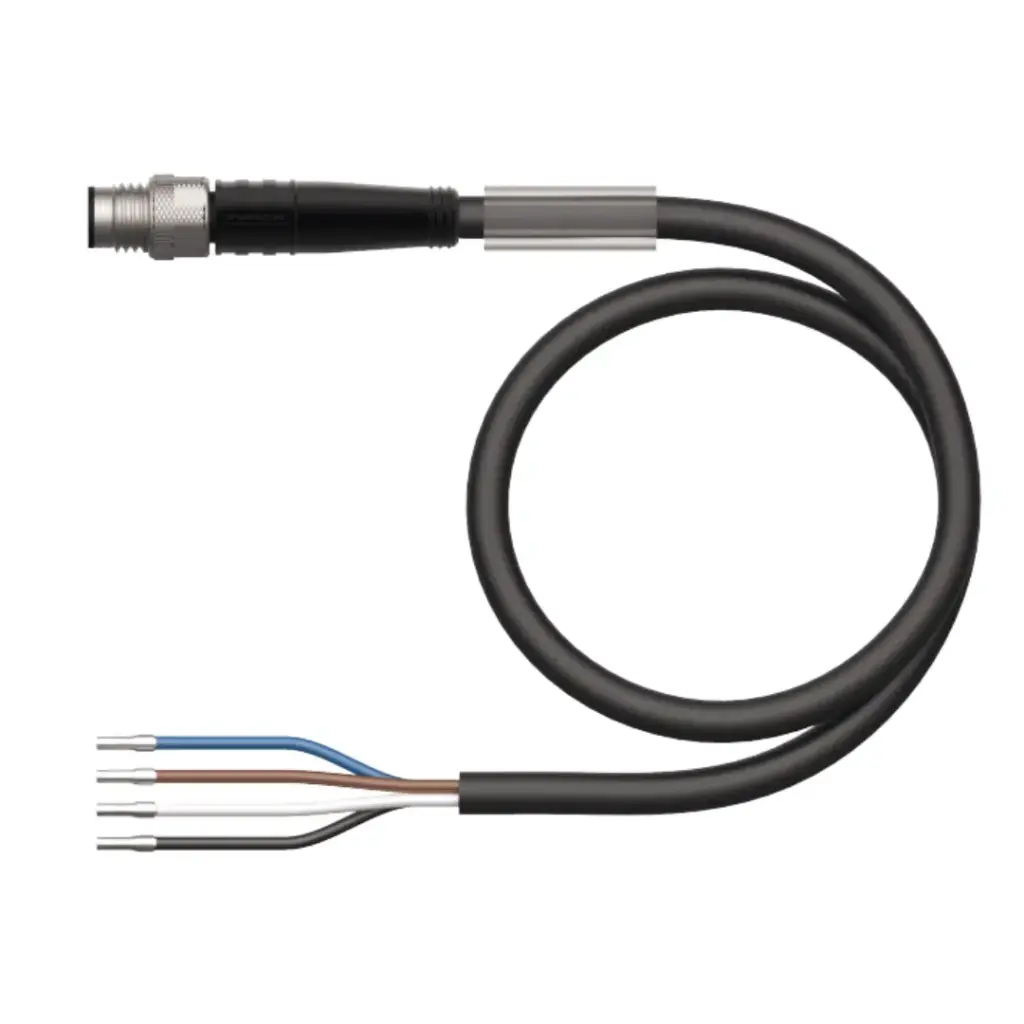

PSG4M-5/TXL is a TURCK sensor and actuator cable with a straight M8 male connector (4-pin) on one end and open cores on the other, for connecting sensors and actuators with an M8 female socket to a terminal box or controller.

• Connector: M8 x 1 male, straight, 4-pin, gold-plated brass (CuZn) contacts, black TPU body, nickel-plated brass coupling nut
• Cable: 5 m, PUR, black, Ø 4.5 mm, 4 x 0.34 mm², PP core insulation, core colours BN, WH, BU, BK
• Ratings: 4 A, 50 VAC / 60 VDC, test voltage 2000 V, more than 100 mating cycles
• Environment: IP67, IP69K (only when screwed in); -50...+80°C fixed, -25...+80°C mobile, -25...+60°C in a drag chain

The black PUR jacket is rated for drag chains: at least 5 million bending cycles, up to 3.3 m/s and 5 m/s², bending radius ≥10 x Ø, torsion ±180°/m. It resists chemicals, UV radiation, oils, welding sparks and abrasion, is flame retardant (FT2 per UL 1581, IEC 60332-2-2) and free from halogen, silicone, PVC and LABS.

Approval: cULus.

PSG3M-5/TXL is a TURCK sensor and actuator cable with a straight M8 male connector (3-pin) on one end and open cores on the other, for connecting sensors and actuators with an M8 female socket to a terminal box or controller.

• Connector: M8 x 1 male, straight, 3-pin, gold-plated brass (CuZn) contacts, black TPU body, nickel-plated brass coupling nut
• Cable: 5 m, PUR, black, Ø 4.1 mm, 3 x 0.34 mm², PP core insulation, core colours BN, BU, BK
• Ratings: 4 A, 50 VAC / 60 VDC, test voltage 2000 V, more than 100 mating cycles
• Environment: IP67, IP69K (only when screwed in); -50...+80°C fixed, -25...+80°C mobile, -25...+60°C in a drag chain

The black PUR jacket is rated for drag chains: at least 5 million bending cycles, up to 3.3 m/s and 5 m/s², bending radius ≥10 x Ø, torsion ±180°/m. It resists chemicals, UV radiation, oils, welding sparks and abrasion, is flame retardant (FT2 per UL 1581, IEC 60332-2-2) and free from halogen, silicone, PVC and LABS.

Approval: cULus.

PKG3M-3/TXL is a TURCK connection cable with a straight M8 female connector (3-pin) on one end and open cores on the other. The PUR jacket is rated for moving installation, including drag chains.

• Connector: M8 x 1, female, straight, 3-pin, gold-plated brass (CuZn) contacts
• Cable: 3 m, PUR, black, Ø 4.1 mm, 3 x 0.34 mm², core colours BN, BU, BK
• Ratings: 4 A, 50 VAC / 60 VDC, more than 100 mating cycles
• Housing: TPU, nickel-plated brass coupling nut, FPM/FKM seal
• Environment: IP67, IP69K (only when screwed in); -50...+80°C fixed, -25...+80°C mobile, -25...+60°C in a drag chain
• Drag chain: at least 5 million bending cycles, up to 3.3 m/s and 5 m/s², bending radius ≥10 x Ø, torsion ±180°/m

The jacket resists chemicals, UV radiation, oils, welding sparks and abrasion, is flame retardant (FT2 per UL 1581, IEC 60332-2-2) and free from halogen, silicone, PVC and LABS. Approval: cULus.

PSG3M-3/TXL is a TURCK sensor and actuator cable with a straight M8 male connector (3-pin) on one end and open cores on the other, for connecting sensors and actuators with an M8 female socket to a terminal box or controller.

• Connector: M8 x 1 male, straight, 3-pin, gold-plated brass (CuZn) contacts, black TPU body, nickel-plated brass coupling nut
• Cable: 3 m, PUR, black, Ø 4.1 mm, 3 x 0.34 mm², PP core insulation, core colours BN, BU, BK
• Ratings: 4 A, 50 VAC / 60 VDC, test voltage 2000 V, more than 100 mating cycles
• Environment: IP67, IP69K (only when screwed in); -50...+80°C fixed, -25...+80°C mobile, -25...+60°C in a drag chain

The black PUR jacket is rated for drag chains: at least 5 million bending cycles, up to 3.3 m/s and 5 m/s², bending radius ≥10 x Ø, torsion ±180°/m. It resists chemicals, UV radiation, oils, welding sparks and abrasion, is flame retardant (FT2 per UL 1581, IEC 60332-2-2) and free from halogen, silicone, PVC and LABS.

Approval: cULus.

RSC4.4T-3/TXG is a TURCK connection cable with a straight M12 male connector (A-coded, 4-pin) on one end and open cores on the other.

• Connector: M12 x 1, male, straight, A-coded, 4-pin, gold-plated brass (CuZn) contacts
• Cable: 3 m, PUR, grey, Ø 4.5 mm, 4 x 0.34 mm², core colours BN, WH, BU, BK
• Ratings: 4 A, 250 V, test voltage 2000 V, more than 100 mating cycles
• Housing: black TPU, nickel-plated brass coupling nut
• Environment: IP67, IP69K (only when screwed in); -50...+80°C fixed, -25...+80°C mobile, -25...+60°C in a drag chain
• Drag chain: at least 5 million bending cycles, up to 3.3 m/s and 5 m/s², bending radius ≥10 x Ø, torsion ±180°/m

The PUR jacket resists chemicals, UV radiation, oils, welding sparks and abrasion, is flame retardant (FT2 per UL 1581, IEC 60332-2-2) and free from halogen, silicone, PVC and LABS. Approval: cULus.

RKC8T-30/TXL is a TURCK connection cable with a straight M12 female connector (8-pin) on one end and open cores on the other. The PUR jacket is rated for moving installation, including drag chains.

• Connector: M12 x 1, female, straight, A-coded, 8-pin, gold-plated brass (CuZn) contacts
• Cable: 30 m, PUR, black, Ø 5.8 mm, 8 x 0.25 mm², core colours BN, WH, BU, BK, GY, PK, VT, OG
• Ratings: 2 A, 30 V, more than 100 mating cycles
• Housing: TPU, nickel-plated brass coupling nut, FPM/FKM seal
• Environment: IP67, IP69K (only when screwed in); -50...+80°C fixed, -25...+80°C mobile, -25...+60°C in a drag chain
• Drag chain: at least 5 million bending cycles, up to 3.3 m/s and 5 m/s², bending radius ≥10 x Ø, torsion ±180°/m

The jacket resists chemicals, UV radiation, oils, welding sparks and abrasion, is flame retardant (FT2 per UL 1581, IEC 60332-2-2) and free from halogen, silicone, PVC and LABS. Approval: cULus.

RKC4.4T-0.3-RSC4.4T/TEL is a TURCK extension cable with a straight M12 female connector on one end and a straight M12 male connector on the other (4-pin). The cable has a black PVC jacket.

• Connectors: M12 x 1 female and M12 x 1 male, both straight, A-coded, 4-pin, gold-plated brass (CuZn) contacts
• Cable: 0.3 m, PVC, black, Ø 4.6 mm, 4 x 0.34 mm², core colours BN, WH, BU, BK
• Ratings: 4 A, 250 V, more than 100 mating cycles
• Housing: TPU, nickel-plated brass coupling nut, FPM/FKM seal
• Environment: IP67, IP69K (only when screwed in); -40...+105°C fixed, -5...+80°C mobile

The jacket resists chemicals, oils, acids, alkaline solutions, microbes and hydrolysis, is flame retardant and free from LABS. Approval: cULus.

RKC4.4T-10-RSC4.4T/TEL is a TURCK extension cable with a straight M12 female connector on one end and a straight M12 male connector on the other (4-pin). The cable has a black PVC jacket.

• Connectors: M12 x 1 female and M12 x 1 male, both straight, A-coded, 4-pin, gold-plated brass (CuZn) contacts
• Cable: 10 m, PVC, black, Ø 4.6 mm, 4 x 0.34 mm², core colours BN, WH, BU, BK
• Ratings: 4 A, 250 V, more than 100 mating cycles
• Housing: TPU, nickel-plated brass coupling nut, FPM/FKM seal
• Environment: IP67, IP69K (only when screwed in); -40...+105°C fixed, -5...+80°C mobile

The jacket resists chemicals, oils, acids, alkaline solutions, microbes and hydrolysis, is flame retardant and free from LABS. Approval: cULus.

RKC4.4T-2-RSC4.4T/TEL is a TURCK extension cable with a straight M12 female connector on one end and a straight M12 male connector on the other (4-pin). The cable has a black PVC jacket.

• Connectors: M12 x 1 female and M12 x 1 male, both straight, A-coded, 4-pin, gold-plated brass (CuZn) contacts
• Cable: 2 m, PVC, black, Ø 4.6 mm, 4 x 0.34 mm², core colours BN, WH, BU, BK
• Ratings: 4 A, 250 V, more than 100 mating cycles
• Housing: TPU, nickel-plated brass coupling nut, FPM/FKM seal
• Environment: IP67, IP69K (only when screwed in); -40...+105°C fixed, -5...+80°C mobile

The jacket resists chemicals, oils, acids, alkaline solutions, microbes and hydrolysis, is flame retardant and free from LABS. Approval: cULus.

RKC8T-0.5-RSC8T/TXL is a TURCK extension cable with a straight M12 female connector on one end and a straight M12 male connector on the other (8-pin). The PUR jacket is rated for moving installation, including drag chains.

• Connectors: M12 x 1 female and M12 x 1 male, both straight, A-coded, 8-pin, gold-plated brass (CuZn) contacts
• Cable: 0.5 m, PUR, black, Ø 5.8 mm, 8 x 0.25 mm², core colours BN, WH, BU, BK, GY, PK, VT, OG
• Ratings: 2 A, 30 V, more than 100 mating cycles
• Housing: TPU, nickel-plated brass coupling nut, FPM/FKM seal
• Environment: IP67, IP69K (only when screwed in); -50...+80°C fixed, -25...+80°C mobile, -25...+60°C in a drag chain
• Drag chain: at least 5 million bending cycles, up to 3.3 m/s and 5 m/s², bending radius ≥10 x Ø, torsion ±180°/m

The jacket resists chemicals, UV radiation, oils, welding sparks and abrasion, is flame retardant (FT2 per UL 1581, IEC 60332-2-2) and free from halogen, silicone, PVC and LABS. Approval: cULus.

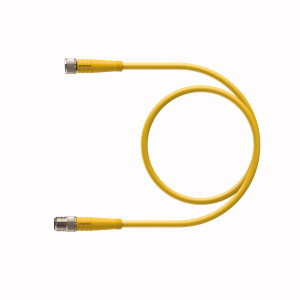

PKG 3M-2-PSG 3M is a TURCK M8 connection cable with a straight female connector on one end and a straight male connector on the other, 3-pin, with a yellow PVC jacket and yellow TPU connector bodies.

• Connectors: M8 x 1 female (3-pin) and M8 x 1 male (3-pin), both straight, gold-plated brass (CuZn) contacts, more than 100 mating cycles
• Cable: 2 m, PVC, yellow, Ø 4.39 mm, 3 x 24 AWG (approx. 0.25 mm²), tinned copper conductors, core colours BN, BU, BK
• Ratings: 4 A, 125 V AC/DC
• Housing: TPU, nickel-plated brass coupling nut, FKM/FPM O-ring
• Environment: female IP67, male IP68, NEMA 1, 3, 4, 6P; -40...+105°C fixed, 5...+105°C mobile

Rated for C-track use: 10 million bending cycles at a bending radius of 20 x Ø (20 °C, 50 % RH, up to 0.5 cycles per second); cold flexibility down to -40°C.

MQDC1-506 is a Banner single-ended M12 cordset with a straight 5-pin female connector and open wire ends for terminal blocks or a controller.

• Connector: M12x1, female, straight, A-coded, 5-pin; length 2 m
• Cable: black PVC, 22 AWG, Ø 5.59 mm, unshielded
• Ratings: 4 A, 30 V
• Coupling nut: nickel-plated brass
• Environment: IP66, IP67, IP68, -40...+70 °C

Wire colours: brown 1, white 2, blue 3, black 4, grey 5. Bend radius more than 10x the cable diameter.

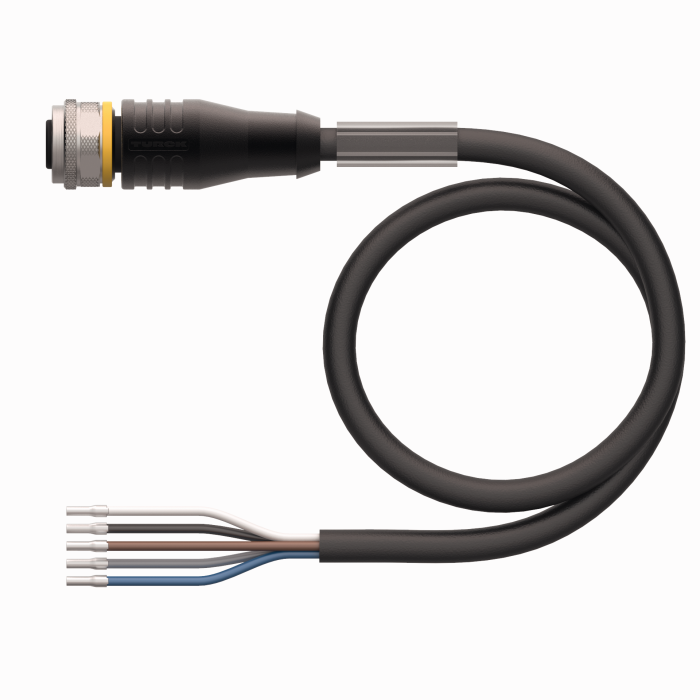

RKS4.4T-5/TEL is a TURCK shielded connection cable with a straight M12 female connector (4-pin) on one end and open cores on the other. The cable shield is connected to the coupling nut.

• Connector: M12 x 1, female, straight, A-coded, 4-pin, gold-plated brass (CuZn) contacts
• Cable: 5 m, PVC, black, Ø 5.4 mm, 4 x 0.34 mm², core colours BN, WH, BU, BK
• Shield: aluminium foil and tinned copper wire
• Ratings: 4 A, 250 V, more than 100 mating cycles
• Housing: TPU, nickel-plated brass coupling nut, FPM/FKM seal
• Environment: IP67, IP69K (only when screwed in); -40...+105°C fixed, 0...+80°C mobile

The PVC jacket resists chemicals, oils, acids, alkaline solutions, microbes and hydrolysis, is flame retardant and free from LABS.

Approval: cULus.

RKS4.4T-10/TXL is a TURCK shielded connection cable with a straight M12 female connector (4-pin) on one end and open cores on the other. The cable shield is connected to the coupling nut.

• Connector: M12 x 1, female, straight, A-coded, 4-pin, gold-plated brass (CuZn) contacts
• Cable: 10 m, PUR, black, Ø 5.3 mm, 4 x 0.34 mm², core colours BN, WH, BU, BK
• Shield: aluminium foil and tinned copper wire
• Ratings: 4 A, 250 V, more than 100 mating cycles
• Housing: TPU, nickel-plated brass coupling nut, FPM/FKM seal
• Environment: IP67, IP69K (only when screwed in); -50...+80°C fixed, -25...+80°C mobile, -25...+60°C in a drag chain

The PUR jacket is rated for drag chains: at least 2 million bending cycles, up to 3.3 m/s and 5 m/s², bending radius ≥10 x Ø. It resists chemicals, UV radiation, oils, welding sparks and abrasion, is flame retardant (FT2 per UL 1581, IEC 60332-2-2) and free from halogen, silicone, PVC and LABS.

Approval: cULus.

PKG4M-10/TXL is a TURCK connection cable with a straight M8 female connector (4-pin) on one end and open cores on the other. The PUR jacket is rated for moving installation, including drag chains.

• Connector: M8 x 1, female, straight, 4-pin, gold-plated brass (CuZn) contacts
• Cable: 10 m, PUR, black, Ø 4.5 mm, 4 x 0.34 mm², core colours BN, WH, BU, BK
• Ratings: 4 A, 50 VAC / 60 VDC, more than 100 mating cycles
• Housing: TPU, nickel-plated brass coupling nut, FPM/FKM seal
• Environment: IP67, IP69K (only when screwed in); -50...+80°C fixed, -25...+80°C mobile, -25...+60°C in a drag chain
• Drag chain: at least 5 million bending cycles, up to 3.3 m/s and 5 m/s², bending radius ≥10 x Ø, torsion ±180°/m

The jacket resists chemicals, UV radiation, oils, welding sparks and abrasion, is flame retardant (FT2 per UL 1581, IEC 60332-2-2) and free from halogen, silicone, PVC and LABS. Approval: cULus.

VT2-FKM5-FKM5-FSM5 is a TURCK T-splitter without cable with one M12 male connector (5-pin) and two M12 female connectors (5-pin), all A-coded.

• Connectors: M12 male, 5-pin / 2 x M12 female, 5-pin, straight, A-coded, gold-plated brass (CuZn) contacts, more than 100 mating cycles
• Ratings: 4 A, 60 V, contact resistance ≤5 mΩ, insulation resistance ≥10⁸ Ω
• Housing: black TPU, nickel-plated brass coupling nuts
• Environment: IP65, IP67, IP68 (only when screwed in); -30...+90°C

RoHS compliant.

VB2-FSM4.4-2FKM4 is a TURCK Y-splitter without cable with one M12 male connector (4-pin) and two M12 female connectors (3-pin).

• Connectors: M12 male, 4-pin / 2 x M12 female, 3-pin, straight, gold-plated brass (CuZn) contacts, more than 100 mating cycles
• Ratings: 4 A, 250 V, contact resistance ≤5 mΩ, insulation resistance ≥10⁸ Ω
• Housing: black TPU, nickel-plated brass coupling nuts
• Environment: IP67 (only when screwed in); -30...+90°C

RoHS compliant.

PKG3M-2/TEL is a TURCK connection cable with a straight M8 female connector (3-pin) on one end and open cores on the other.

• Connector: M8 x 1, female, straight, 3-pin, gold-plated brass (CuZn) contacts
• Cable: 2 m, PVC, black, Ø 4.3 mm, 3 x 0.34 mm², core colours BN, BU, BK
• Ratings: 4 A, 50 VAC / 60 VDC, more than 100 mating cycles
• Housing: TPU, nickel-plated brass coupling nut, FPM/FKM seal
• Environment: IP67, IP69K (only when screwed in); -40...+105°C fixed, -5...+80°C mobile

The jacket resists chemicals, oils, acids, alkaline solutions, microbes and hydrolysis, is flame retardant and free from LABS. Approval: cULus.

YB2-FSM5-2FKM5.4 is a TURCK Y-splitter without cable with one M12 male connector (5-pin) and two M12 female connectors (4-pin).

• Connectors: M12 male, 5-pin / 2 x M12 female, 4-pin, straight, gold-plated brass (CuZn) contacts, more than 100 mating cycles
• Ratings: 4 A, 60 V, contact resistance ≤5 mΩ, insulation resistance ≥10⁸ Ω
• Housing: black TPU, nickel-plated brass coupling nuts
• Environment: IP67 (only when screwed in); -30...+80°C

Approval: cULus. RoHS compliant.

RKC12T-20/TXL is a TURCK connection cable with a straight M12 female connector (12-pin) on one end and open cores on the other. The PUR jacket is rated for moving installation, including drag chains.

• Connector: M12 x 1, female, straight, A-coded, 12-pin, gold-plated brass (CuZn) contacts
• Cable: 20 m, PUR, black, Ø 5.4 mm, 12 x 0.14 mm², core colours BN, WH, BU, BK, GY, PK, VT, OG, GY/PK, WH/BU, WH/GY, GY/BN
• Ratings: 1.5 A, 30 V, more than 100 mating cycles
• Housing: TPU, nickel-plated brass coupling nut, FPM/FKM seal
• Environment: IP67, IP69K (only when screwed in); -50...+80°C fixed, -25...+80°C mobile, -25...+60°C in a drag chain
• Drag chain: at least 5 million bending cycles, up to 3.3 m/s and 5 m/s², bending radius ≥10 x Ø, torsion ±180°/m

The jacket resists chemicals, UV radiation, oils, welding sparks and abrasion, is flame retardant (FT2 per UL 1581, IEC 60332-2-2) and free from halogen, silicone, PVC and LABS. Approval: cULus.

CAM12.A12-11230359 is a Baumer shielded M12 female cordset, 12-pin A-coded, with open-ended wires on the other end. The tinned-copper braid gives approx. 80 % coverage, and the wire ends carry a labelling sleeve.

• Connector: M12 female, straight, A-coded, 12-pin, FKM seal, nickel-plated zinc knurled nut
• Cable: PUR, black, Ø 6.5 mm, 12 × 0.14 mm² (AWG 26), shielded, 5 m, 80 mm stripped
• Rating: max. 1.5 A per contact, max. 30 V AC/DC
• Flexing: approx. 5 million C-track bending cycles, torsion ±30°/m
• Protection: IP65, IP66K, IP67
• Temperature: -25...+80 °C moving, -40...+80 °C fixed

Wire colours on pins 1-12: BN, BU, WH, GN, PK, YE, BK, GY, RD, VT, GYPK, RDBU. The cable is halogen-free, silicone-free and UV-resistant, flame-retardant to UL 1581 §1090 (H), CSA FT2 and IEC 60332-2-2.

CMBS8181-0 is a TURCK field-wireable M12 male connector, straight, 8-pin, A-coded, for 6...8 mm cable with screw-clamp terminals. The metal housing has a shield ring for connecting the cable shield; Turck lists it for Ethernet.

• Connector: M12, male, straight, A-coded, 8-pin, gold-plated CuZn contacts, more than 100 mating cycles
• Ratings: 2 A, 60 V, contact resistance ≤3 mΩ
• Connection: screw-clamp terminals, conductors 0.14...0.5 mm², cable diameter 6...8 mm
• Housing: nickel-plated die-cast zinc (GD-Zn) body and coupling nut, black PA contact carrier
• Environment: IP67 (screwed together); -40...+85°C fixed

Approval: cULus recognized.

RKM43-2-RSM43 is a TURCK power supply cable with a straight 7/8" female connector on one end and a straight 7/8" male connector on the other, both 4-pin.

• Connectors: 7/8"-16 UN female, straight / 7/8"-16 UN male, straight; 4-pin, gold-plated brass (CuZn) contacts
• Cable: 2 m, PUR, grey, Ø 7.5 mm, 4 x 1.5 mm², core colours BK, RD, GN, WH
• Ratings: 10 A, 300 V, more than 100 mating cycles
• Housing: black TPU, nickel-plated brass coupling nuts
• Environment: IP67 (only when screwed in); -50...+80°C fixed, -25...+80°C mobile and in a drag chain

The PUR jacket is rated for drag chains (at least 5 million bending cycles, up to 5 m/s², bending radius ≥10 x Ø), oil resistant, flame retardant and halogen free. Approvals: CE, UKCA, UL.

CSB-M1250M1250-T is a Banner M12 T splitter listed among the power cordsets for Sure Cross wireless devices. It passes the supply and signal lines in parallel to both branches.

• Connectors: M12x1, straight
• Wiring: brown 1, white 2, blue 3, black 4, in parallel
• Size: 62.7 x 43.0 mm
• Ratings: 4 A, IP67, -40...+105 °C

RKC4.4T-5-RSC4.4T/TXL is a TURCK extension cable with a straight M12 female connector on one end and a straight M12 male connector on the other (4-pin). The PUR jacket is rated for moving installation, including drag chains.

• Connectors: M12 x 1 female and M12 x 1 male, both straight, A-coded, 4-pin, gold-plated brass (CuZn) contacts
• Cable: 5 m, PUR, black, Ø 4.5 mm, 4 x 0.34 mm², core colours BN, WH, BU, BK
• Ratings: 4 A, 250 V, more than 100 mating cycles
• Housing: TPU, nickel-plated brass coupling nut, FPM/FKM seal
• Environment: IP67, IP69K (only when screwed in); -50...+80°C fixed, -25...+80°C mobile, -25...+60°C in a drag chain
• Drag chain: at least 5 million bending cycles, up to 3.3 m/s and 5 m/s², bending radius ≥10 x Ø, torsion ±180°/m

The jacket resists chemicals, UV radiation, oils, welding sparks and abrasion, is flame retardant (FT2 per UL 1581, IEC 60332-2-2) and free from halogen, silicone, PVC and LABS. Approval: cULus.

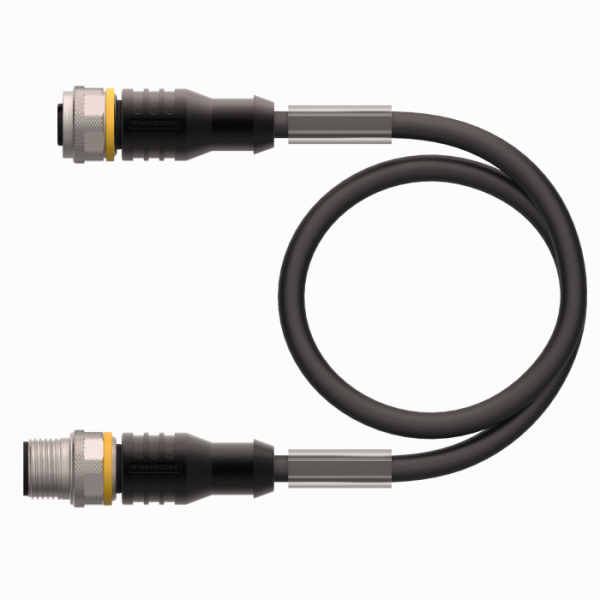

RKC4.5T-1-RSC4.5T/TEL is a TURCK extension cable with a straight M12 female connector on one end and a straight M12 male connector on the other (5-pin). The cable has a black PVC jacket.

• Connectors: M12 x 1 female and M12 x 1 male, both straight, A-coded, 5-pin, gold-plated brass (CuZn) contacts
• Cable: 1 m, PVC, black, Ø 5 mm, 5 x 0.34 mm², core colours BN, WH, BU, BK, GY
• Ratings: 4 A, 60 V, more than 100 mating cycles
• Housing: TPU, nickel-plated brass coupling nut, FPM/FKM seal
• Environment: IP67, IP69K (only when screwed in); -40...+105°C fixed, -5...+80°C mobile

The jacket resists chemicals, oils, acids, alkaline solutions, microbes and hydrolysis, is flame retardant and free from LABS. Approval: cULus.

RKC4.5T-2-RSC4.5T/TEL is a TURCK extension cable with a straight M12 female connector on one end and a straight M12 male connector on the other (5-pin). The cable has a black PVC jacket.

• Connectors: M12 x 1 female and M12 x 1 male, both straight, A-coded, 5-pin, gold-plated brass (CuZn) contacts
• Cable: 2 m, PVC, black, Ø 5 mm, 5 x 0.34 mm², core colours BN, WH, BU, BK, GY
• Ratings: 4 A, 60 V, more than 100 mating cycles
• Housing: TPU, nickel-plated brass coupling nut, FPM/FKM seal
• Environment: IP67, IP69K (only when screwed in); -40...+105°C fixed, -5...+80°C mobile

The jacket resists chemicals, oils, acids, alkaline solutions, microbes and hydrolysis, is flame retardant and free from LABS. Approval: cULus.

LIKA EPFL121-1.0-1032081 is a 1 m shielded encoder cable with an M23 12-pin connector for LIKA IQ58 and IP58 series encoders. It carries the incremental signals A, B and 0 with their inverted pairs, the supply and two setting inputs; the shield is connected to the connector case.

• Connector: M23, 12-pin
• Cable: 1 m, 10 x 0.34 mm², shielded
• Supply: +5...+30 V DC
• Inputs: index pulse setting, counting direction
• Core colours: A violet, /A yellow, B grey, /B pink, 0 green, /0 brown, +V red, 0 V black, index setting white, counting direction blue

PKG4M-5/TEL is a TURCK connection cable with a straight M8 female connector (4-pin) on one end and open cores on the other.

• Connector: M8 x 1, female, straight, 4-pin, gold-plated brass (CuZn) contacts
• Cable: 5 m, PVC, black, Ø 4.6 mm, 4 x 0.34 mm², core colours BN, WH, BU, BK
• Ratings: 4 A, 50 VAC / 60 VDC, more than 100 mating cycles
• Housing: TPU, nickel-plated brass coupling nut, FPM/FKM seal
• Environment: IP67, IP69K (only when screwed in); -40...+105°C fixed, -5...+80°C mobile

The jacket resists chemicals, oils, acids, alkaline solutions, microbes and hydrolysis, is flame retardant and free from LABS. Approval: cULus.

BS6-0 is a TURCK field-wireable M16 x 0.75 male connector, straight, 6-pin, for 6...8 mm cable.

• Connector: M16 x 0.75, male, straight, 6-pin, silver-plated bronze (CuSn) contacts, more than 500 mating cycles
• Ratings: 5 A, 60 V, contact resistance ≤5 mΩ
• Connection: conductors up to 0.75 mm², cable diameter 6...8 mm, PG9 screw-in thread
• Housing: black PA body, black PBT (UL 94 V0) contact carrier, nickel-plated die-cast zinc (GD-Zn) coupling nut
• Environment: -40...+95°C fixed

PKG4M-0.3-PSG4M/TEL is a TURCK M8 connection cable with straight female and male connectors, 4-pin, and a black PVC jacket.

• Connectors: M8 x 1 female and M8 x 1 male, both straight, 4-pin each, gold-plated brass (CuZn) contacts, more than 100 mating cycles
• Cable: 0.3 m, PVC, black, Ø 4.6 mm, 4 x 0.34 mm², PVC core insulation, core colours BN, WH, BU, BK
• Ratings: 4 A, 50 V AC/60 V DC
• Housing: TPU, nickel-plated brass coupling nut, FPM/FKM seal
• Environment: IP67, IP69K (only when screwed in); -40...+105°C fixed, -5...+80°C mobile

The jacket resists chemicals, oils, acids, alkaline solutions, microbes and hydrolysis, is flame retardant and free from LABS. Approval: cULus.

RKC8T-15/TEL is a TURCK connection cable with a straight M12 female connector (8-pin) on one end and open cores on the other. The cable has a black PVC jacket.

• Connector: M12 x 1, female, straight, A-coded, 8-pin, gold-plated brass (CuZn) contacts
• Cable: 15 m, PVC, black, Ø 5.7 mm, 8 x 0.25 mm², core colours BN, WH, BU, BK, GY, PK, VT, OG
• Ratings: 2 A, 30 V, more than 100 mating cycles
• Housing: TPU, nickel-plated brass coupling nut, FPM/FKM seal
• Environment: IP67, IP69K (only when screwed in); -40...+105°C fixed, -5...+80°C mobile

The jacket resists chemicals, oils, acids, alkaline solutions, microbes and hydrolysis, is flame retardant and free from LABS. Approval: cULus.

RKS4.4T-30/TXL is a TURCK shielded connection cable with a straight M12 female connector (4-pin) on one end and open cores on the other. The cable shield is connected to the coupling nut.

• Connector: M12 x 1, female, straight, A-coded, 4-pin, gold-plated brass (CuZn) contacts
• Cable: 30 m, PUR, black, Ø 5.3 mm, 4 x 0.34 mm², core colours BN, WH, BU, BK
• Shield: aluminium foil and tinned copper wire
• Ratings: 4 A, 250 V, more than 100 mating cycles
• Housing: TPU, nickel-plated brass coupling nut, FPM/FKM seal
• Environment: IP67, IP69K (only when screwed in); -50...+80°C fixed, -25...+80°C mobile, -25...+60°C in a drag chain

The PUR jacket is rated for drag chains: at least 2 million bending cycles, up to 3.3 m/s and 5 m/s², bending radius ≥10 x Ø. It resists chemicals, UV radiation, oils, welding sparks and abrasion, is flame retardant (FT2 per UL 1581, IEC 60332-2-2) and free from halogen, silicone, PVC and LABS.

Approval: cULus.

RKC4T-2/TEL is a TURCK connection cable with a straight M12 female connector (3-pin) on one end and open cores on the other.

• Connector: M12 x 1, female, straight, A-coded, 3-pin, gold-plated brass (CuZn) contacts
• Cable: 2 m, PVC, black, Ø 4.3 mm, 3 x 0.34 mm², core colours BN, BU, BK
• Ratings: 4 A, 250 V, more than 100 mating cycles
• Housing: TPU, nickel-plated brass coupling nut, FPM/FKM seal
• Environment: IP67, IP69K (only when screwed in); -40...+105°C fixed, -5...+80°C mobile

The jacket resists chemicals, oils, acids, alkaline solutions, microbes and hydrolysis, is flame retardant and free from LABS. Approval: cULus.

WKC4T-2/TEL is a TURCK connection cable with an angled M12 female connector (3-pin) on one end and open cores on the other.

• Connector: M12 x 1, female, angled, A-coded, 3-pin, gold-plated brass (CuZn) contacts
• Cable: 2 m, PVC, black, Ø 4.3 mm, 3 x 0.34 mm², core colours BN, BU, BK
• Ratings: 4 A, 250 V, more than 100 mating cycles
• Housing: TPU, nickel-plated brass coupling nut, FPM/FKM seal
• Environment: IP67, IP69K (only when screwed in); -40...+105°C fixed, -5...+80°C mobile

The PVC jacket resists chemicals, oils, acids, alkaline solutions, microbes and hydrolysis, is flame retardant and free from LABS. Approval: cULus.

BS5231-0 is a TURCK field-wireable M8 male connector, angled, 3-pin, for 3.5...5 mm cable with solder contacts.

• Connector: M8, male, angled, 3-pin, gold-plated brass (CuZn) contacts, more than 100 mating cycles
• Ratings: 4 A, 60 V, contact resistance ≤3 mΩ
• Connection: solder contacts, conductors up to 0.25 mm², cable diameter 3.5...5 mm, M11 x 0.75 screw-in thread
• Housing: black PBT body, PA 66 contact carrier, nickel-plated die-cast zinc (GD-Zn) coupling nut, FPM/FKM seal
• Environment: IP67 (screwed together); -40...+85°C fixed

Approval: cULus recognized.

VB2-FSM5-2FKM4.4 is a TURCK Y-splitter without cable with one M12 male connector (5-pin) and two M12 female connectors (4-pin).

• Connectors: M12 male, 5-pin / 2 x M12 female, 4-pin, straight, gold-plated brass (CuZn) contacts, more than 100 mating cycles
• Ratings: 4 A, 60 V, contact resistance ≤5 mΩ, insulation resistance ≥10⁸ Ω
• Housing: black TPU, nickel-plated brass coupling nuts
• Environment: IP67 (only when screwed in); -30...+90°C

RoHS compliant.

RKC4T-2-RSC4T/TXL is a TURCK extension cable with a straight M12 female connector on one end and a straight M12 male connector on the other (3-pin). The PUR jacket is rated for moving installation, including drag chains.

• Connectors: M12 x 1 female and M12 x 1 male, both straight, A-coded, 3-pin, gold-plated brass (CuZn) contacts
• Cable: 2 m, PUR, black, Ø 4.1 mm, 3 x 0.34 mm², core colours BN, BU, BK
• Ratings: 4 A, 250 V, more than 100 mating cycles
• Housing: TPU, nickel-plated brass coupling nut, FPM/FKM seal
• Environment: IP67, IP69K (only when screwed in); -50...+80°C fixed, -25...+80°C mobile, -25...+60°C in a drag chain
• Drag chain: at least 5 million bending cycles, up to 3.3 m/s and 5 m/s², bending radius ≥10 x Ø, torsion ±180°/m

The jacket resists chemicals, UV radiation, oils, welding sparks and abrasion, is flame retardant (FT2 per UL 1581, IEC 60332-2-2) and free from halogen, silicone, PVC and LABS. Approval: cULus.

PKW4M-5/TEL is a TURCK connection cable with an angled M8 female connector (4-pin) on one end and open cores on the other.

• Connector: M8 x 1, female, angled, 4-pin, gold-plated brass (CuZn) contacts
• Cable: 5 m, PVC, black, Ø 4.6 mm, 4 x 0.34 mm², core colours BN, WH, BU, BK
• Ratings: 4 A, 50 VAC / 60 VDC, more than 100 mating cycles
• Housing: TPU, nickel-plated brass coupling nut, FPM/FKM seal
• Environment: IP67, IP69K (only when screwed in); -40...+105°C fixed, -5...+80°C mobile

The jacket resists chemicals, oils, acids, alkaline solutions, microbes and hydrolysis, is flame retardant and free from LABS. Approval: cULus.

RKS4.4T-0.3-PSGS4M/TXL is a TURCK shielded connection cable with a straight M12 female connector on one end and a straight M8 male connector on the other (4-pin). The cable shield is connected to the M12 coupling nut.

• Connectors: M12 x 1 female, A-coded / M8 x 1 male, both straight, 4-pin, gold-plated brass (CuZn) contacts
• Cable: 0.3 m, PUR, black, Ø 5.3 mm, 4 x 0.34 mm², core colours BN, WH, BU, BK
• Shield: aluminium foil and tinned copper wire
• Ratings: 4 A, 50 VAC/60 VDC, more than 100 mating cycles
• Housing: TPU, nickel-plated brass coupling nuts, FPM/FKM seal; M8 tightening torque 0.5...0.6 Nm
• Environment: IP67, IP69K (only when screwed in); -50...+80°C fixed, -25...+80°C mobile, -25...+60°C in a drag chain

The PUR jacket is rated for drag chains: at least 2 million bending cycles, up to 3.3 m/s and 5 m/s², bending radius ≥10 x Ø. It resists chemicals, UV radiation, oils, welding sparks and abrasion, is flame retardant (FT2 per UL 1581, IEC 60332-2-2) and free from halogen, silicone, PVC and LABS.

Approval: cULus.

M12, female, straight, 3 poles, sensor-/actuator cable

BS5143-0 is a TURCK field-wireable M8 male connector, straight, 4-pin, for 3.5...5 mm cable with screw-clamp terminals.

• Connector: M8, male, straight, 4-pin, gold-plated brass (CuZn) contacts, more than 100 mating cycles
• Ratings: 4 A, 30 V, contact resistance ≤3 mΩ
• Connection: screw-clamp terminals, conductors up to 0.5 mm², cable diameter 3.5...5 mm, M11 x 0.75 screw-in thread
• Housing: black PBT body, PA 66 contact carrier, nickel-plated die-cast zinc (GD-Zn) coupling nut, FPM/FKM seal
• Environment: IP67 (screwed together); -40...+85°C fixed

Approval: cULus recognized.

WKS4.4T-5/TXL is a TURCK shielded connection cable with an angled M12 female connector (4-pin) on one end and open cores on the other. The cable shield is connected to the coupling nut.

• Connector: M12 x 1, female, angled, A-coded, 4-pin, gold-plated brass (CuZn) contacts
• Cable: 5 m, PUR, black, Ø 5.3 mm, 4 x 0.34 mm², core colours BN, WH, BU, BK
• Shield: aluminium foil and tinned copper wire
• Ratings: 4 A, 250 V, more than 100 mating cycles
• Housing: TPU, nickel-plated brass coupling nut, FPM/FKM seal
• Environment: IP67, IP69K (only when screwed in); -50...+80°C fixed, -25...+80°C mobile, -25...+60°C in a drag chain

The PUR jacket is rated for drag chains: at least 2 million bending cycles, up to 3.3 m/s and 5 m/s², bending radius ≥10 x Ø. It resists chemicals, UV radiation, oils, welding sparks and abrasion, is flame retardant (FT2 per UL 1581, IEC 60332-2-2) and free from halogen, silicone, PVC and LABS.

Approval: cULus.

WKS4.4T-10/TEL is a TURCK shielded connection cable with an angled M12 female connector (4-pin) on one end and open cores on the other. The cable shield is connected to the coupling nut.

• Connector: M12 x 1, female, angled, A-coded, 4-pin, gold-plated brass (CuZn) contacts
• Cable: 10 m, PVC, black, Ø 5.4 mm, 4 x 0.34 mm², core colours BN, WH, BU, BK
• Shield: aluminium foil and tinned copper wire
• Ratings: 4 A, 250 V, more than 100 mating cycles
• Housing: TPU, nickel-plated brass coupling nut, FPM/FKM seal
• Environment: IP67, IP69K (only when screwed in); -40...+105°C fixed, 0...+80°C mobile

The PVC jacket resists chemicals, oils, acids, alkaline solutions, microbes and hydrolysis, is flame retardant and free from LABS.

Approval: cULus.

RSSD-RJ45S-4422-25M is a TURCK Industrial Ethernet cable with a straight M12 male connector on one end and a straight RJ45 male connector on the other (4-pin). The 4-wire CAT 5e cable carries 100 Mbit/s Ethernet and PROFINET.

• Connectors: M12 x 1 male, straight, D-coded / RJ45 male, straight; 4-pin
• Cable: 25 m, PUR, green, Ø 6.5 mm, 4 x 0.32 mm², core colours WH, YE, BU, OG, overall shield of aluminium foil and tinned copper braid
• Ratings: 1.5 A, 42 V DC; CAT 5e, impedance 100 Ω, capacitance 50 pF/m
• Housing: TPU, nickel-plated brass coupling nut
• Environment: M12 IP67 (only when screwed in), RJ45 IP20; -40...+80°C fixed, -30...+80°C mobile
• Drag chain: at least 5 million bending cycles, bending radius ≥15 x Ø, torsion ±180°/m

The green PUR jacket is halogen free (IEC 60754), oil resistant (IEC 60811-2-1) and flame retardant (IEC 60332-1-2); the cable is RoHS compliant and PNO compliant for PROFINET. Approval: UL Listed.

WKH4.5-20/TFE is a TURCK hygienic connection cable with an angled M12 female connector (5-pin) on one end and open cores on the other, for sensors and actuators in food and beverage plants.

• Connector: M12 female, angled, 5-pin, gold-plated brass (CuZn) contacts
• Cable: 20 m, PVC, grey RAL 7040, Ø 4.9 mm, 5 x 0.34 mm², core colours BN, WH, BU, BK, GY
• Ratings: 4 A, 60 V, more than 100 mating cycles
• Housing: grey PP, stainless steel (V4A) coupling nut, FPM/FKM seal
• Environment: IP65, IP67, IP68, IP69 (only when screwed in); -25...+80°C fixed, 0...+80°C mobile

Designed for food and beverage areas: the grey PVC jacket (RAL 7040) resists acids, alkalis, oils and chemicals and is flame retardant per DIN EN 60332-1-2 and 60332-2-2. RoHS and REACH compliant. Approvals: GOST, Ecolab.

WKH4.5-5/TFE is a TURCK hygienic connection cable with an angled M12 female connector (5-pin) on one end and open cores on the other, for sensors and actuators in food and beverage plants.

• Connector: M12 female, angled, 5-pin, gold-plated brass (CuZn) contacts
• Cable: 5 m, PVC, grey RAL 7040, Ø 4.9 mm, 5 x 0.34 mm², core colours BN, WH, BU, BK, GY
• Ratings: 4 A, 60 V, more than 100 mating cycles
• Housing: grey PP, stainless steel (V4A) coupling nut, FPM/FKM seal
• Environment: IP65, IP67, IP68, IP69 (only when screwed in); -25...+80°C fixed, 0...+80°C mobile

Designed for food and beverage areas: the grey PVC jacket (RAL 7040) resists acids, alkalis, oils and chemicals and is flame retardant per DIN EN 60332-1-2 and 60332-2-2. RoHS and REACH compliant. Approvals: GOST, Ecolab.

RKH4.5-5/TFE is a TURCK hygienic-design connection cable for food and beverage production, with a straight M12 female connector (5-pin) on one end and open cores on the other.

• Connector: M12 x 1, female, straight, 5-pin, gold-plated brass (CuZn) contacts
• Cable: 5 m, PVC, grey (RAL 7040), Ø 4.9 mm, 5 x 0.34 mm², core colours BN, WH, BU, BK, GY
• Ratings: 4 A, 60 V, more than 100 mating cycles
• Housing: grey PP, stainless steel (V4A) coupling nut, FPM/FKM seal
• Environment: IP65, IP67, IP68, IP69 (only when screwed in); -25...+80°C fixed, 0...+80°C mobile

The jacket resists acids, alkalis, oils and chemicals and is flame retardant per DIN EN 60332-1-2 and DIN EN 60332-2-2. RoHS and REACH compliant, approvals: Ecolab, GOST.

RKH4.5-10/TFE is a TURCK hygienic-design connection cable for food and beverage production, with a straight M12 female connector (5-pin) on one end and open cores on the other.

• Connector: M12 x 1, female, straight, 5-pin, gold-plated brass (CuZn) contacts
• Cable: 10 m, PVC, grey (RAL 7040), Ø 4.9 mm, 5 x 0.34 mm², core colours BN, WH, BU, BK, GY
• Ratings: 4 A, 60 V, more than 100 mating cycles
• Housing: grey PP, stainless steel (V4A) coupling nut, FPM/FKM seal
• Environment: IP65, IP67, IP68, IP69 (only when screwed in); -25...+80°C fixed, 0...+80°C mobile

The jacket resists acids, alkalis, oils and chemicals and is flame retardant per DIN EN 60332-1-2 and DIN EN 60332-2-2. RoHS and REACH compliant, approvals: Ecolab, GOST.

RKC4T-0.3-PSG3M/TXL is a TURCK connection cable with a straight M12 female connector on one end and a straight M8 male connector on the other (3-pin).

• Connectors: M12 x 1 female, A-coded / M8 x 1 male, both straight, 3-pin, gold-plated brass (CuZn) contacts
• Cable: 0.3 m, PUR, black, Ø 4.1 mm, 3 x 0.34 mm², core colours BN, BU, BK
• Ratings: 4 A, 50 VAC/60 VDC, more than 100 mating cycles
• Housing: TPU, nickel-plated brass coupling nuts, FPM/FKM seal; M8 tightening torque 0.5...0.6 Nm
• Environment: IP67, IP69K (only when screwed in); -50...+80°C fixed, -25...+80°C mobile, -25...+60°C in a drag chain

The PUR jacket is rated for drag chains: at least 5 million bending cycles, up to 3.3 m/s and 5 m/s², bending radius ≥10 x Ø. It resists chemicals, UV radiation, oils, welding sparks and abrasion, is flame retardant (FT2 per UL 1581, IEC 60332-2-2) and free from halogen, silicone, PVC and LABS.

Approval: cULus.

BWS8151-0 is a TURCK field-wireable M12 female connector, straight, 5-pin, B-coded, for 4...6 mm cable with screw-clamp terminals.

• Connector: M12, female, straight, B-coded, 5-pin, CuZn contacts with Optalloy coating, more than 500 mating cycles
• Ratings: 4 A, 60 V, contact resistance ≤8 mΩ
• Connection: screw-clamp terminals, conductors up to 0.75 mm², cable diameter 4...6 mm, PG7 screw-in thread
• Housing: black PA body, contact carrier and coupling nut, FPM/FKM seal
• Environment: IP67 (screwed together); -25...+85°C fixed

Approval: cULus recognized.

WKC4.4T-P7X2-5-RSC4.4T/TXL is a TURCK extension cable with an angled M12 female connector on one end and a straight M12 male connector on the other (4-pin). The female connector has two built-in LED indicators: green shows the supply, yellow the PNP signal on pin 4.

• Connectors: M12 x 1 female, angled / M12 x 1 male, straight; A-coded, 4-pin, gold-plated brass (CuZn) contacts
• Cable: 5 m, PUR, black, Ø 4.5 mm, 4 x 0.34 mm², core colours BN, WH, BU, BK
• Ratings: 4 A, 30 V DC, more than 100 mating cycles
• Housing: female translucent TPU, male black TPU; nickel-plated brass coupling nuts, FPM/FKM seal
• Environment: IP67, IP69K (only when screwed in); -50...+80°C fixed, -25...+80°C mobile, -25...+60°C in a drag chain
• Drag chain: at least 5 million bending cycles, up to 3.3 m/s and 5 m/s², bending radius ≥10 x Ø, torsion ±180°/m

The PUR jacket resists chemicals, UV radiation, oils, welding sparks and abrasion, is flame retardant (FT2 per UL 1581, IEC 60332-2-2) and free from halogen, silicone, PVC and LABS. Approval: cULus.

DES4-M51-D is the RD (removable disconnect) cordset that plugs directly into an S4B safety light curtain housing and brings the connection out to a 5-pin M12 male connector. It fits S4B units with FID 2 or later; the scan code switches sit in its housing-side connector.

• Connector: S4B RD female, straight / M12x1 male, straight, A-coded, 5-pin
• Cable: 0.4 m, black PVC, Ø 5.46 mm, 22 AWG
• Rating: 2 A, 60 V AC / 75 V DC
• Body: black PUR overmould, nickel-plated brass coupling nut
• Environment: IP65, -40...+70 °C

With the 5-pin cordset the S4B receiver is wired to a safety relay, safety controller or safety PLC.

DES4-M81-D is the RD (removable disconnect) cordset that plugs directly into an S4B safety light curtain housing and brings the connection out to a 8-pin M12 male connector. It fits S4B units with FID 2 or later; the scan code switches sit in its housing-side connector.

• Connector: S4B RD female, straight / M12x1 male, straight, A-coded, 8-pin
• Cable: 0.4 m, black PVC, Ø 5.92 mm, 22 AWG
• Rating: 2 A, 60 V AC / 75 V DC
• Body: black PUR overmould, nickel-plated brass coupling nut
• Environment: IP65, -40...+70 °C

With the 8-pin cordset the S4B receiver provides EDM monitoring and can drive the contactors directly, without a separate safety module.

CSB-M1281M1281B is a Banner Y splitter with an 8-pin M12 male trunk and two 8-pin M12 female branches. All eight conductors are wired in parallel from the trunk to both branches.

• Connectors: trunk M12x1 male, 8-pin; branches 2x M12x1 female, 8-pin
• Cable lengths: trunk 0.3 m, each branch 0.3 m
• Wiring: pins 1-8 in parallel (brown, orange/black, orange, white, black, blue, green/yellow, violet)
• Junction: 35 x 17 mm, with a mounting hole

BC-M12F8-24-1 is a Banner single-ended cordset with a straight 8-pin M12 female connector and flying leads, unshielded.

• Connector: M12x1, female, straight, A-coded, 8 pins; nickel-plated brass coupling nut, black TPU body
• Cable: 1 m, black PVC, Ø 5.92 mm, 8 x 24 AWG; wire colours white, brown, green, yellow, gray, pink, blue, red
• Ratings: 2 A, 30 V; bend radius > 10x the outer diameter
• Environment: IP66, IP67, IP68, -40...+70 °C

UL and CE marked.

FW-ERKSM0516-PL-I-0613 is a TURCK field-wireable M12 Power female connector with L-coding (4+FE) for power connections up to 12 A and 63 VDC. The cores are terminated in IDC quick-connect terminals without stripping.

• Connector: M12 x 1 female, straight, L-coded, 4+FE, gold-plated brass (CuZn) contacts, more than 500 mating cycles
• Ratings: 12 A, 63 VDC
• Connection: IDC terminals for 0.75...1.5 mm² cores, cable outer diameter 6...13 mm
• Housing: black GD-Zn die-cast zinc, nickel-plated GD-Zn coupling nut, FPM/FKM seal; shieldable
• Environment: IP65, IP67 (assembled and screwed in); -40...+85°C

Approval: cULus.

PKG3M-0.6-PSW3M/TXL is a TURCK connection cable with a black PUR jacket rated for drag chains. The female end is straight and the male end is angled, which saves space where the cable leaves the device at a right angle.

• Connectors: M8 x 1 female, straight, and M8 x 1 male, angled, 3-pin each, gold-plated brass (CuZn) contacts, more than 100 mating cycles
• Cable: 0.6 m, PUR, black, Ø 4.1 mm, 3 x 0.34 mm², PP core insulation, core colours BN, BU, BK
• Ratings: 4 A, 50 V AC/60 V DC
• Housing: TPU, nickel-plated brass coupling nut, FPM/FKM seal
• Environment: IP67, IP69K (only when screwed in); -50...+80°C fixed, -25...+80°C mobile, -25...+60°C in a drag chain
• Drag chain: at least 5 million bending cycles, up to 3.3 m/s and 5 m/s², bending radius ≥10 x Ø, torsion ±180°/m

The jacket resists chemicals, UV radiation, oils, welding sparks and abrasion, is flame retardant (FT2 per UL 1581, IEC 60332-2-2) and free from halogen, silicone, PVC and LABS. Approval: cULus.

WKS4.5T-50/TXL is a TURCK shielded connection cable with an angled M12 female connector (5-pin) on one end and open cores on the other. The cable shield is connected to the coupling nut.

• Connector: M12 x 1, female, angled, A-coded, 5-pin, gold-plated brass (CuZn) contacts
• Cable: 50 m, PUR, black, Ø 5.7 mm, 5 x 0.34 mm², core colours BN, WH, BU, BK, GY
• Shield: aluminium foil and tinned copper wire
• Ratings: 4 A, 60 V, more than 100 mating cycles
• Housing: TPU, nickel-plated brass coupling nut, FPM/FKM seal
• Environment: IP67, IP69K (only when screwed in); -50...+80°C fixed, -25...+80°C mobile, -25...+60°C in a drag chain

The PUR jacket is rated for drag chains: at least 2 million bending cycles, up to 3.3 m/s and 5 m/s², bending radius ≥10 x Ø. It resists chemicals, UV radiation, oils, welding sparks and abrasion, is flame retardant (FT2 per UL 1581, IEC 60332-2-2) and free from halogen, silicone, PVC and LABS.

Approval: cULus.

BC-M12F5A-22-2 is a Banner single-ended cordset with a right-angle 5-pin M12 female connector and flying leads. The cable is UL listed as ITC and PLTC tray cable, sunlight resistant and rated Oil Res I and II.

• Connector: M12x1, female, right-angle, A-coded, 5 pins; nickel-plated brass coupling nut, black TPU body
• Cable: 2 m, black PVC, Ø 5.59 mm, 5 x 22 AWG; wire colours brown, white, blue, black, gray
• Ratings: 4 A, 30 V
• Bend radius: static ≥ 4x, dynamic ≥ 15x the outer diameter
• Environment: IP66, IP67, IP68, -40...+105 °C

UL 2250 ITC, UL 13 PLTC, UL 758 AWM 2517, CSA FT4 flame rating. Vibration per IEC 60068-2-6, shock per IEC 60068-2-27 (50 G, 11 ms).

BC-M12F8A-24-2-SF is a Banner single-ended cordset with a right-angle 8-pin M12 female connector and flying leads. The cable has an aluminium foil shield with full coverage and an unterminated drain wire, so the shield is grounded at the cabinet end only.

• Connector: M12x1, female, right-angle, A-coded, 8 pins; nickel-plated brass coupling nut, black TPU body
• Cable: 2 m, black PVC, Ø 5.6 mm, 8 x 24 AWG, foil shield 100 % with drain wire
• Ratings: 2 A, 30 V; bend radius static 10x, dynamic 15x the outer diameter
• Environment: IP66, IP67, IP68, operating -40...+50 °C

Vibration per IEC 60068-2-6, shock per IEC 60068-2-27 (50 G, 11 ms).

PSW3M-2/TEL is a TURCK sensor and actuator cable with a angled M8 male connector (3-pin) on one end and open cores on the other, for connecting sensors and actuators with an M8 female socket to a terminal box or controller.

• Connector: M8 x 1 male, angled, 3-pin, gold-plated brass (CuZn) contacts, black TPU body, nickel-plated brass coupling nut
• Cable: 2 m, PVC, black, Ø 4.3 mm, 3 x 0.34 mm², PVC core insulation, core colours BN, BU, BK
• Ratings: 4 A, 50 VAC / 60 VDC, test voltage 2000 V, more than 100 mating cycles
• Environment: IP67, IP69K (only when screwed in); -40...+105°C fixed, -5...+80°C mobile

The black PVC jacket resists chemicals, oils, acids, alkaline solutions, microbes and hydrolysis, is flame retardant and LABS free.

Approval: cULus.

PSG3M-2/TEL is a TURCK sensor and actuator cable with a straight M8 male connector (3-pin) on one end and open cores on the other, for connecting sensors and actuators with an M8 female socket to a terminal box or controller.

• Connector: M8 x 1 male, straight, 3-pin, gold-plated brass (CuZn) contacts, black TPU body, nickel-plated brass coupling nut
• Cable: 2 m, PVC, black, Ø 4.3 mm, 3 x 0.34 mm², PVC core insulation, core colours BN, BU, BK
• Ratings: 4 A, 50 VAC / 60 VDC, test voltage 2000 V, more than 100 mating cycles
• Environment: IP67, IP69K (only when screwed in); -40...+105°C fixed, -5...+80°C mobile

The black PVC jacket resists chemicals, oils, acids, alkaline solutions, microbes and hydrolysis, is flame retardant and LABS free.

Approval: cULus.

HA8141-16 is a TURCK field-wireable M12 female connector, straight, 4-pin, A-coded, for 6...8 mm cable with IDC terminals.

• Connector: M12, female, straight, A-coded, 4-pin, gold-plated CuZn contacts
• Ratings: 6 A, 50 V
• Connection: IDC terminals, conductors up to 0.75 mm², cable diameter 6...8 mm, M12 x 1 screw-in thread
• Housing: black PA body and contact carrier, nickel-plated brass (CuZn) coupling nut, FPM/FKM seal
• Environment: IP67 (screwed together); -5...+50°C fixed
