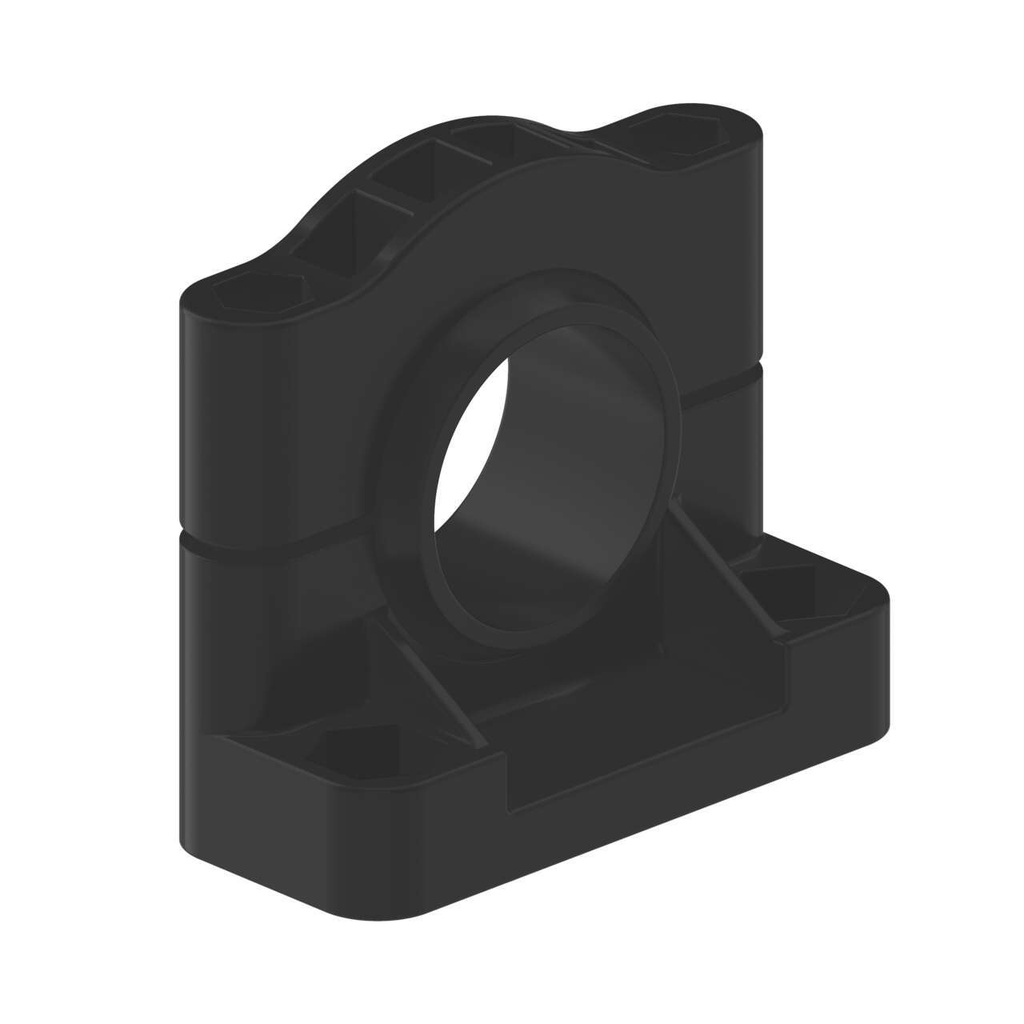

Mounting bracket SMB30SC, swivel, 30 mm hole, polyester

SMB30SC is a Banner swivel bracket for sensors with a 30 mm housing. Once the orientation is set, the swivel is locked with the included screw.

• Sensor hole: Ø30.0 mm
• Mounting: Ø7.0 mm holes on a Ø50.8 mm circle
• Material: black reinforced thermoplastic polyester
• Included: stainless steel mounting and swivel locking hardware
