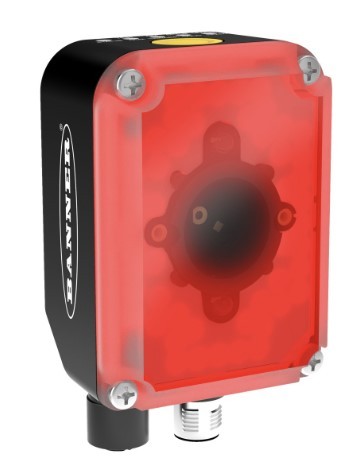

Barcode reader ABR72L9-RDE2, 2 MP, 9 mm autofocus, red diffused DPM, Ethernet + serial, M12

ABR72L9-RDE2 is a Banner ABR 7000 imager-based barcode reader for 1D and 2D codes, including direct part marked (DPM) codes. It has a 2 MP global-shutter sensor, a 9 mm liquid-lens autofocus and red diffused lighting in two software-configurable sectors.

• Imager: 1600 x 1200 px CMOS, global shutter, 45 fps; 9 mm liquid lens autofocus
• Lighting: red diffused DPM, central/peripheral sectors; working distance 20...350 mm
• Inputs and outputs: 2 opto-isolated inputs; 3 outputs NPN/PNP/push-pull, 100 mA
• Communication: RS232 or RS422 main + RS232 auxiliary; Ethernet 10/100 with TCP/IP, EtherNet/IP, Modbus TCP, SLMP, PROFINET-compatible
• Configuration: Barcode Manager software, Smart Teach button, embedded web server
• Supply: 10-30VDC, 0.7 A at 10 VDC to 0.2 A at 30 VDC
• Housing and environment: aluminium, 238 g, IP67 with sealed cables, 0...+45 °C; M12 17-pin male + M12 D-coded 4-pin female

Factory focus is 100 mm with a horizontal field of view of 95 mm; other distances are set with the autofocus. Power and I/O need a 17-pin M12 cordset, and the Ethernet port a D-coded M12 cable. Two class 2 laser pointers aim the reader, and green/red spots and a beeper show good read and no read.

Vibration per EN 60068-2-6, shock per EN 60068-2-27, bump per EN 60068-2-29. Laser class 2 per IEC 60825-1.
