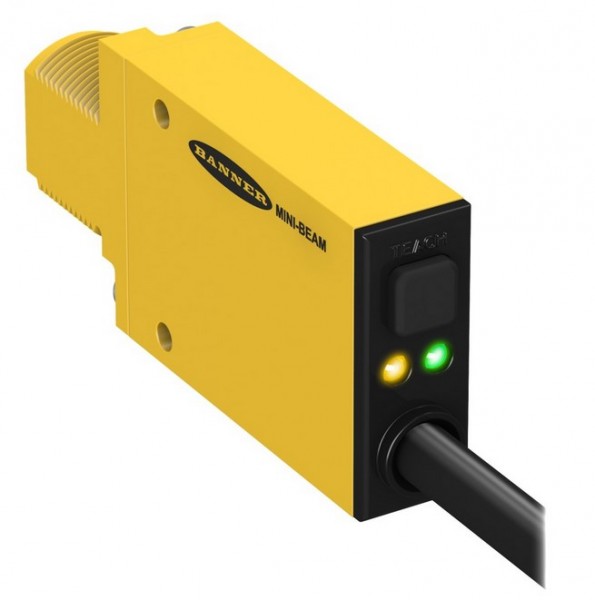

Photo sensor SME312CVG, convergent 16 mm, green, PNP + NPN, 10-30VDC, 2 m cable

SME312CVG is a Banner MINI-BEAM Expert convergent-mode photo sensor with a visible green 525 nm beam focused at 16 mm to a 1.0 mm spot. Banner recommends the green beam models for colour mark sensing.

• Sensing: convergent, focus 16 mm, spot 1.0 mm, green 525 nm
• Outputs: bipolar, 1x PNP and 1x NPN, 150 mA each (100 mA at 70 °C); response 500 µs, repeatability 100 µs
• Supply: 10-30VDC, below 45 mA
• Housing: MINI-BEAM, reinforced thermoplastic polyester, encapsulated, M18x1 nose thread with nut
• Environment: IP67, -20...+70 °C
• Connection: 2 m PVC cable, 5 conductors

Set with the push button or the gray remote TEACH wire: the first condition taught becomes Output ON, so Light or Dark Operate is not selected separately. The green indicator flashes when the signal approaches the switching threshold.
