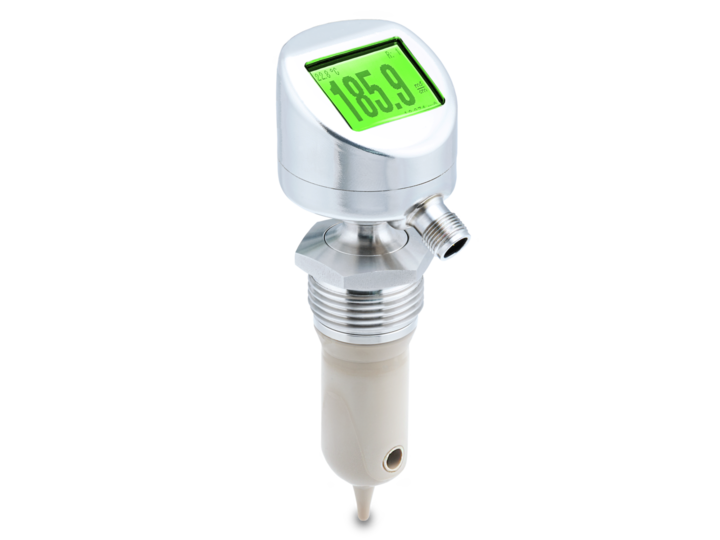

Conductivity Sensor PAC50H-1430A.32D11A.A04304.1030, 2% accuracy, IO-Link Dual Channel and 4…20mA, M12-A, 5-pin, G 1 A hygienic, SS., With display, 37 mm probe, PEEK wetted parts, IP65/IP67/IP69K, 3-A / EHEDG approved.

Conductivity Sensor PAC50H-1430A.32D11A.A04304.1030, 2% accuracy, IO-Link Dual Channel and 4…20mA, M12-A, 5-pin, G 1 A hygienic, SS., With display, 37 mm probe, PEEK wetted parts, IP65/IP67/IP69K, 3-A / EHEDG approved.

Min. measurable conductivity
1 µS/cm
Max. measuring span
1000 mS/cm
Max. measuring error
≤ ± 2.0 % MV ± 15 µS/cm
Reference temperature
25 °C , adjustable
Repeatability
≤ ± 1.0 % MV ± 10 µS/cm
Compensated temperature range
-20 … 150 °C
Temperature compensation
0.0 … 5.0 %/K , adjustable
Step response time, T90
≤ 1.5 s
Sample time
≤ 0.4 s
1,420.00 € 1,420.00 € (Tax excluded)
1,420.00 € (Tax excluded)

  • Brand - Baumer International
  • Electrical connection
  • Process connection
  • Communication
  • Supply
  • Process sensor output
  • Wiring
Add to cart
Add to wishlist
Baumer International
Internal Reference
 11250898
Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days
Contact Us

Looking for a different configuration? Contact us!

Submit
Brand Baumer International
Electrical connection M12
Process connection G 1"
Communication IO-Link
Supply 24 VDC
Process sensor output Analog 4-20 mA
Wiring 5-wire
PAC50H datasheet
