Sn = 8 mm, M12x1 metal thread (chrome-plated brass), non-flush, with M12 connector, 10–30V DC, PNP NO, Increased switching distance version, IP67

Sn = 4 mm, M12x1 metal thread (chrome-plated brass), flush, with M12 connector, 10–30V DC, PNP NO, Increased switching distance version, IP67

Sn = 50 mm, Rectangular CP40 housing 40 mm, terminal chamber connection, 10–65V DC, PNP NO/NC (complementary output), UPROX Factor 1 technology — detects all metals at the same range, adjustable active face (9 positions), corner LEDs, IP68 Uprox+ sensor with Factor 1 for all metals and increased switching distance

Sn = 35 mm, Rectangular CP40 housing (114x40x40mm), terminal chamber connection (1/2-14 NPT), 10–65V DC, PNP NO/NC (complementary output), Variable orientation of active face (9 directions), corner LEDs, IP67

Sn = 10 mm, M30x1.5 metal thread, flush, 2m PVC cable, 10–65V DC, PNP NO, Rotation speed monitor (3–3000 rpm range, adjustable via potentiometer), IP67

Sn = 5 mm, M18x1 metal thread (chrome-plated brass, extended barrel), flush/embeddable, 2m cable, 10–65V DC, PNP NO, Rotation speed monitor with Uprox Factor 1 technology (3–3000 rpm, adjustable via potentiometer), IP67

Ārējais diametrs: 74 mm

Adapteris: Ø14 mm

Pamatne pozīcijas elementam

Sn = 4 mm, M12x1 metal thread (chrome-plated brass), flush, with M12 connector, 10–30V DC, PNP NO/NC, Increased switching distance version, IP67

Sn = 4 mm, M12x1 metal thread (chrome-plated brass), flush, with 2m PVC cable, 10–30V DC, PNP NO/NC, Increased switching distance version, IP67

Sn = 4 mm, M12x1 metal thread (stainless steel 1.4404), flush/embeddable, with M12 connector, 10–30V DC, PNP NO, Uprox Factor 1 technology, washdown-resistant for food & beverage industry, IP69K, -40°C to +100°C

Sn = 8 mm, Rectangular Q10 block housing (10.8 mm height), top active face, with M8 connector, 10–30V DC, PNP NO, Uprox Factor 1 technology (detects all metals equally), embeddable/flush, IP67

Sn = 14 mm, M18x1 metal thread (chrome-plated brass), non-flush, with 7m PVC cable, 10–30V DC, PNP NO/NC (changeover, antivalent), Increased/large sensing range version, IP67

Sn = 20 mm, M30x1.5 metal thread (nickel-plated brass), non-flush, with 7m PVC cable, 10–30V DC, PNP NO/NC, Large/increased sensing range version, IP67

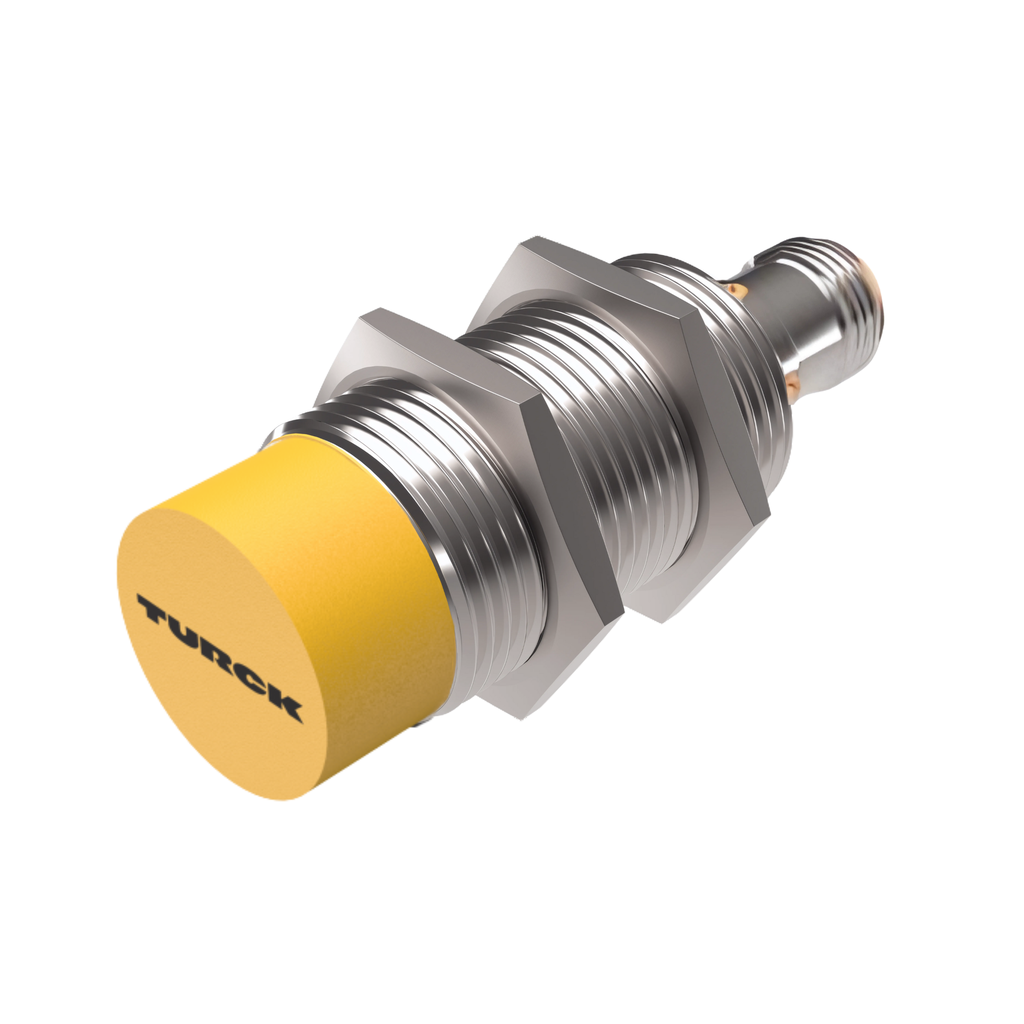

Sn = 20 mm, M30x1.5 metal thread (chrome-plated brass), non-flush, with M12 connector, 10–30V DC, PNP NO/NC, Large/increased sensing range version, IP67

Sn = 14 mm, M18x1 metal thread (chrome-plated brass), non-flush, with M12 connector, 10–30V DC, PNP NO/NC (changeover), Increased/large sensing range version, IP67

Sn = 15 mm, M30x1.5 metal thread (chrome-plated brass), flush, with 2m cable, 10–30V DC, PNP NO/NC, Increased switching distance version, IP67

Sn = 15 mm, M30x1.5 metal thread (chrome-plated brass), flush, with M12 connector, 10–30V DC, PNP NO/NC, Increased switching distance version, IP67

Sn = 2 mm, M8x1 metal thread (stainless steel AISI 303), flush, with cable connection, 10–30V DC, PNP NO, Shielded, IP67

Sn = 2 mm, M8x1 metal thread (stainless steel), flush, with cable connection, 10–30V DC, PNP NO, Weldguard® coating (weld spatter resistant), IP67

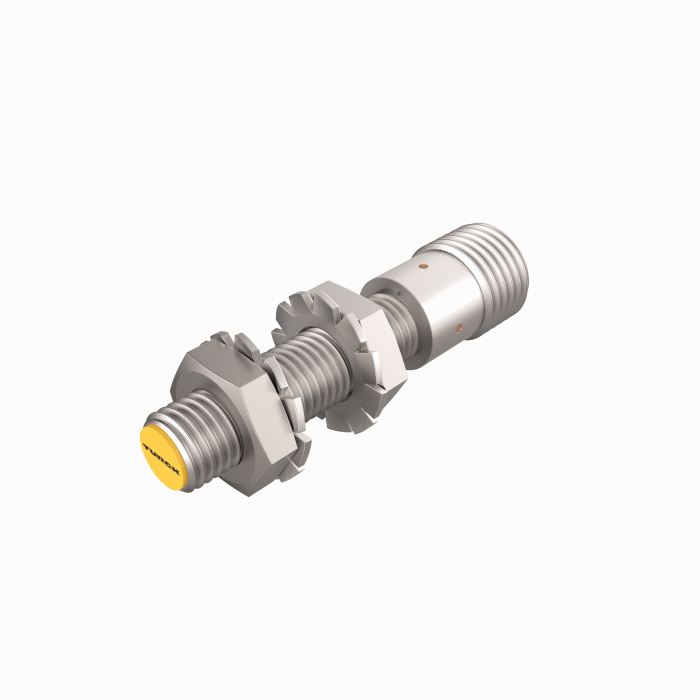

Sn = 2 mm, M8x1 metal thread (stainless steel AISI 303), flush, with M12 connector, 10–30V DC, PNP NO, Increased switching distance version, IP67

Sn = 2 mm, M8x1 metal thread (stainless steel AISI 303), flush, with cable connection, 10–30V DC, NPN NO, Shielded, temperatures up to +100°C, IP67

Sn = 8 mm, M18x1 metal thread (chrome-plated brass), flush, with 2m cable, 10–30V DC, PNP NO/NC, Increased switching distance version, IP67

Sn = 8 mm, M18x1 metal thread (chrome-plated brass), flush, with M12 connector, 10–30V DC, PNP NO/NC, Increased switching distance version, IP67

Sn = 8 mm, M18x1 metal thread (chrome-plated brass, extended barrel), flush, with M12 connector, 10–30V DC, PNP NO/NC, Increased switching distance version, IP67

Sn = 4 mm, M12x1 metal thread (nickel-plated brass), flush, with 2m cable, 10–30V DC, PNP NO, Increased switching distance version, IP67

Sn = 4 mm, M12x1 metal thread (chrome-plated brass), flush, with M12 connector, 10–30V DC, NPN NO, Increased switching distance version, IP67

Sn = 4 mm, M12x1 metal thread (brass), flush, with 2m cable, 10–30V DC, NPN NO, Increased switching distance version, IP67

Sn = 4 mm, M12x1 metal thread (chrome-plated brass, long/extended version), flush, with M12 connector, 10–30V DC, PNP NO/NC, Increased switching distance version, IP67

Sn = 8 mm, M12x1 metal thread (chrome-plated brass), non-flush, with M12 connector, 10–30V DC, PNP NO/NC, Increased/large sensing range version, IP67

Sn = 8 mm, M12x1 metal thread (chrome-plated brass), non-flush, with M12 connector, 10–30V DC, NPN NO, Increased/large sensing range version, IP67

Sn = 8 mm, M12x1 metal thread (chrome-plated brass), non-flush, with 7m cable, 10–30V DC, PNP NO/NC, Increased/large sensing range version, IP67

Sn = 14 mm, M18x1 metal thread (chrome-plated brass), non-flush, with M12 connector, 10–30V DC, PNP NO, Increased/large sensing range version, IP67

Sn = 14 mm, M18x1 metal thread (chrome-plated brass), non-flush, with M12 connector, 10–30V DC, NPN NO, Increased/large sensing range version, IP67

Sn = 5 mm, M18x1 metal thread (chrome-plated brass), flush, with M12 connector, 10–30V DC, PNP NO, IP67

Sn = 8 mm, M18x1 metal thread (chrome-plated brass), flush, with M12 connector, 10–30V DC, PNP NO, IP67

Sn = 8 mm, M18x1 metal thread (chrome-plated brass), flush, with M12 connector, 10–30V DC, NPN NO, Increased switching distance version, IP67

Sn = 8 mm, M18×1 metal thread (chrome-plated brass), flush, with cable connection, 10–30V DC, NPN NO, with increased switching distance, IP67

Sn = 15 mm, M30x1.5 metal thread (chrome-plated brass), flush, with M12 connector, 10–30V DC, PNP NO, Increased switching distance version, IP67

Sn = 15 mm, M30×1.5 metal thread (chrome-plated brass), flush, with cable connection, 10–30V DC, PNP NO, with increased switching distance

Sn = 15 mm, M30x1.5 metal thread (chrome-plated brass), flush, with M12 connector, 10–30V DC, NPN NO, Increased switching distance version, IP67

Sn = 2 mm, M8x1 metal thread (stainless steel AISI 303, extended temperature range), flush, with 2m cable, 10–30V DC, PNP NO, IP67

Sn = 2 mm, M8x1 metal thread (stainless steel AISI 303, short barrel), flush, with M12 connector, 10–30V DC, PNP NO/NC, IP67

Sn = 20 mm, M30x1.5 metal thread (chrome-plated brass), non-flush, with M12 connector, 10–30V DC, PNP NO, Increased/large sensing range version, IP67

Sn = 20 mm, M30x1.5 metal thread (chrome-plated brass), non-flush, with M12 connector, 10–30V DC, NPN NO, Increased/large sensing range version, IP67
