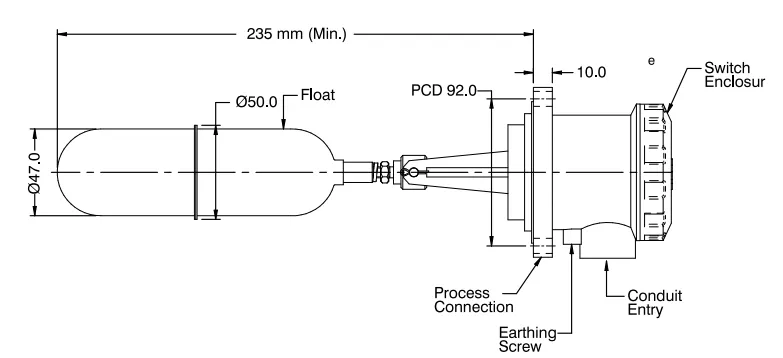

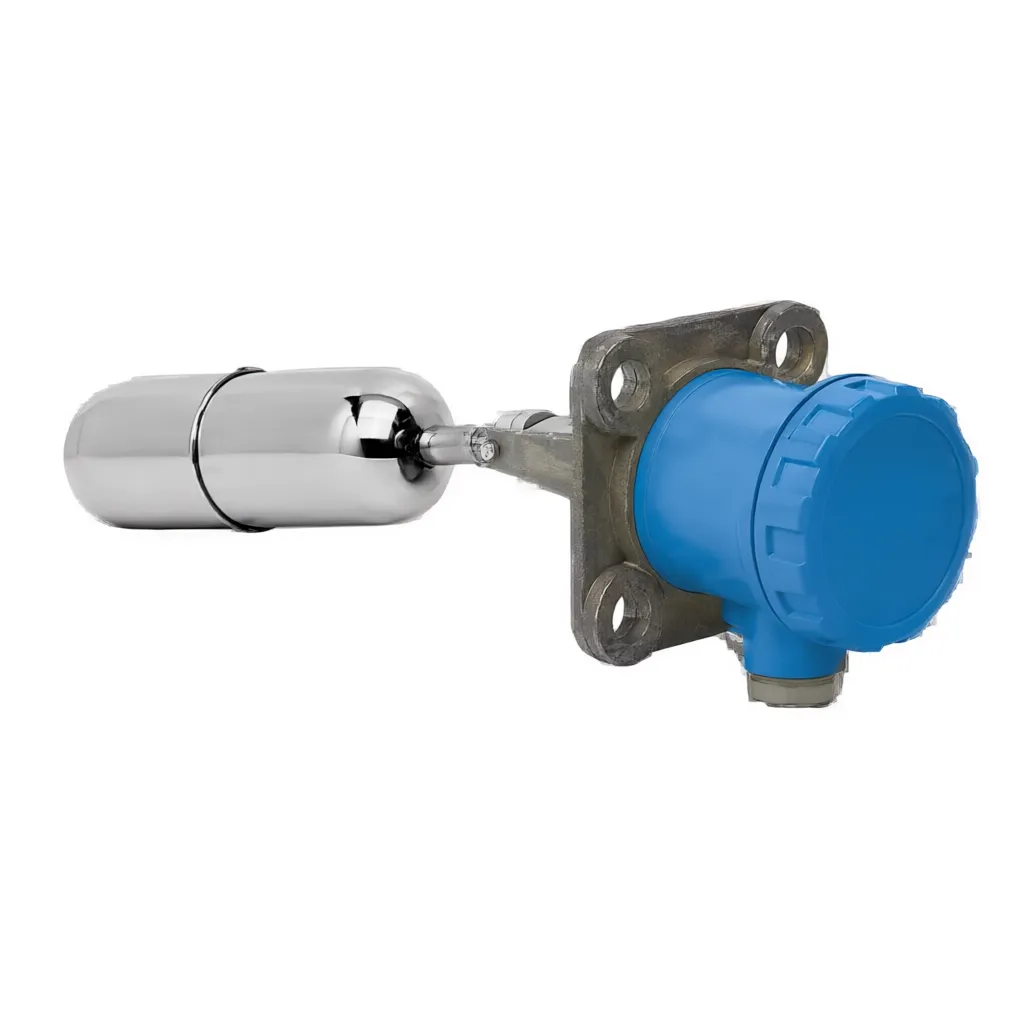

Side mounted level switch - float type, SS316. Cable Entry : ½" BSP ( F)
Process connection : Sq.Flange /Round Flange/
Standard Flange
Switch Type : Micro switch (SPDT)
Encloser : Pressure Die Casting, IP65
Switch Rating : 5A / 250 VAC
Switch Differential : Fixed 25 mm, -std,
Adjustable Between
40 ...300 mm -Optional,
Optional: High Temperature upto 350 ° C,
Insertion Depth : 235 mm( Minimum),
Specific Gravity : 0.8 depending on
float material and Dimension,
