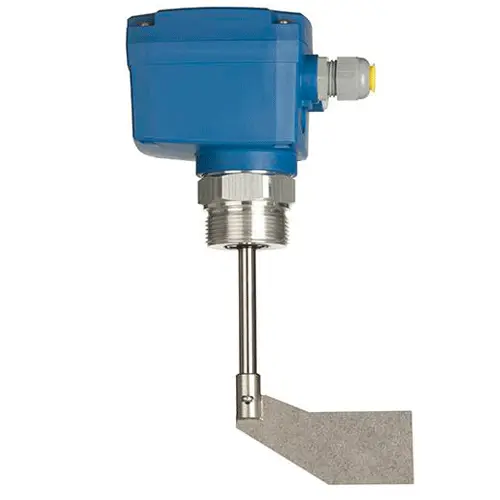

Level sensor RN4001, 24VDC/22..230VAC, G 1½", L=150mm, boot shaped vane 40x98mm
Process Temperature: max. +80°C (176°F)
Process Overpressure: max. 0.8 bar (11.60 psi)
Power Supply: 230 V AC, 50-60 Hz, 4 VA
Process Connection: Flange 150 x 150, 4 x 18 LK170
Material of Process Connection: Aluminium
Length of Extension L: 150 mm (5.91")
Material of Extension L: Stainless steel
Measuring Vane: Boot-shaped, 40 x 98 mm (1.57 x 3.86") stainless steel, suitable for 1½" socket
Local Certificates: Without
Bearing at Tube End: Without (Note for RN 3004: Bearing at tube end is factory mounted)
Extension / Flange Welded: Without
Internal Reference:
RN4001A0FA2AB***_0A**0*****_0*000000**_****0***00_0_0_0L=150mm
