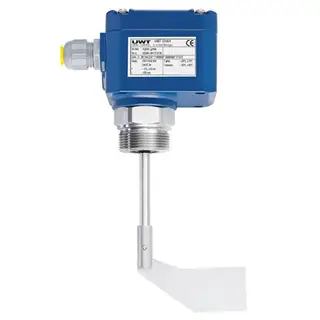

Līmeņa slēdzis RN3001, 24 VDC / 22..230 VAC, mērīšanas lāpstiņa 98 x 200 mm, G 1 1/2", L=150mm
Process Temperature: max. +80°C (176°F)
Process Overpressure: max. 0.8 bar (11.60 psi)
Power Supply: 24 V DC / 22..230 V AC universal voltage
Process Connection: Thread G 1½", DIN 228
Material of Process Connection: Stainless steel
Length of Extension L: 150 mm (5.91")
Material of Extension L: Stainless steel
Measuring Vane: Hinged vane, 98 x 200 mm (3.86 x 7.87"), double-sided (L = 10 mm [0.39"] longer)
Local Certificates: Without
Bearing at Tube End: Without (Note: For RN 3004, bearing at tube end is factory mounted)
Extension / Flange Welded: Without
Iekšējā atsauce |
RN3001A011FA3B3K_0***000000_00*0000000_000000*A0A_0_0_0L150mm |
| Ražotājs | UWT |
| Barošana | 24 VDC, 24 VAC, 230 VAC |
| Procesa pievienojums | G 1 1/2" |
RN3001 data sheet
Lejupielādēt
