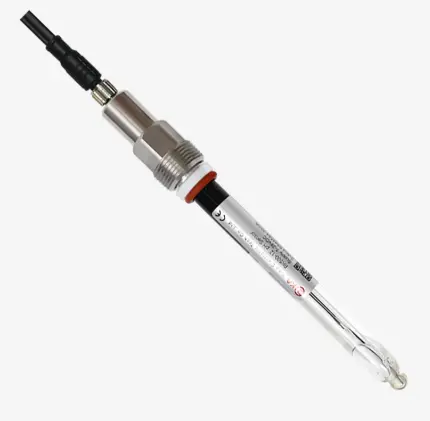

Industrial ph sensor, 0-14ph, max +100C, out 4-20mA+RS485, glass
The RK500-12-B3 is a cutting-edge pH monitoring sensor engineered to excel in demanding industrial, environmental, and high-temperature applications, redefining precision and reliability in sensor technology. Designed with a robust construction of Glass+316L materials, this sensor ensures long-term durability even in harsh environments, combining chemical resistance with structural strength.
Operating seamlessly across a wide temperature range of 0-100°C and handling pressures up to 1MPa, it features a versatile PG13.5 thread and M8 waterproof connector for easy integration into existing systems, while its IP68 ingress protection guarantees performance in wet or submerged conditions.
Material Glass+316L
Operation temperature 0-100℃
Working pressure 1Mpa
Thread PG13.5
Electrical connection M8 waterproof connector
Application High tempera-ture occasions, etc
Range 0-14pH
Resolution 0.01pH
Accuracy 0.01pH
Response time 10 seconds (98% flowing liquid)
Temperature compensation Thermal resistance
Power supply 7-28VDC(< 0.15W)
Output RS485 & 4-20mA
Dimensions Φ12.0 x 170.0
Ingress protection IP68
Internal Reference |
RK500-12B3A5000BA |
No Specifications
rk500-ph-datasheet.pdf
