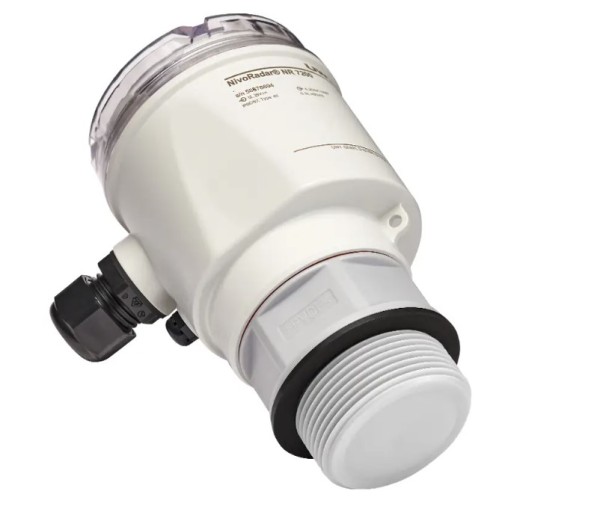

Level sensor NR7200 for liquids, FMCW radar, 0-15m, 4-20mA HART, G1 1/2; PVDF, 8° antenna, with display, max 80°C/3Bar, 6 years warranty
Process Temperature: max. 80°C (176°F)
Process Overpressure: max. 3 bar (43.51 psi)
Electronic Module: 2-wire 4-20 mA, HART
Process Connection: Thread G 1 1/2" DIN ISO 228-1
Measuring Range: max. 15 m (49.2 ft)
Cable and Line Entry: M20 x 1.5 cable gland Plug on
Display: With display (transparent lid)
Process Overpressure: max. 3 bar (43.51 psi)
Electronic Module: 2-wire 4-20 mA, HART
Process Connection: Thread G 1 1/2" DIN ISO 228-1
Measuring Range: max. 15 m (49.2 ft)
Cable and Line Entry: M20 x 1.5 cable gland Plug on
Display: With display (transparent lid)
Internal Reference |
NR7200F021HA2A1*_X0A00*0*** |
| Brand | UWT |
| Supply | 24 VDC |
| Process connection | G 1 1/2" |
| Wiring | 2-wire |
| Communication | HART |
