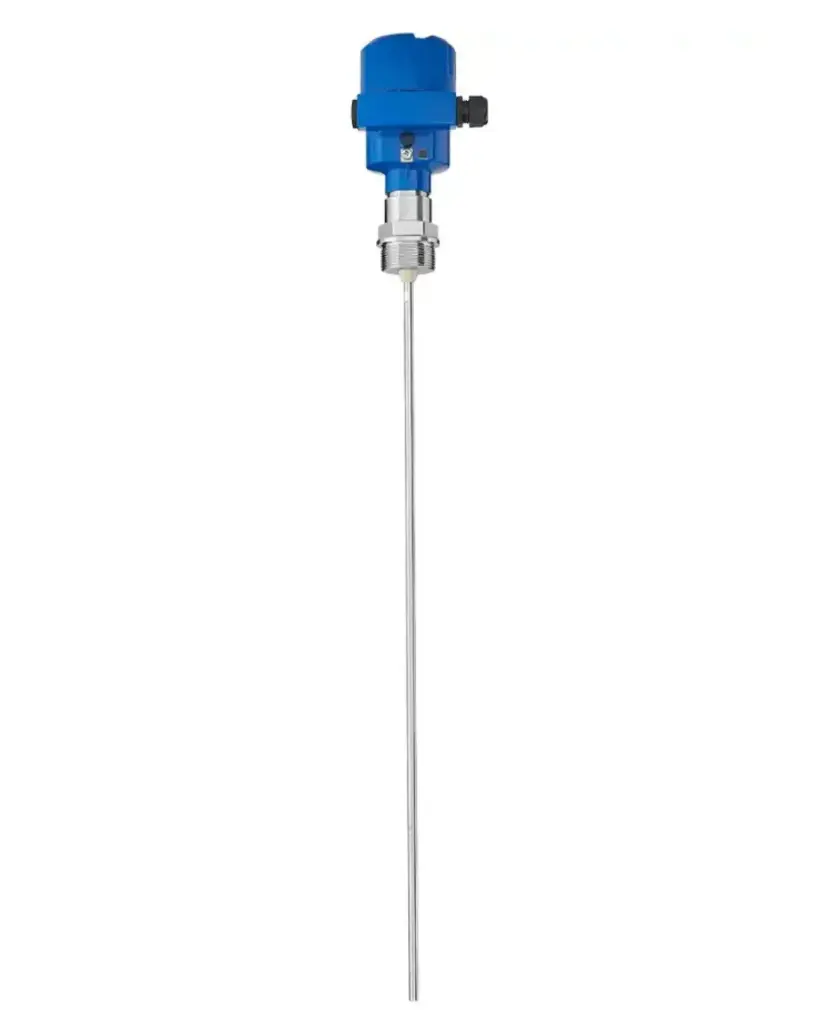

Līmeņa sensors, radara tipa NG8100, L=1000mm, 4-20 mA HART, ATEX, G 3/4” DIN 3852, procesam -40...+150°C, bez displeja
Process Temperature / Insulator: -40°C to +150°C (-40°F to 302°F), FKM Single line of defense, PEEK
Electronic Module: 2-wire, 4-20 mA, HART (9.6-35 V DC)
Process Connection: Thread G ¾" PN40, DIN3852-A
Version of Probe L: Rod ø8 mm (0.31")
Display and Adjustment Module: Without
Rigid Part L1: Without (rod version)
Cable Entry: 1x M20x1.5 screwed cable gland PA (ø5-9 mm [0.20-0.35"]), 1x blind plug
Language Manual: English
Housing: Aluminium single chamber
Centering Weight Dimensions (Diameter / Height): Without
Iekšējā atsauce |
NG8100AQFA3AXE00_X0D2*A0000L1000mm |
| Ražotājs | UWT |
| Procesa sensora izeja | Analogs 4-20 mA |
| Procesa pievienojums | G 3/4" |
| Komunikācija | HART |
| Elektriskais pievienojums | Spailes |
| Barošana | 12 VDC, 24 VDC |
| Maksimālais līmeņa mērījums | 1 m |
| Vadu skaits | 2-vadu |
NG8 data sheet
Lejupielādēt
