  2. All Products
  3. Level sensor, radar type NG8100, L=1000mm, 4-20 mA HART, ATEX, G 3/4" DIN 3852, for process -40...+150°C, without display
Default

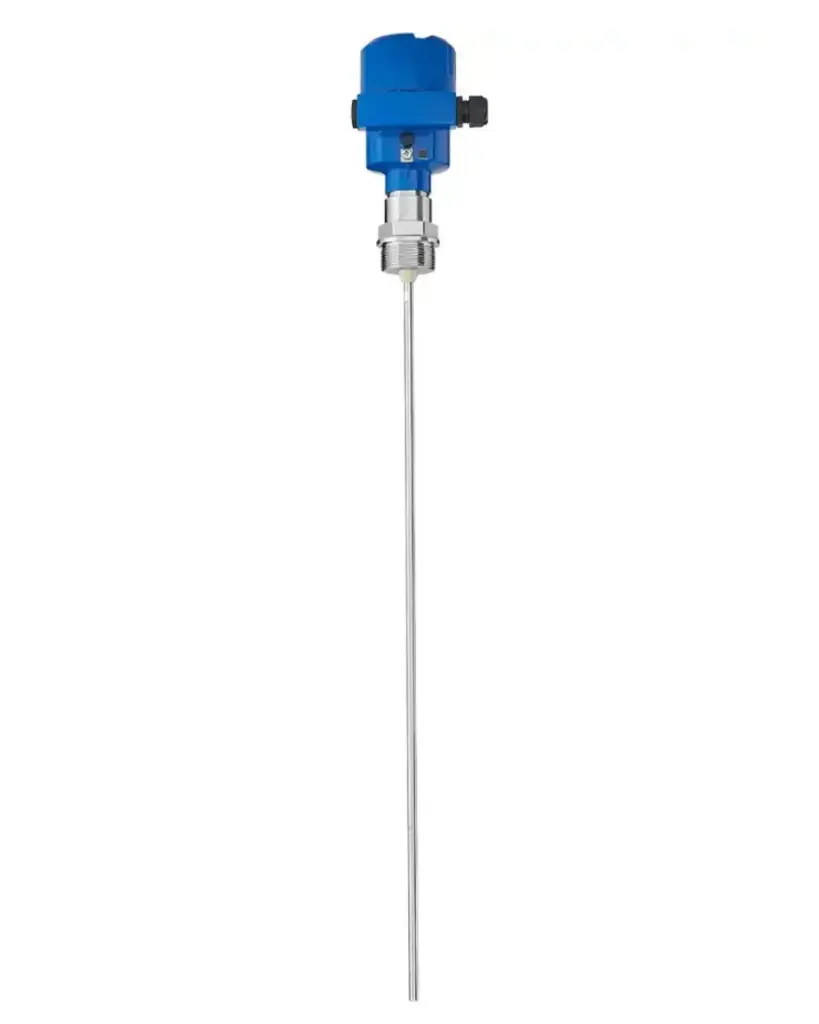

Level sensor, radar type NG8100, L=1000mm, 4-20 mA HART, ATEX, G 3/4" DIN 3852, for process -40...+150°C, without display

https://www.willsensors.com/web/image/product.template/3113/image_1920?unique=9287f1e
Process Temperature / Insulator: -40°C to +150°C (-40°F to 302°F), FKM Single line of defense, PEEK Electronic Module: 2-wire, 4-20 mA, HART (9.6-35 V DC) Process Connection: Thread G ¾" PN40, DIN3852-A Version of Probe L: Rod ø8 mm (0.31") Display and Adjustment Module: Without Rigid Part L1: Without (rod version) Cable Entry: 1x M20x1.5 screwed cable gland PA (ø5-9 mm [0.20-0.35"]), 1x blind plug Language Manual: English Housing: Aluminium single chamber Centering Weight Dimensions (Diameter / Height): Without

1,956.00 € 1956.0 EUR 1,956.00 € Tax Excluded

1,956.00 € Tax Excluded

Not Available For Sale

  • Brand
  • Process sensor output
  • Process connection
  • Communication
  • Electrical connection
  • Supply
  • Supply
  • Max Level Measurement
  • Wiring

This combination does not exist.

Contact Us
Brand: UWT
Process sensor output: Analog 4-20 mA
Process connection: G 3/4"
Communication: HART
Electrical connection: Terminal
Supply: 12 VDC, 24 VDC
Max Level Measurement: 1 m
Wiring: 2-wire

Terms and Conditions

Internal Reference: NG8100AQFA3AXE00_X0D2*A0000L1000mm
