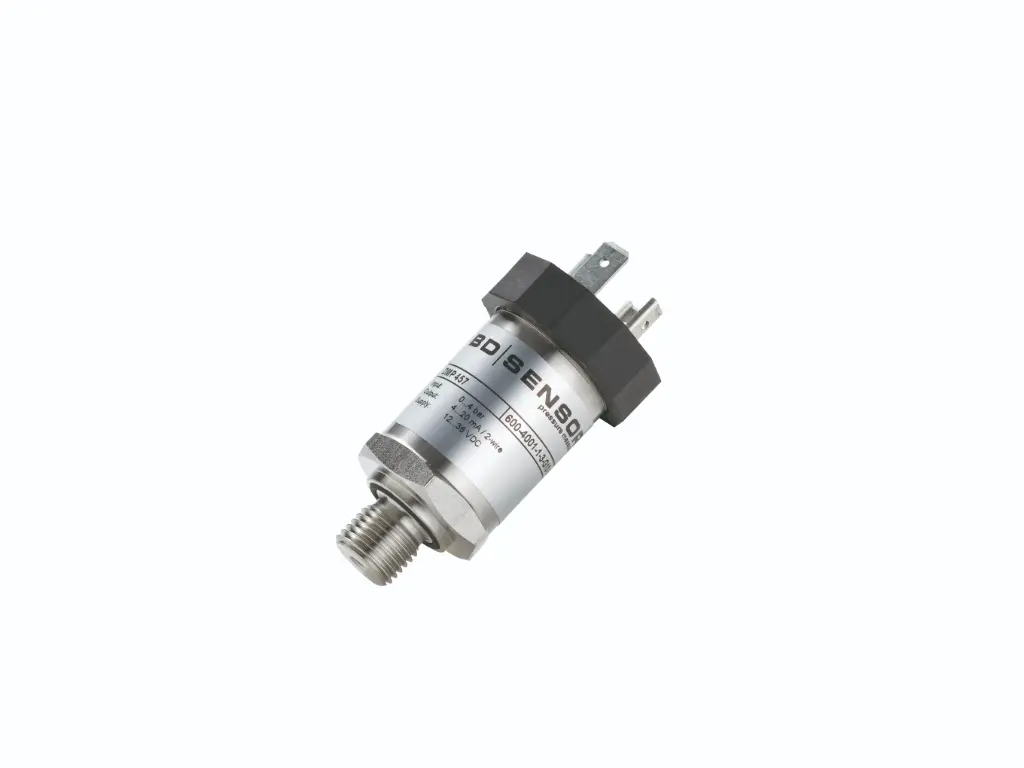

Pressure sensor DMP 457, 0...10 bar, Intrinsic safety 4-20 mA, G 1/2" DIN 3852,
DMP 457 is a stainless steel pressure transmitter designed for harsh marine, shipbuilding and offshore environments. It provides high accuracy and long-term stability for media compatible with 316L stainless steel, such as fuels, oils and water. With marine approvals (LR, DNV, GL, CCS), it is well suited for mechanical and plant engineering, the oil & gas sector and marine applications.
Internal Reference |
600-1002-E-3-G10-100-1-000 |
| Brand | BD Sensors |
| Pressure range (new) | 0...10 bar |
| Pressure range | 10 bar |
| Process sensor output | Analog 4-20 mA |
| Process connection | G 1/2" |
| Electrical connection | DIN Connector |
| Supply | 12 VDC, 24 VDC |
| Wiring | 2-wire |
| Pressure type | Relative pressure |
| Media type | Liquids, Gases |
