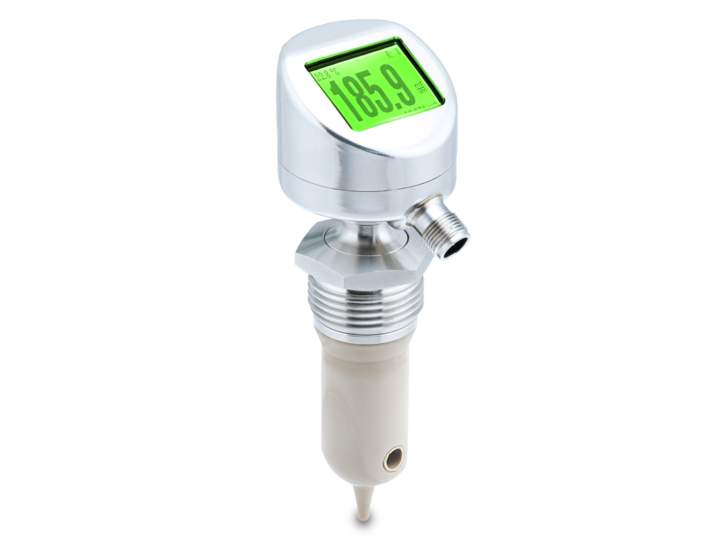

Conductivity Sensor PAC50H-1430A.32D11A.A04304.1030, 2% accuracy, IO-Link Dual Channel and 4…20 mA, M12-A, 5-pin, G 1 A hygienic, SS., With display, 37 mm probe, PEEK wetted parts, IP65/IP67/IP69K, 3-A / EHEDG approved.
Min. measurable conductivity
1 µS/cm
Max. measuring span
1000 mS/cm
Max. measuring error
≤ ± 2.0 % MV ± 15 µS/cm
Reference temperature
25 °C , adjustable
Repeatability
≤ ± 1.0 % MV ± 10 µS/cm
Compensated temperature range
-20 … 150 °C
Temperature compensation
0.0 … 5.0 %/K , adjustable
Step response time, T90
≤ 1.5 s
Sample time
≤ 0.4 s
Internal Reference |
11250898 |
Looking for a different configuration? Contact us!
| Brand | Baumer International |
| Electrical connection | M12 |
| Process connection | G 1" |
| Input channel | 2-channel |
| Communication | IO-Link |
PAC50H datasheet
Download
