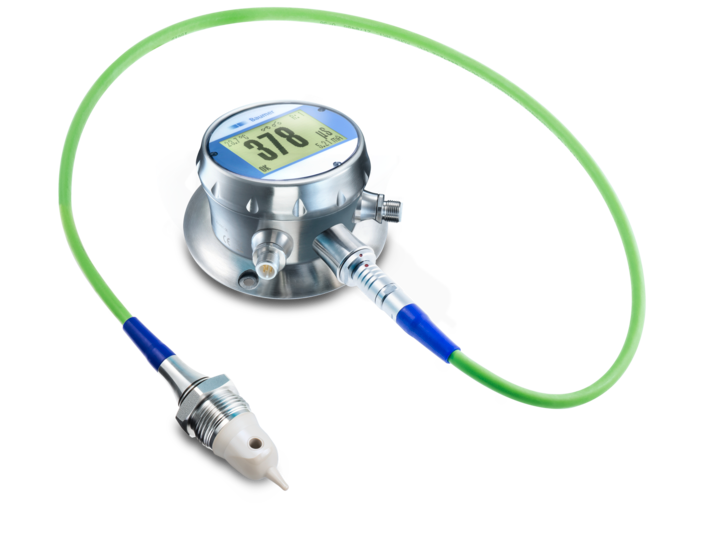

Vadītspējas sensors AFI5-A813.4002.0300
CombiLyz Conductivity Measurement Sensor; separated Sensor with 10-Meters Sensor Cable; Wall mounting Housing; Power Supply: 15-35 Vdc; Electrical Connection: Plastic, 2xM16x1.5 Cable Gland; With Display & activated Relays; Safety Features: Standard; Configuration: Nil; Output: 2 x 4 to 20mA; Version: Standard; Process Connection: G 1 A Hygienic, PEEK, Length: 60mm (A04); Approvals: 3-A/EHEDG; Without Calibration Certificate. Conductivity 14 selectable ranges
Min. measurable conductivity 50 µS/cm
Max. measuring span
1000 mS/cm
Min. measuring span
500 µS/cm
Max. measuring error
± 1.0 % FSR , 0 … 1 mS/cm to 0 … 500 mS/cm
± 1.5 % FSR , 0 … 1000 mS/cm
± 1.5 % FSR , 0 … 500 µS/cm
Reference temperature
25 °C , adjustable
Repeatability
< 0.5 % FSR , > 1 mS/cm
Compensated temperature range
-20 … 150 °C
Temperature compensation
0.0 … 5.0 % FSR/K , adjustable
Step response time, T90
≤ 2.0 s
Sample time
≤ 0.4 s
| Ražotājs: Baumer International |
| Procesa pievienojums: G 1" |
Dokumenti
Iekšējā atsauce:
1121861
