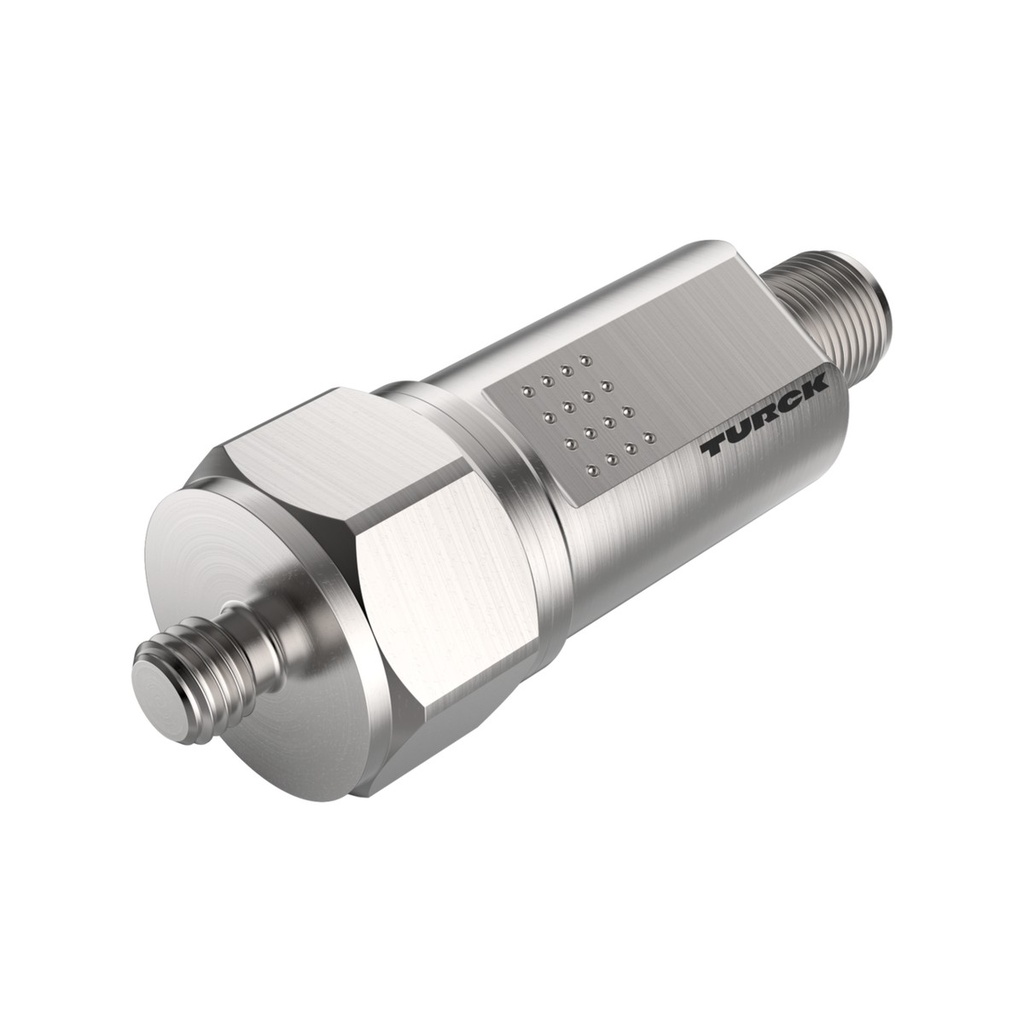

Vibration sensor CMVT-M8TE1X-LI2IOL-H1141, 48 g peak, 0...256 mm/s, BLOB 64 kHz, IO-Link and 4-20mA, M8 thread, IP67

CMVT-M8TE1X-LI2IOL-H1141 is a stainless steel vibration and temperature sensor with an M8 screw-in thread and a 64 kHz sampling rate. It is intended for rotating machine parts where rising vibration indicates bearing wear or imbalance; the sensor screws into the bearing housing along the axis where the vibration is expected.

• Measuring range: acceleration 33.9 g RMS / 48 g peak (10 Hz...10 kHz), velocity 0...256 mm/s RMS @ 159 Hz, temperature -40...+80°C; resolution 0.01 g and 0.01 mm/s
• Accuracy: ≤ ±0.5 % @ 159 Hz; temperature linearity deviation ≤ 10 %
• Outputs: pin 4 - IO-Link or SIO, pin 2 - 4...20 mA or SIO; IO-Link COM 3 (230.4 kBaud)
• Supply: 18...30 VDC, consumption < 120 mA in IO-Link mode
• Housing: stainless steel, M8 screw-in thread, 72.5 x 23.8 mm
• Environment: IP66/IP67, operating temperature -40...+80°C, shock 60 g (6 ms)
• Connection: M12 x 1 connector, 4-pin

Besides the aggregated RMS values the sensor outputs a bearing condition indicator and transfers the raw signal over IO-Link BLOB at up to 64 kHz with a low-pass filter at 12 kHz. FFT analysis can therefore be done off the sensor - on the controller or a server. Frequency ranges and thresholds are configurable over IO-Link.

MTTF 112 years to SN 29500 (Ed. 99) at 40°C. Shock tested to EN 60068-2-27.
