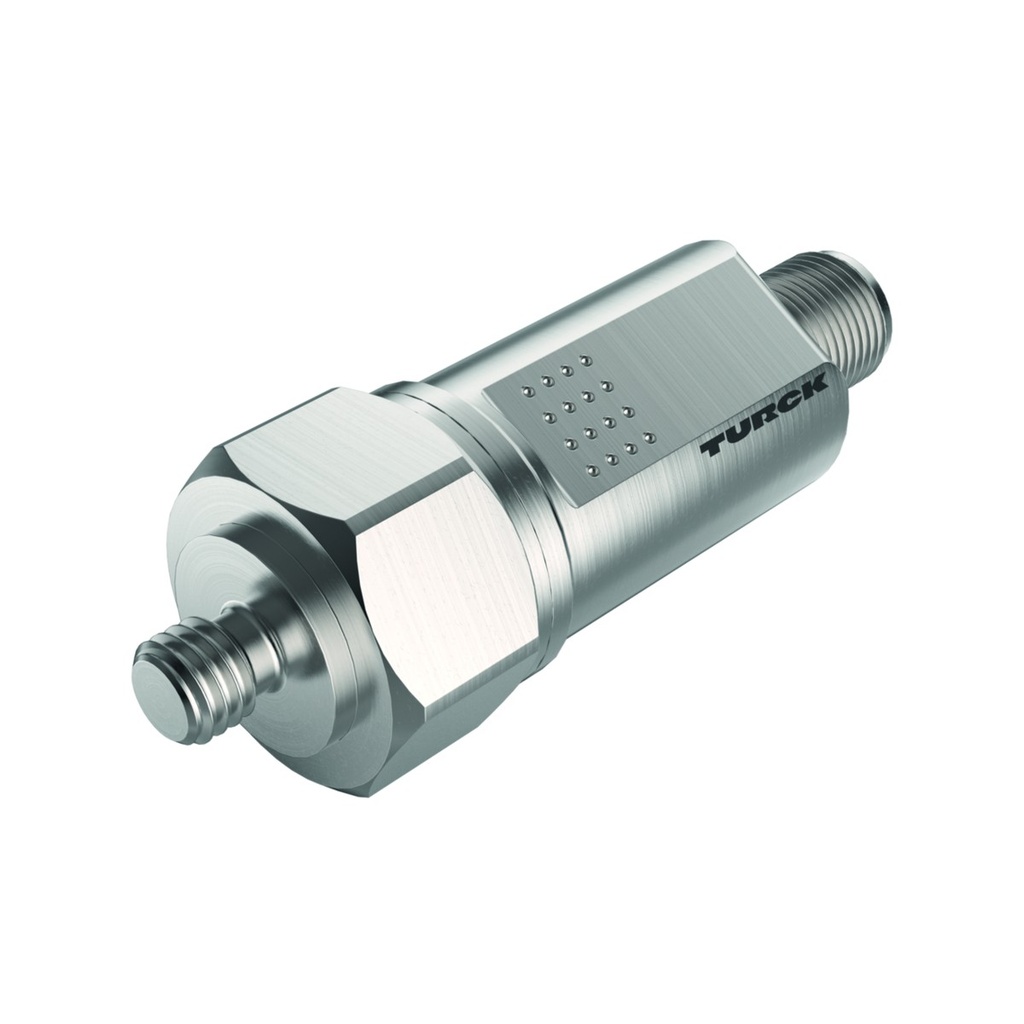

Vibration sensor CMVT-M8TA1X-LI2IOL-H1141, 10 g, 0...128 mm/s, IO-Link and 4-20mA, M8 thread, M12, IP67

CMVT-M8TA1X-LI2IOL-H1141 is a stainless steel vibration and temperature sensor with an M8 screw-in thread, measuring over one axis at a 23.6 kHz sampling rate. It is intended for rotating machine parts where rising vibration indicates bearing wear or imbalance; the sensor screws into the bearing housing along the axis where the vibration is expected.

• Measuring range: acceleration 10 g RMS / 14 g peak, velocity 0...128 mm/s RMS @ 159 Hz, temperature -40...+80°C; resolution 0.01 g and 0.01 mm/s
• Accuracy: ≤ ±0.5 % @ 159 Hz; temperature linearity deviation ≤ 10 %
• Outputs: pin 4 - IO-Link or SIO, pin 2 - 4...20 mA or SIO; IO-Link COM 2 (38.4 kBaud)
• Supply: 18...30 VDC, consumption < 120 mA in IO-Link mode
• Housing: stainless steel, M8 screw-in thread, 72.5 x 23.8 mm
• Environment: IP66/IP67, operating temperature -40...+80°C, shock 60 g (6 ms), vibration 20 g
• Connection: M12 x 1 connector, 4-pin

Frequency ranges and switching thresholds are configurable over IO-Link, so only the band in which a given machine's fault appears has to be watched. The 4...20 mA output on pin 2 carries the same quantity in analogue form, so the sensor connects to a controller with no IO-Link master.

MTTF 164 years to SN 29500 (Ed. 99). Shock tested to EN 60068-2-27, vibration to EN 60068-2-6.
