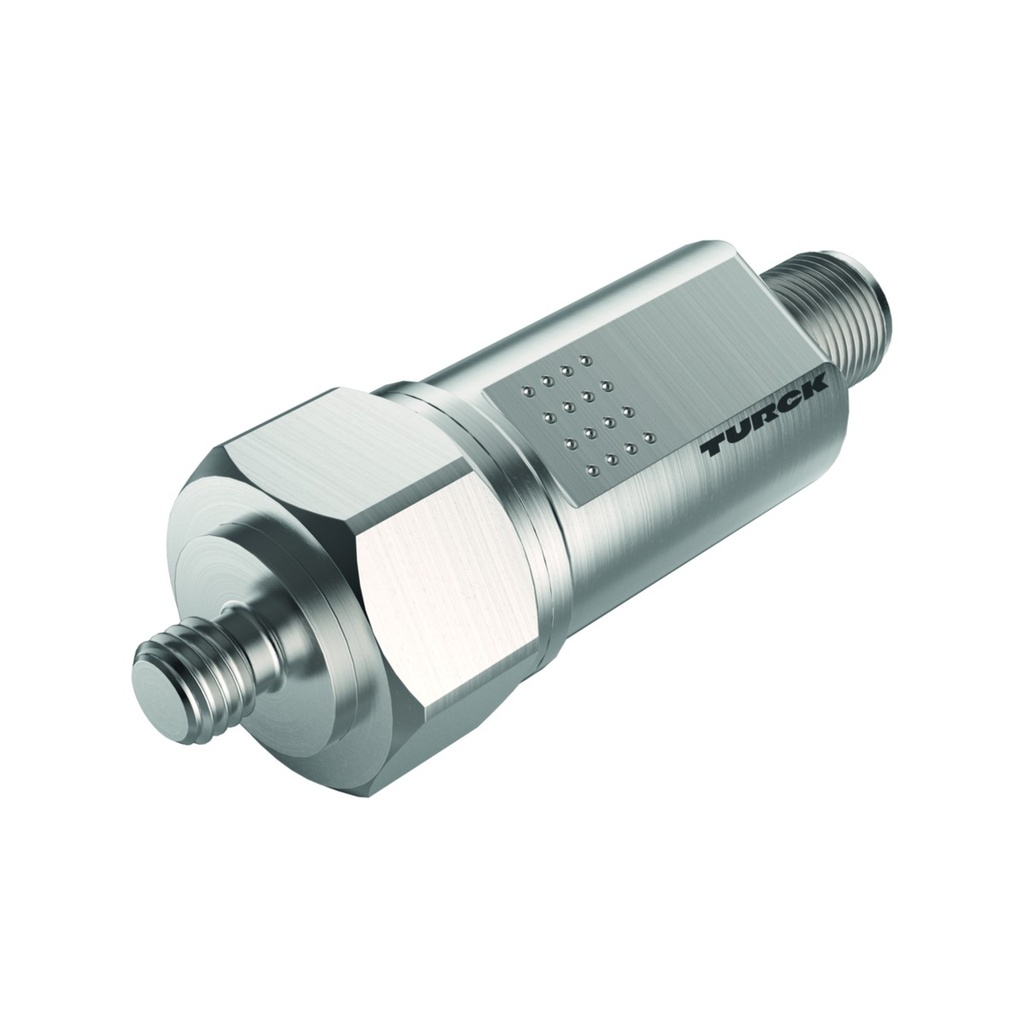

Vibration sensor CMVT-M8TA1X-LI220-H1141, 4-20mA = 0...20 mm/s RMS, 1-axis, M8 thread, M12, IP67

CMVT-M8TA1X-LI220-H1141 is a stainless steel vibration sensor with an M8 screw-in thread that measures the velocity RMS value over one axis and outputs it as a 4...20 mA signal, where 20 mA corresponds to 20 mm/s RMS. It is intended for rotating machine parts where rising vibration indicates bearing wear or imbalance; the sensor screws into the bearing housing along the axis where the vibration is expected.

• Measuring range: velocity 0...20 mm/s RMS, one axis, 23.6 kHz sampling
• Accuracy: ≤ ±0.5 % @ 159 Hz
• Outputs: 4...20 mA, load resistance ≤ 0.5 kΩ
• Supply: 18...30 VDC, consumption < 100 mA
• Housing: stainless steel, M8 screw-in thread, 72.5 x 23.8 mm
• Environment: IP66/IP67, operating temperature -40...+80°C, shock 60 g (6 ms), vibration 20 g
• Connection: M12 x 1 connector, 4-pin

There is no IO-Link and nothing to configure - the sensor wires straight into a controller's analogue input, and the measuring span is fixed by the model chosen.

MTTF 164 years to SN 29500 (Ed. 99). Shock tested to EN 60068-2-27, vibration to EN 60068-2-6.
