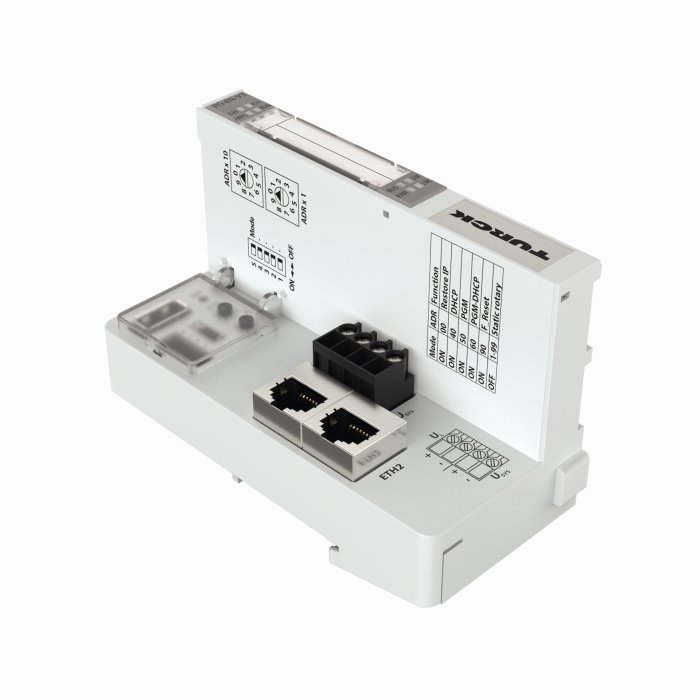

Programmable gateway BL20-PG-EN-V3-WV

The BL20-PG-EN-V3-WV is a variant of the BL20-PG-EN-V3 programmable gateway with a CODESYS WebVisu license included. The gateway works as the head module and controller of a BL20 station, and WebVisu lets a process visualisation be opened directly in a browser without extra SCADA software.

• Configuration: CODESYS V3 PLC environment with WebVisu license included, OPC UA server/client
• Communication: Modbus TCP, EtherNet/IP, PROFINET, integrated 10/100 Mbps switch (switched or dual-MAC mode), 2x RJ45
• Power: 24 VDC (18...30 VDC), module bus current ≤200 mA, field supply current up to 8 A, system supply current up to 1.3 A
• Indication: LEDs for PLC status, supply and fault signalling
• Environment: IP20, 0...+55°C

The gateway fits where an operator needs to view or control the BL20 station's process from any device with a browser, without installing a separate visualisation server. The station additionally requires matching BL20-E series I/O modules, ordered separately.

Complies with FM ATEX, IECEx and FM Class I Div. 2 (US and Canada) requirements, and carries an EU Declaration of Conformity.
