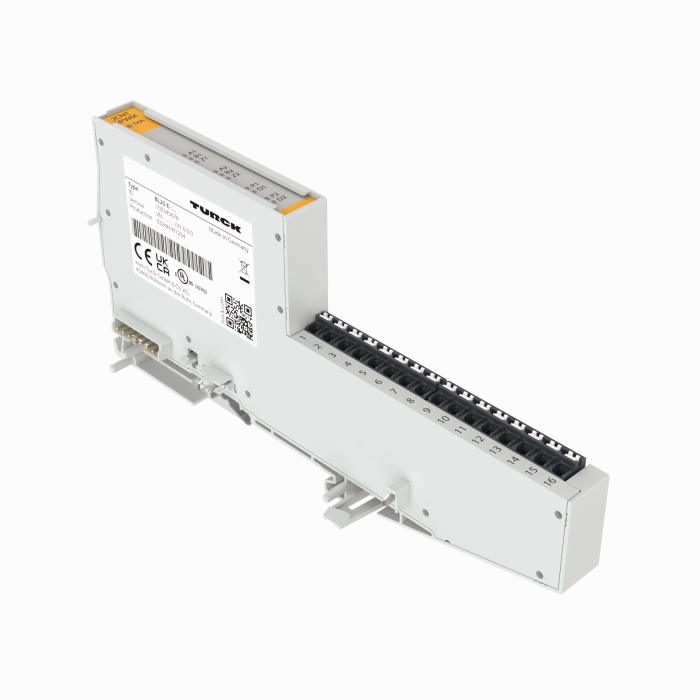

Module BL20-E-2CNT-2PWM

The BL20-E-2CNT-2PWM is a TURCK BL20-E series economy module with 2 counter/encoder input channels and 2 PWM outputs. Electronics and connection technology are combined in one housing, so no separate base module is needed.

• Inputs: 2 counter/encoder channels up to 200 kHz, thresholds parametrizable 0...1 V/0...4.5 V (low) and 2.5...30 V/7.5...30 V (high)
• Outputs: 2 PWM outputs 20 kHz / 0.5 A, 2 digital outputs 20 kHz / 0.5 A, output voltage 24 VDC
• Power: 24 VDC (18...30 VDC), field supply current ≈20 mA, module bus current ≈50 mA
• Connection: push-in terminals
• Environment: IP20, 0...+55°C

The module operates as part of a BL20-E station together with a BL20-E-GW gateway and other BL20-E modules, and is suited for reading encoders and driving motors or valves with a PWM signal.

Complies with cULus requirements.
