Level switch RN3001, 24 VDC / 22..230 VAC, measuring vane 98 x 200 mm, G 1 1/2", L=150mm

Price:

643.00 €
info@willsensors.lv| +371 29 449 814|  ​Dzelzava​s iel​a 127, Riga, LV-1021​is |🔖March = Level Measurement Month | -20% all UWT level sensors| Code: LĪMENIS
English (US)
Level switch RN3001, 24 VDC / 22..230 VAC, measuring vane 98 x 200 mm, G 1 1/2", L=150mm
  2. Shop
  3. Level switch RN3001, 24 VDC / 22..230 VAC, measuring vane 98 x 200 mm, G 1 1/2", L=150mm
Temperature and humidity transmitter with external probe - RS485 output, cable 2 meters
Temperature and humidity transmitter with external probe - RS485 output, cable 2 meters
302.00 €
302.00 €
Connection cable RKC4.4T-20/TXL
Connection cable RKC4.4T-20/TXL
36.50 €
36.50 €

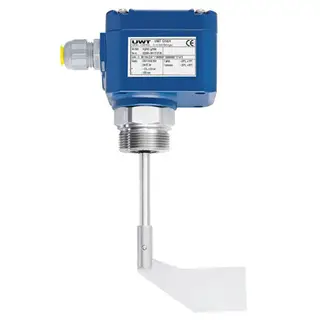

Level switch RN3001, 24 VDC / 22..230 VAC, measuring vane 98 x 200 mm, G 1 1/2", L=150mm

https://www.willsensors.com/web/image/product.template/3482/image_1920?unique=e969919
Process Temperature: max. +80°C (176°F) Process Overpressure: max. 0.8 bar (11.60 psi) Power Supply: 24 V DC / 22..230 V AC universal voltage Process Connection: Thread G 1½", DIN 228 Material of Process Connection: Stainless steel Length of Extension L: 150 mm (5.91") Material of Extension L: Stainless steel Measuring Vane: Hinged vane, 98 x 200 mm (3.86 x 7.87"), double-sided (L = 10 mm [0.39"] longer) Local Certificates: Without Bearing at Tube End: Without (Note: For RN 3004, bearing at tube end is factory mounted) Extension / Flange Welded: Without

643.00 € 643.0 EUR 643.00 € Tax Excluded

Not Available For Sale

  • Brand
  • Supply
  • Supply
  • Supply
  • Process connection

This combination does not exist.

Contact Us
UWT
Internal Reference
 RN3001A011FA3B3K_0***000000_00*0000000_000000*A0A_0_0_0L150mm

Terms and Conditions

Brand UWT
Supply 24 VDC, 24 VAC, 230 VAC
Process connection G 1 1/2"
RN3001 data sheet
Download
