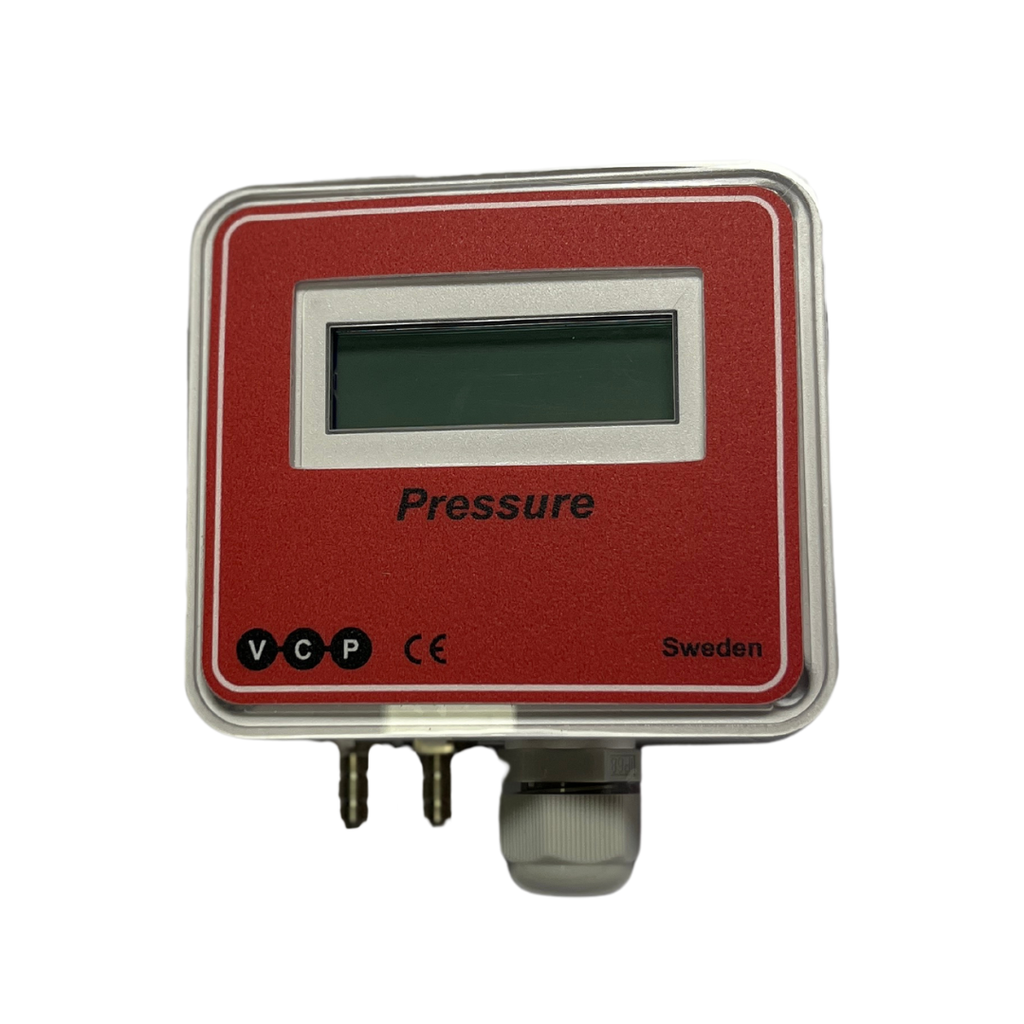

Differential pressure sensor, programmable range, 0-10 V, with display
Differential pressure sensor with a wide selection of ranges for both unidirectional (0 to 1000 Pa) and bidirectional measurements (up to ±500 Pa), ideal for accurate low-pressure monitoring. Pressure units (Pa, mmH₂O, mbar, inWG, mmHG, daPa, kPa, hPa) and response time (0.5 / 1 / 2 / 4 s) are selectable via DIP switches, with ±1% accuracy. 0–10 VDC output (3-wire connection), IP54 protection, operating temperature -10°C to +60°C, and storage temperature -10°C to +70°C.
Internal Reference |
PAT010D |
| Brand | VCP |
| Process sensor output | Analog 0-10 V |
| Pressure type | Differential pressure |
| Electrical connection | Terminal |
| Supply | 24 VAC, 24 VDC |
| Wiring | 3-wire |
| Media type | Gaiss |
| Working pressure range | 0..1000 Pa |
