Isolating switching amplifier IM12-DI01-2S-2T-PR/24VDC, 2-channel, 2 transistor outputs, 10-30VDC, Power bridge, SIL2

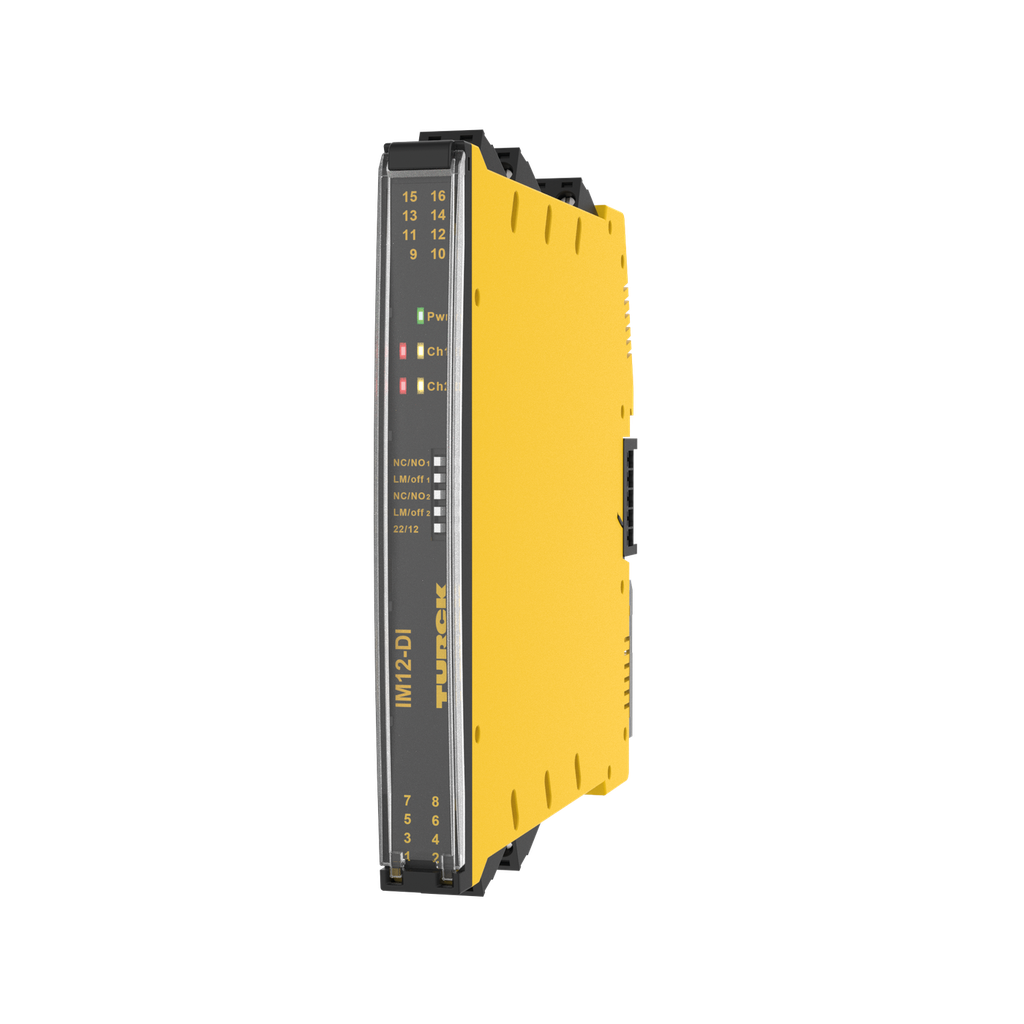

IM12-DI01-2S-2T-PR/24VDC is a 2-channel TURCK isolating switching amplifier in a 12.5 mm housing with two potential-free transistor outputs up to 10 kHz. It can be powered through a Power bridge, which also carries a collective fault signal; the connector for the bridge is included.

• Channels: 2 inputs for NAMUR sensors (EN 60947-5-6) or potential-free contacts
• Outputs: 2 potential-free, short-circuit-proof transistors, ≤30 V DC, 0.1 A, ≤10 kHz
• Supply: 10...30 V DC via terminals or Power bridge, ≤0.8 W
• Housing: polycarbonate/ABS, 120 x 12.5 x 117 mm, DIN rail (NS35)
• Connection: removable screw terminals, 0.2...2.5 mm²
• Environment: IP20, -25...+70 °C

DIP switches on the front set the output mode, input circuit monitoring and the operating mode. An input fault makes the red LED flash according to NE44 and blocks the transistor of that channel. Mechanical contacts need either monitoring switched off or the resistor wiring shown in the datasheet.

Approvals: ATEX, cULus; for use in ATEX Zone 2. Usable in safety circuits up to SIL 2 (IEC 61508).
