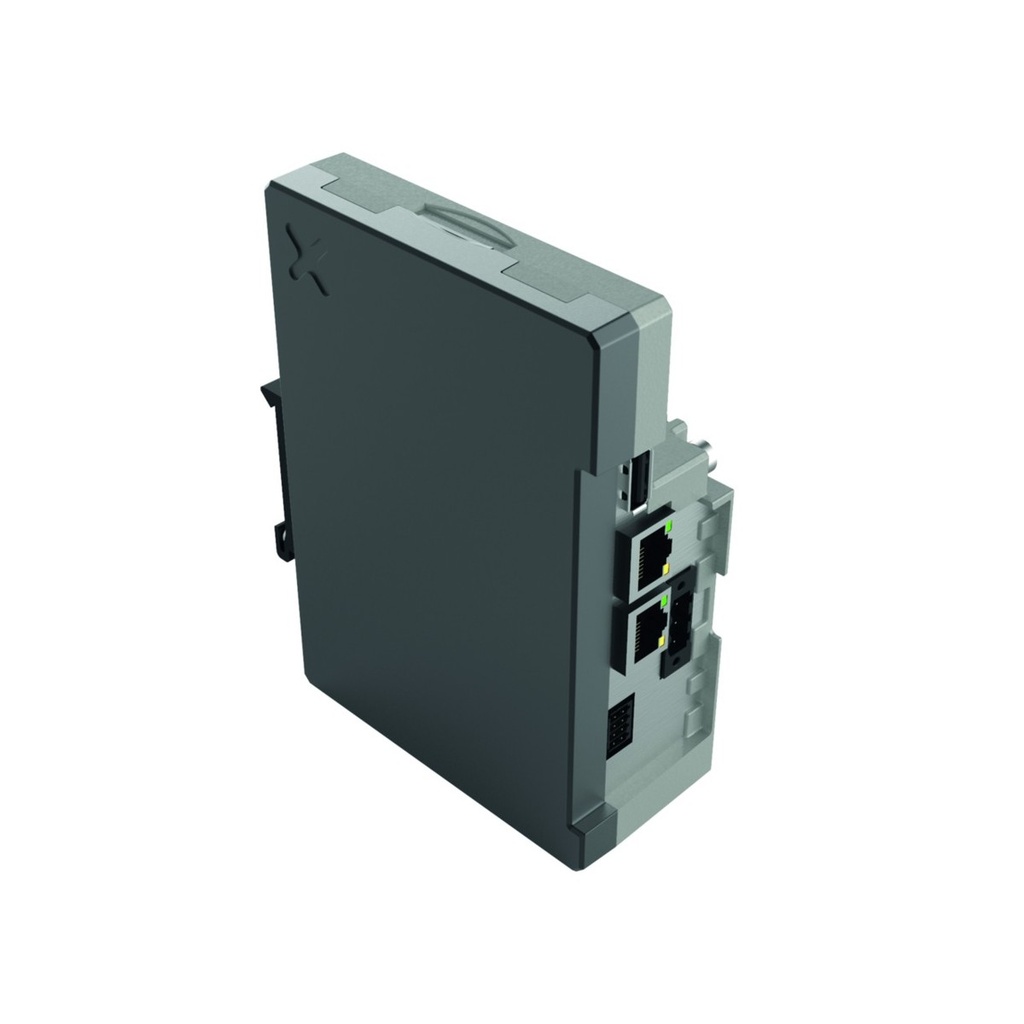

IoT gateway TX700S-P3WV01, CODESYS V3 PLC, WEB VISU, 2x Ethernet

TX700S-P3WV01 is a TURCK TX700 series IoT gateway without a display: a single-core CODESYS V3 PLC with WEB VISU, so the visualisation is opened in a web browser. It has two separate Ethernet ports and one expansion slot for plug-in modules.

• Communication: 2 x RJ45 Ethernet 10/100 Mbit (separate), 1 x RS232/RS485/RS422, 1 x USB host, SD card slot
• Expansion: 1 slot for up to 2 plug-in modules (I/O, CANopen, PROFIBUS DP, RS485, RS232, LTE/Wi-Fi)
• PLC: CODESYS V3.5.12.10, IEC 61131-3 (IL, LD, FBD, SFC, ST), 20000 kB program memory, 63 kB retain memory, programmed over Ethernet
• Controller: ARM Cortex A8, 1 GHz, 512 MB RAM, 4 GB Flash, battery-backed clock
• Supply: 24 VDC (10...32 VDC), max. 0.35 A
• Housing: 134 x 45 x 102 mm
• Environment: IP20, -20...+60 °C, 5...85 % RH non-condensing

The TX-PSC power connector and plug-in modules are available as accessories; the TX-IO-XX03 module needs the TX-EXTEND adapter in this housing.
