AirGate 4G is an industrial IoT Wi-Fi gateway cellular router that ensures secure remote access for distributed applications as it has the most common encryption protocols in IT infrastructure and fallback function for 4G / 3G / 2G.

It has high availability of operation at extended operating temperature and can be mounted on a DIN rail with external magnetic antennas.

Endowed with high connectivity and connection redundancy, it has cellular network (dual simcard), Ethernet, Wi-Fi, RS485 and RS232 interfaces. With excellent flexibility, it can operate with any communication protocol on any interface.

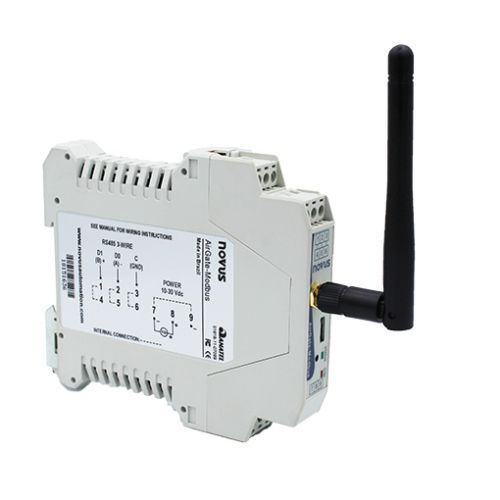

AirGate-Modbus is a gateway designed to create a network of wireless sensors.

It can be used as extender of Modbus RS485 network and offers flexibility and scalability for the various networks inside facilities. It has long range wireless communication, reaching up to 3200 feet (1000m).

Operating through own NOVUS-Air wireless network protocol (802.15.4), AirGate-Modbus is independent from the IT customer infrastructure.

The communication has secure data traffic, ensured by 128-bit encryption, and uses available frequency bands of less interference, providing stability and reliability in the communication link. Easy installation, configuration and diagnostics make the AirGate-Modbus an outstanding product for field commissioning.

Operating voltage: 10…30 VDC Maximum transmission distance: 3,200,000 mm (3.2 km) Antenna: External, RG58 RP-SMA connection Signal strength indicator: Integrated (suitable for alignment and diagnostics) Configuration: With DIP switches Communication protocol: Modbus RTU Interface: RS485 Transmission method: Frequency hopping spread spectrum (FHSS) Time division multiple access (TDMA) Determined data transmission Transmission power: 63 mW (18 dBm, throughput) ≤ 20 dBm EIRP Inputs: 4 x PNP digital inputs 2 x analog inputs (0…20 mA) Outputs: 4 x PNP digital outputs 2 x analog outputs (0…20 mA) Current consumption: < 60 mA at 24 VDC
