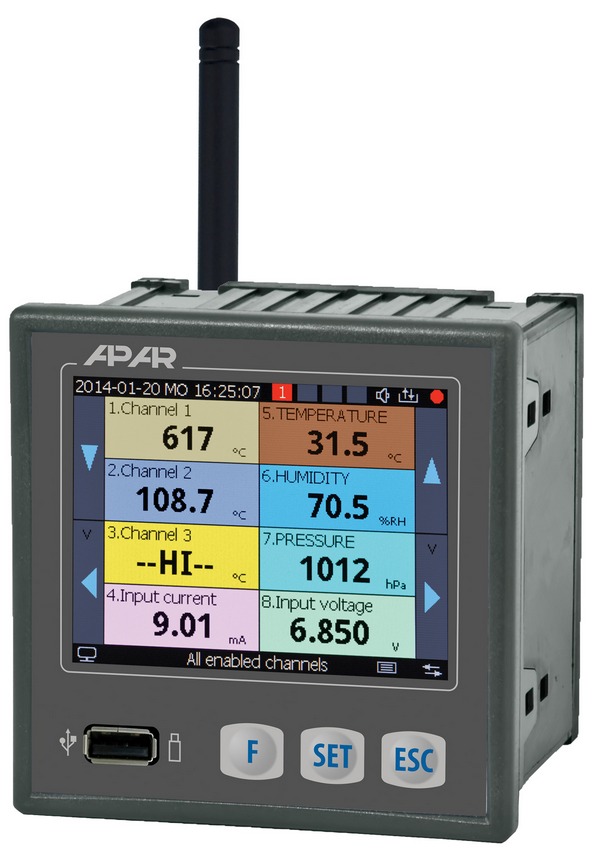

Data logger AR407/S1/P/P/P/P, 868MHz wireless and wired, 16 channels, 4 relays, Ethernet, 230VAC

AR407/S1/P/P/P/P/IP65 is an APAR panel recorder that collects and logs up to 16 channels from AR43x wireless sensors over 868 MHz, from Modbus RTU devices on RS485, from Modbus TCP devices on Ethernet and from one wired temperature probe. It has a 320x240 colour touch screen in a 96x96 mm case.

• Channels: up to 16 - AR43x wireless sensors, Modbus RTU (master/slave), Modbus TCP, 1 wired probe
• Radio: ISM 868 MHz, up to 200 m in open space, up to 400 m with repeaters, 7 radio channels
• Recording: 4 GB internal memory (at least 300 days of 16 channels every 1 s) or USB flash drive
• Outputs: 4 relays SPST-NO 5 A/250 VAC with timer, sound and e-mail alarms
• Communication: Ethernet (web server, Modbus TCP, e-mail), RS485, USB
• Supply: 230 VAC (85-260 VAC)
• Housing: 96x96x79 mm, cut-out 92x89 mm, IP30 front, IP20 terminals, 0...50 °C

The recorder is the receiver for APAR wireless sensors: it stores the readings, shows them on screen and on a web page, and switches its outputs on alarm. Sensors are ordered separately. The free ARsoft-LOG and ARsoft-CFG (Windows) read the archives and set parameters over USB, RS485 or Ethernet.

Complies with the RED directive 2014/53/EU.
