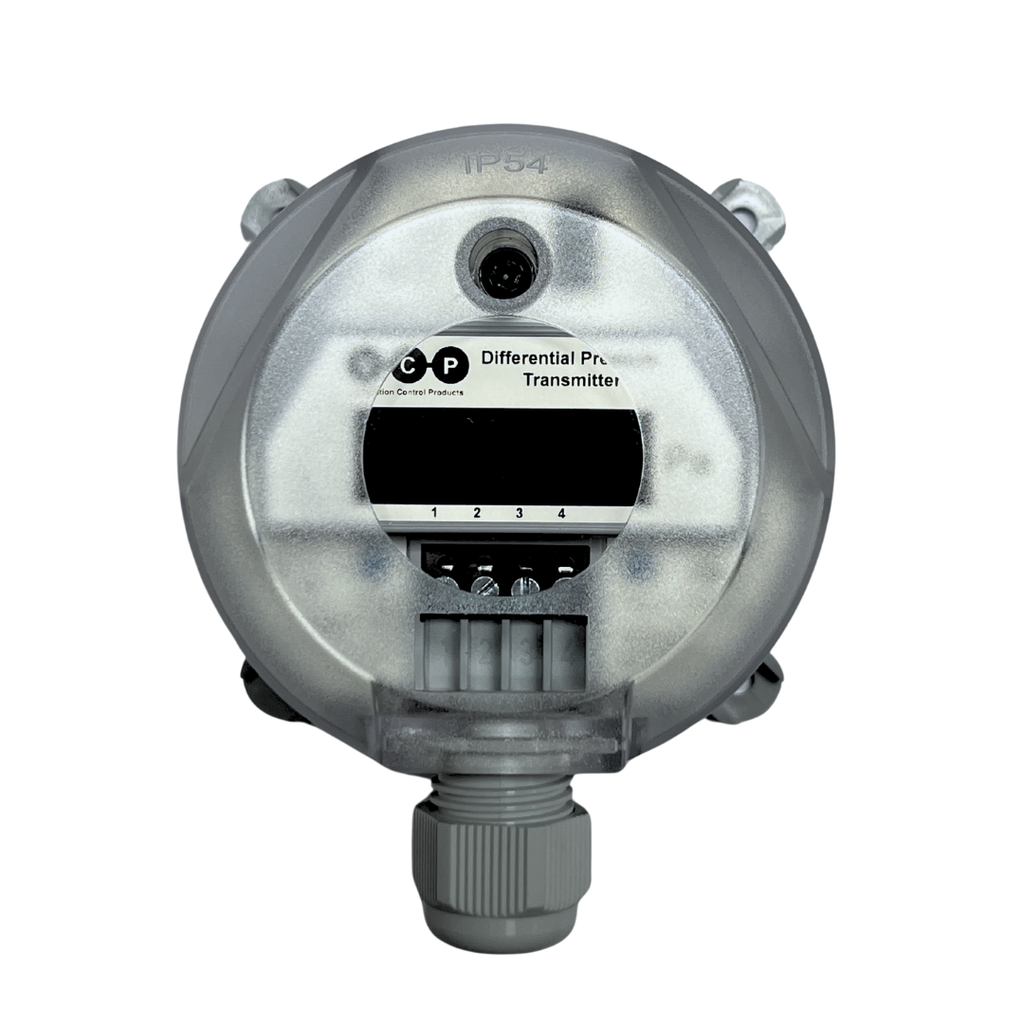

Differential pressure sensor 0...5000 Pa/0...10000 Pa, 4-20 mA/0-10 V output, with LED display
Differential pressure sensor with two measuring ranges (0–5000 Pa or 0–10000 Pa) for dependable mid-range pressure monitoring. It provides flexible integration via 0–10 VDC and 4–20 mA analog outputs and runs on 24 V AC/DC. The LED display shows real-time pressure readings, and the response time can be selected to match your system—fast 100 ms feedback or smoother 1 second operation.
Internal Reference |
984M.573114b4 |
| Brand | VCP |
| Process sensor output | Analog 4-20 mA, Analog 0-10 V |
| Pressure type | Differential pressure |
| Electrical connection | Terminal |
| Supply | 24 VAC, 24 VDC |
| Wiring | 3-wire |
| Media type | Gaiss |
| Working pressure range | 0..5000 Pa, 0..10000 Pa |
984M-series datasheet
Download
