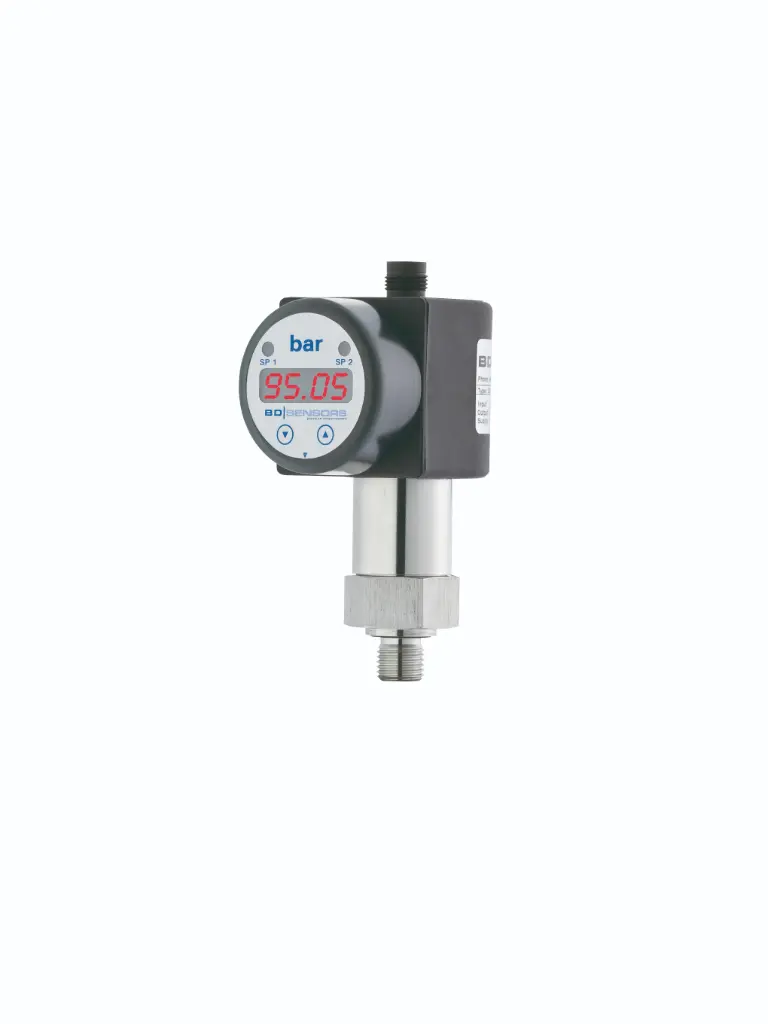

Pressure switch DS200, 0...10 bar, 4-20 mA, G 1/2" DIN 3852, 2 x PNP, M12 connector, 5-pin, with display
DS 200 is an electronic pressure switch with a stainless steel sensor, combining an intelligent switching function with an integrated digital display. It is designed for universal use in a wide range of industrial applications. As standard, DS 200 features a PNP contact and a rotatable 4-digit LED display for easy reading in any mounting position. Optional variants – such as an intrinsically safe version and analogue output – make it a flexible solution for process monitoring wherever reliable pressure control and local indication are required.
Internal Reference |
780-1002-1-2-3-N11-100-1-000 |
| Brand | BD Sensors |
| Pressure range_old | 10 bar |
| Pressure range (bar) | 0...10 bar |
| Process sensor output | Analog 4-20 mA |
| Process connection | G 1/2" |
| Supply | 24 VDC |
| Wiring | 2-wire |
| Pressure type | Relative pressure |
| Media type | Liquids, Gases |
DS200.pdf
Download
