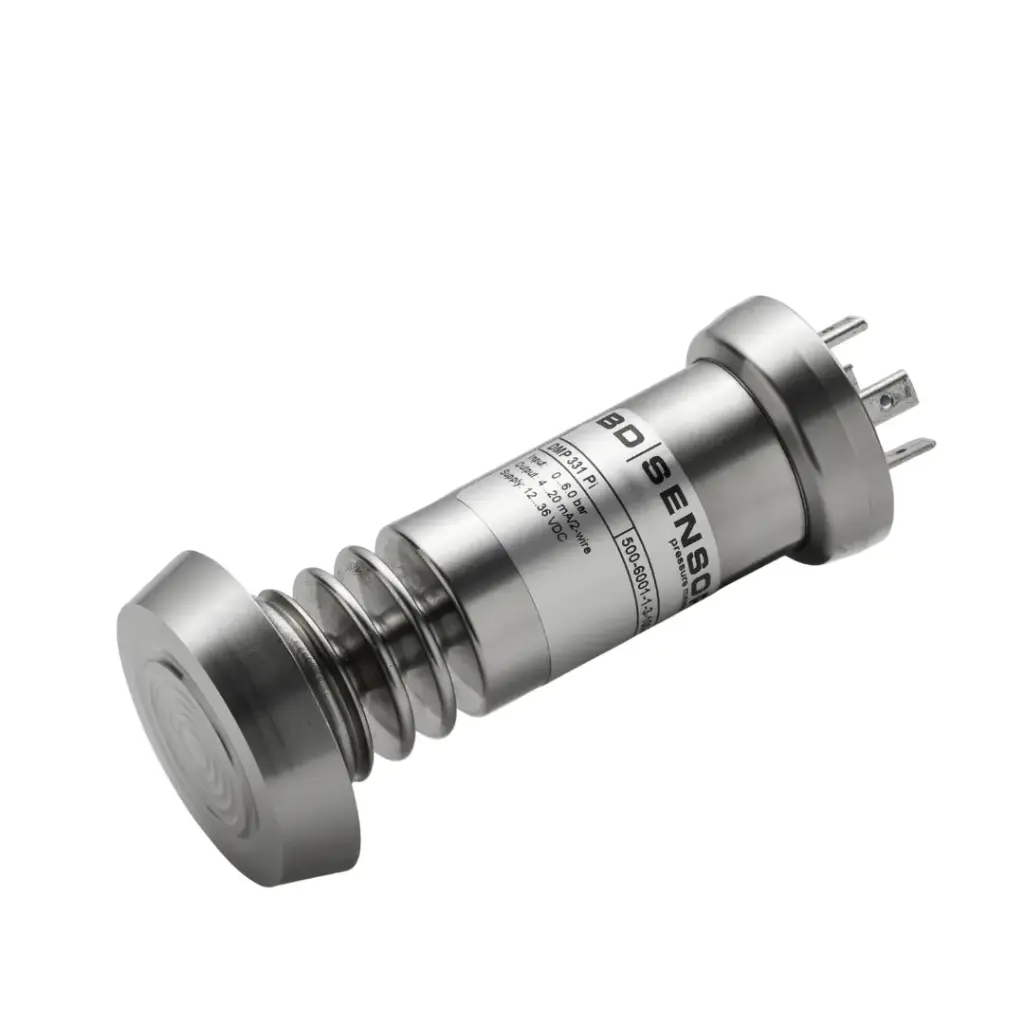

Pressure sensor DMP331Pi, -1...0 bar, 4-20 mA, G 1" flush cone, 7-pin connector, RS232
DMP 331 Pi is a high-precision, flush-mounted stainless steel pressure transmitter for hygienic applications in the food and pharmaceutical industries. The specially designed stainless steel sensor is combined with a new digital electronics platform that actively compensates hysteresis, temperature errors and non-linearity. Standard operation is possible from -40…125 °C, and with an integrated cooling element the process temperature range can be extended up to 300 °C.
Internal Reference |
500-X102-1-I-A00-K31-1-1-2-121 |
| Brand | BD Sensors |
| Pressure range_old | ≤ 0.1 bar |
| Pressure range (bar) | -1...0 bar |
| Process sensor output | Analog 4-20 mA |
| Process connection | G 1" |
| Wiring | 7-wire |
| Supply | 12 VDC, 24 VDC |
| Communication | RS232 |
| Pressure type | Relative pressure |
| Media type | Liquids, Gases |
| Membrane type | Flush |
DMP331Pi.pdf
Download
