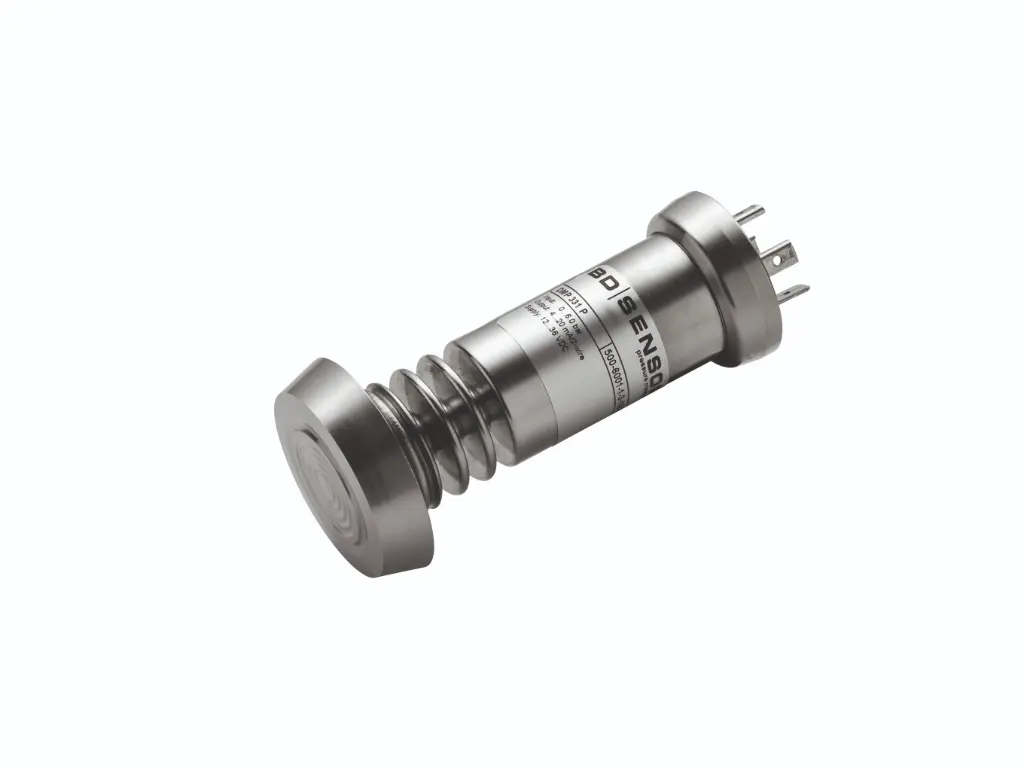

Pressure sensor DMP331P, 0...0.4 bar, 4-20 mA, G 1" flush cone
DMP 331P is a flush-mounted stainless steel pressure transmitter designed for hygienic applications in the food and pharmaceutical industries. Its compact design with hygienic process connections ensures high accuracy, excellent temperature stability and long-term reliability. Thanks to its modular construction, it can be configured with different process connections, filling fluids, cooling elements and electrical connections, making it a flexible solution for most hygienic process applications.
Internal Reference |
500-4000-1-3-100-K31-1-0-1-879 |
| Brand | BD Sensors |
| Pressure range_old | 0.4 bar |
| Pressure range (bar) | 0...0.4 bar |
| Process sensor output | Analog 4-20 mA |
| Process connection | G 1" |
| Electrical connection | DIN Connector |
| Supply | 12 VDC, 24 VDC |
| Wiring | 2-wire |
| Pressure type | Relative pressure |
| Media type | Liquids, Gases |
| Membrane type | Flush |
DMP331P.pdf
Download
