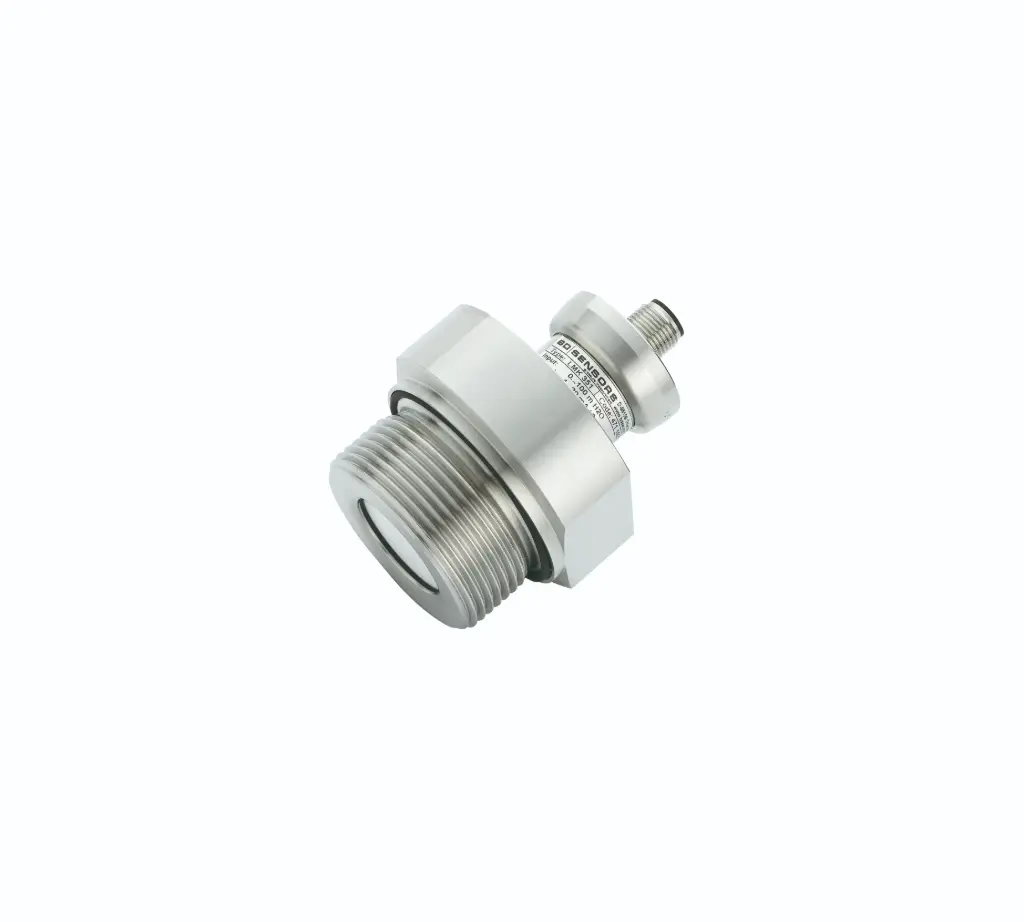

Level sensor LMK351, 0-2.5 m H2O, 4-20 mA, G 1 1/2" DIN 3852 flush, 2 m PVC cable
LMK 351 is a screw-in pressure transmitter with a flush ceramic sensor, designed for small system pressure and level measurement in tanks and containers. The in-house developed capacitive ceramic element offers high resistance to aggressive process conditions. Thanks to the flush diaphragm, it is also suitable for operation in viscous and pasty process environments, including aggressive fluids, fuels and oils, water and wastewater, making it ideal for environmental and renewable energy applications.
Internal Reference |
471-2500-1-3-TR0-M00-1-1-2-000 |
| Brand | BD Sensors |
| Max Level Measurement | 2.5 m |
| Process sensor output | Analog 4-20 mA |
| Process connection | G 1 1/2" |
| Electrical connection | Cable Connection |
| Cable lenght | 2 m |
| Supply | 12 VDC, 24 VDC |
| Wiring | 2-wire |
| Media type | Liquids |
| Membrane type | Flush |
LMK351.pdf
Download
