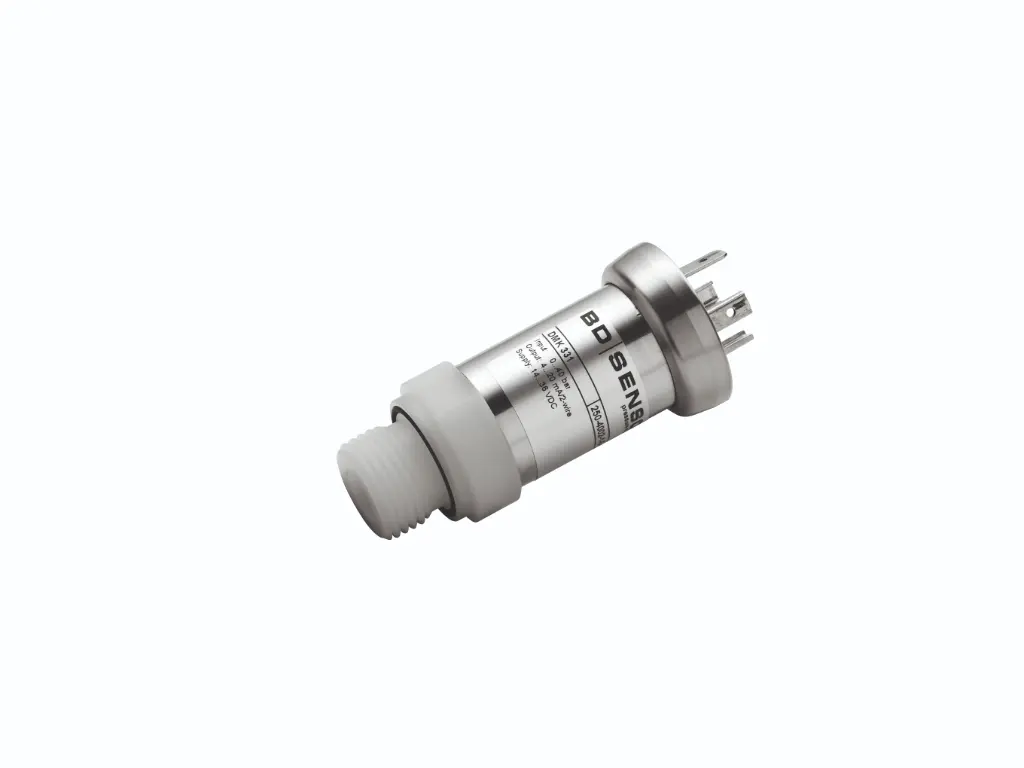

Pressure sensor DMK331, -0.4...0 bar, 0-10 V, G 1/2" DIN 3852 flush, M12 connector, 4-pin
DMK 331 is an industrial pressure transmitter with a ceramic sensor, designed for use with pasty, contaminated or aggressive media, as well as oxygen at low pressure ranges. A wide choice of electrical and mechanical connections makes it easy to integrate into different systems. Typical application areas include mechanical and plant engineering, the energy sector, medical technology and environmental engineering.
Internal Reference |
250-M400-3-8-M10-F00-1-1-2-000 |
| Brand | BD Sensors |
| Pressure range_old | ≤ 0.1 bar |
| Pressure range (bar) | -0.4...0 bar |
| Process sensor output | Analog 0-10 V |
| Process connection | G 1/2" |
| Electrical connection | M12 |
| Supply | 24 VDC |
| Wiring | 3-wire |
| Pressure type | Relative pressure |
| Media type | Liquids, Gases |
| Membrane type | Flush |
DMK331.pdf
Download
