Banner Engineering QM30VT3 series vibration and temperature sensors with built-in diagnostics
QM30VT3 series sensors deliver real-time vibration and temperature data for early fault detection in rotating equipment. They help reduce unplanned downtime, lower maintenance costs, and extend machine life—without requiring vibration analysis expertise. Designed for both industrial and washdown environments. Communication via Modbus RTU (RS-485) allows simple integration into PLCs, HMIs, and SCADA systems.

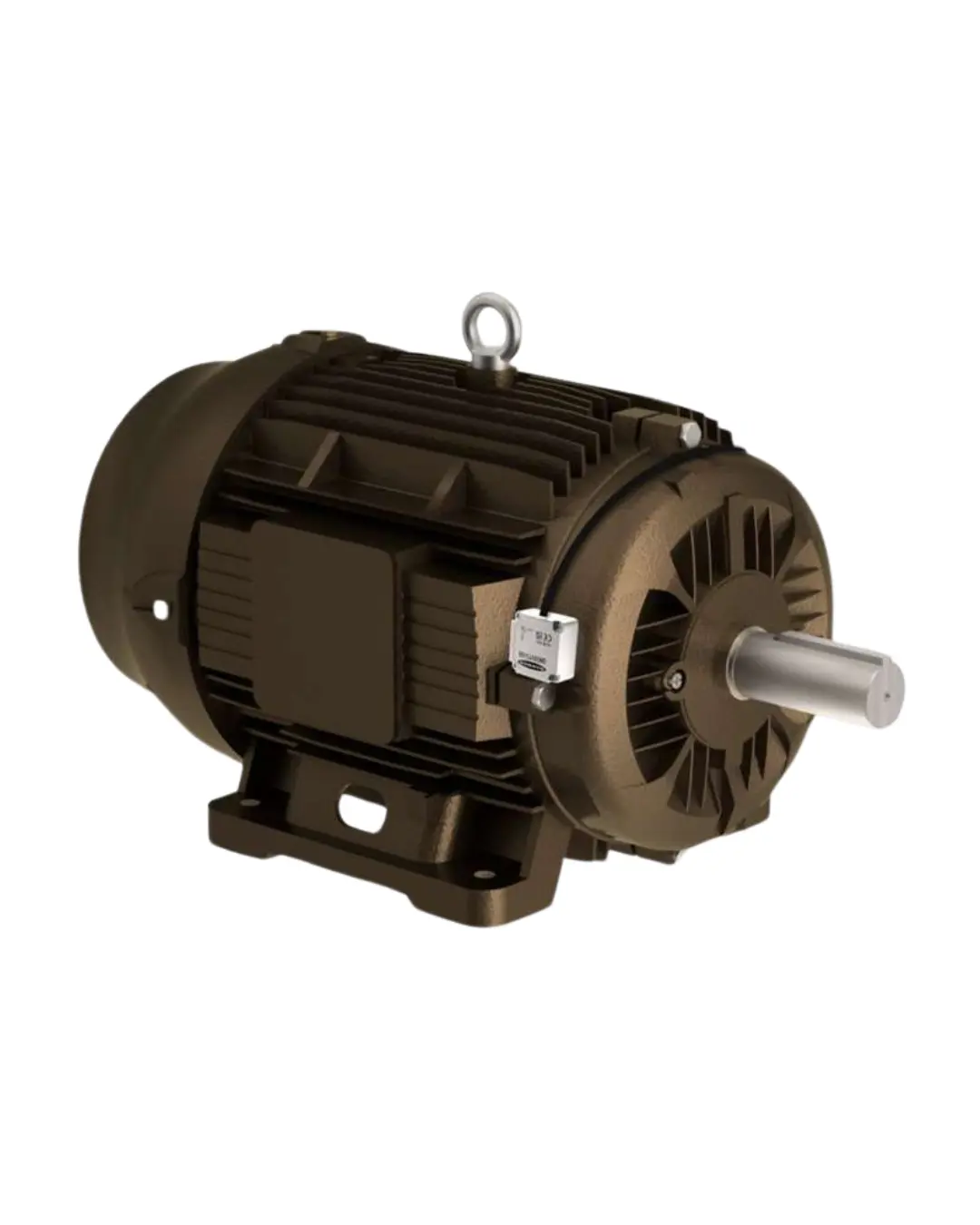

High-Performance 3-Axis Vibration Monitoring
E The QM30VT3 sensors feature advanced vibration diagnostics for comprehensive machine condition analysis:
- VIBE-IQ® machine learning automatically sets vibration baselines and thresholds—no gateway or specialized knowledge needed.
- High-Frequency Enveloping (HFE) isolates weak, early-stage faults like bearing wear typically hidden by dominant low-frequency signals.
- 6–5300 Hz frequency range supports fault detection from slow-speed shaft misalignment to high-speed gearbox gear mesh issues.
- Adjustable Fmax balances resolution and range, enabling focused detection of low-frequency faults or full-spectrum monitoring.
- High-speed sampling (4096 samples/axis) improves precision, capturing subtle vibration events with greater clarity.
Need help selecting the right model?
Tell us about your application — our team will help configure the best solution for your needs.

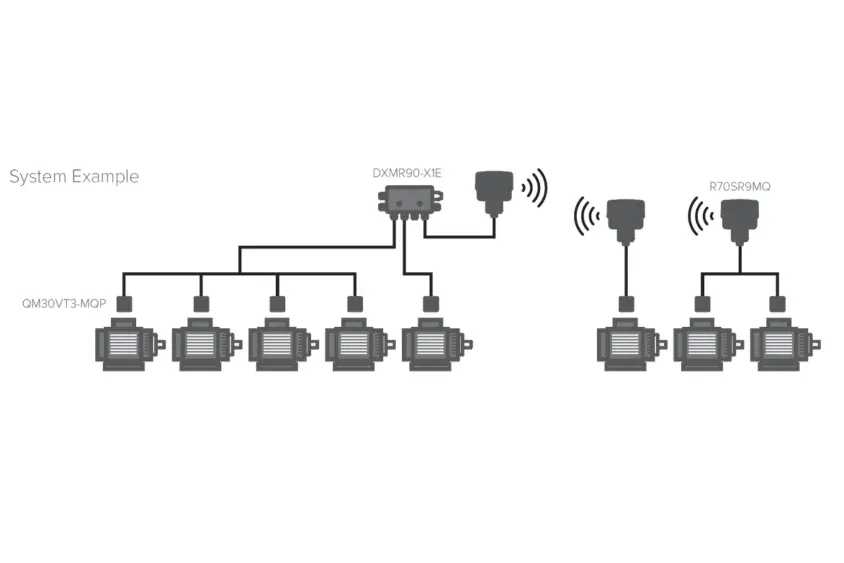

Scalable Architecture for Any Monitoring Scope
From individual machines to full-scale production lines, the QM30VT3 series supports scalable vibration monitoring through modular, plug-and-play integration. Sensors connect directly to RS-485 Modbus networks and can be combined with wireless gateways, industrial controllers, or communication modules as needed. Built-in tools like HFE and adjustable Fmax provide precise fault detection across various machine types—no external software or manual processing required.

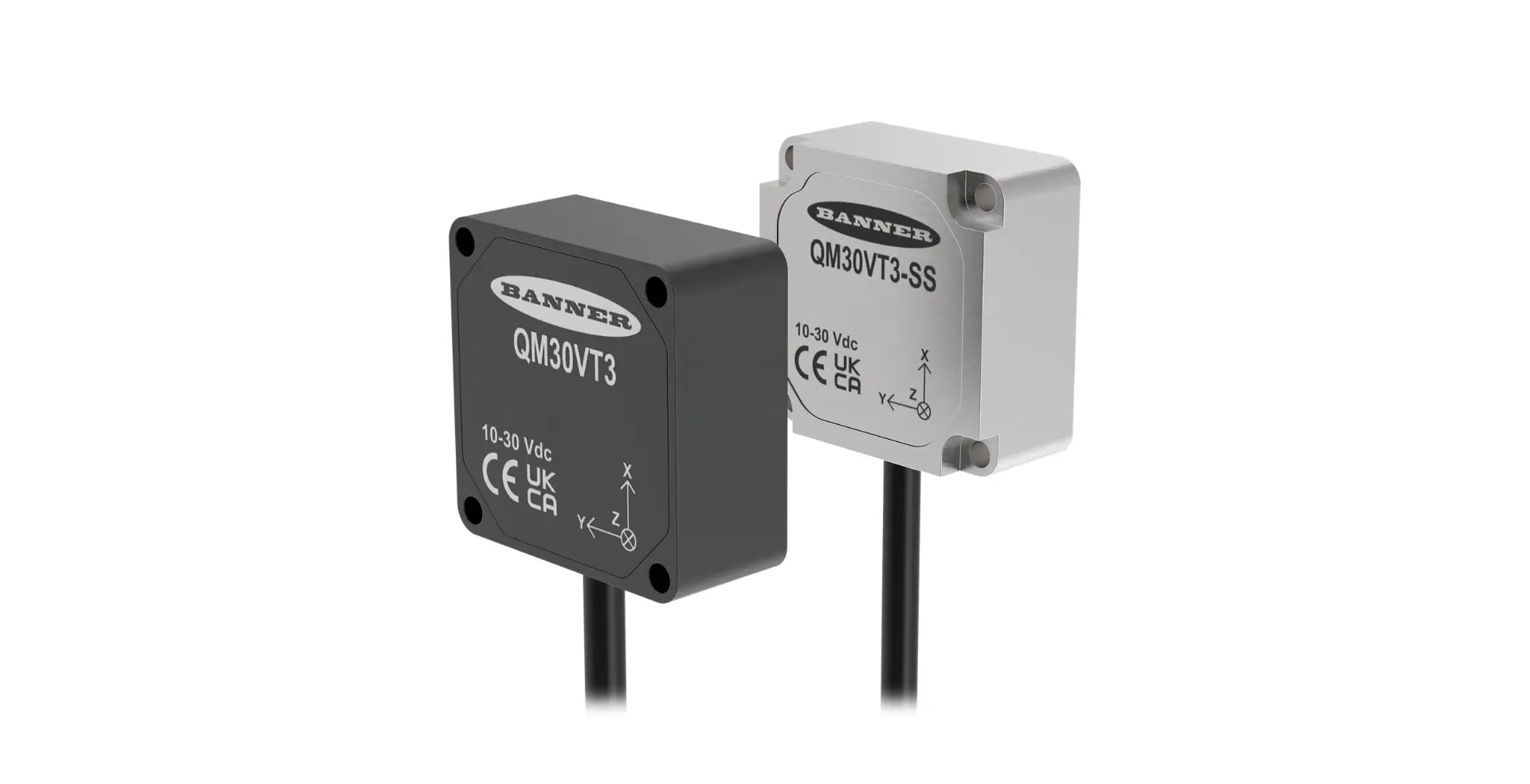

QM30VT3 Series models

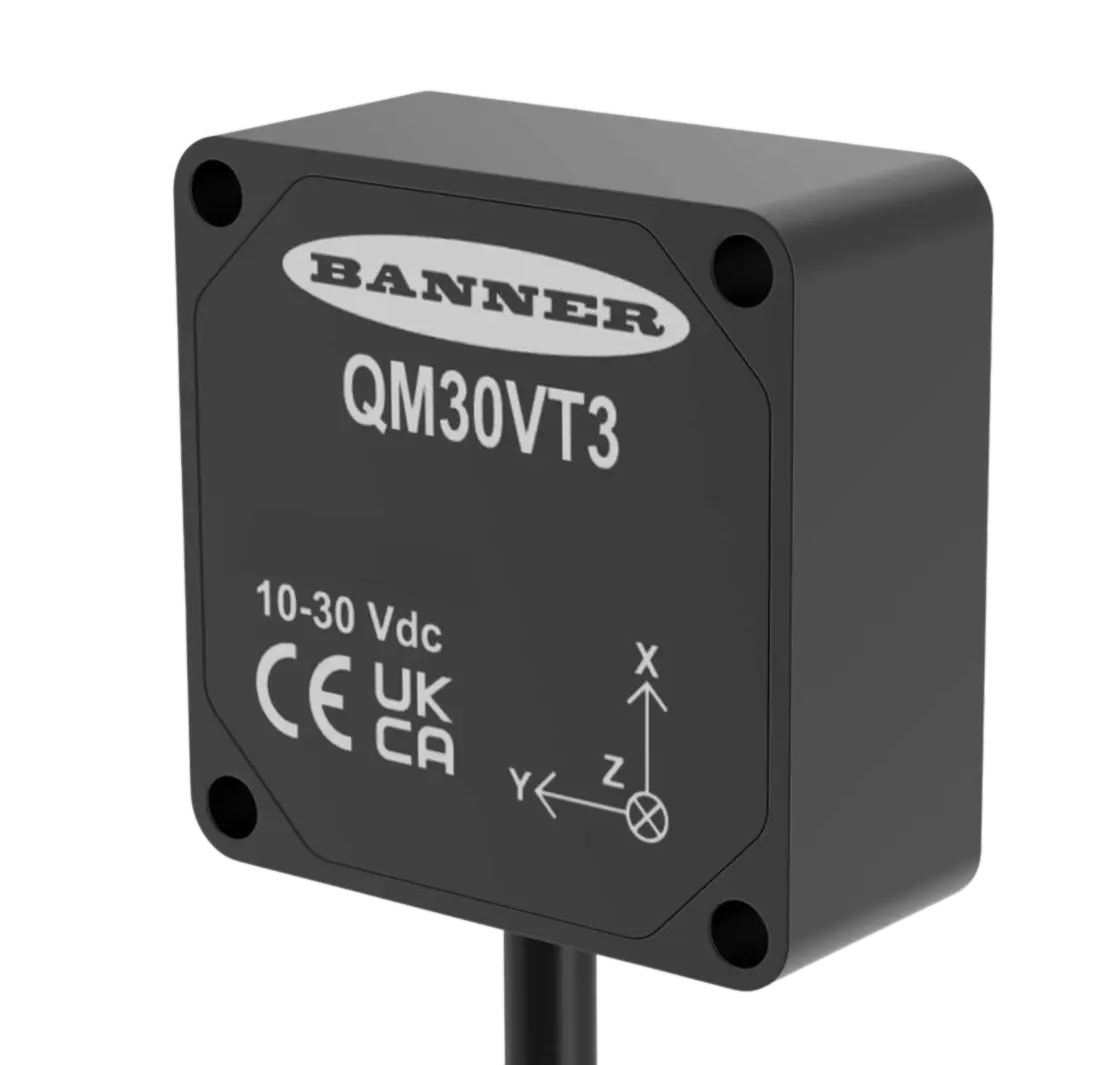

QM30VT3-MQP
- Housing Material: Aluminum (anodized)
- Ingress Protection: IP67
- Chemical Resistance: Moderate
- Washdown Safe: Not suitable for washdowns
- Target Environment: Standard industrial environments
- Common Industries: General manufacturing, utilities

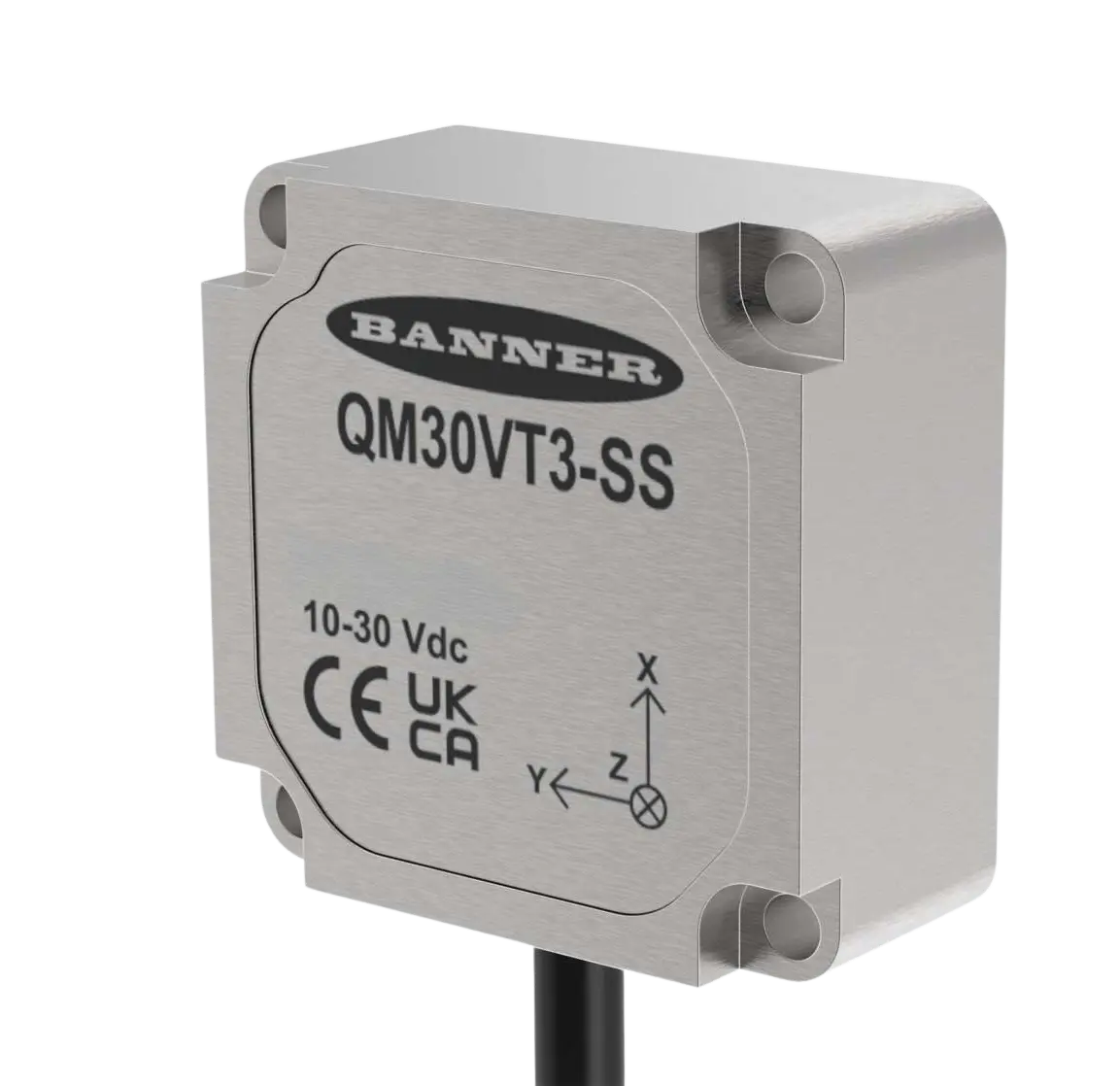

QM30VT3-SS-MQP
415.00 €
- Housing Material: 316L Stainless Stee
- Ingress Protection: IP69K
- Chemical Resistance: High — resistant to cleaning agents, acids
- Washdown Safe: Suitable for high-pressure washdowns
- Target Environment: Hygienic, corrosive, or food-grade settings
- Common Industries: Food & beverage, pharma, chemicals
